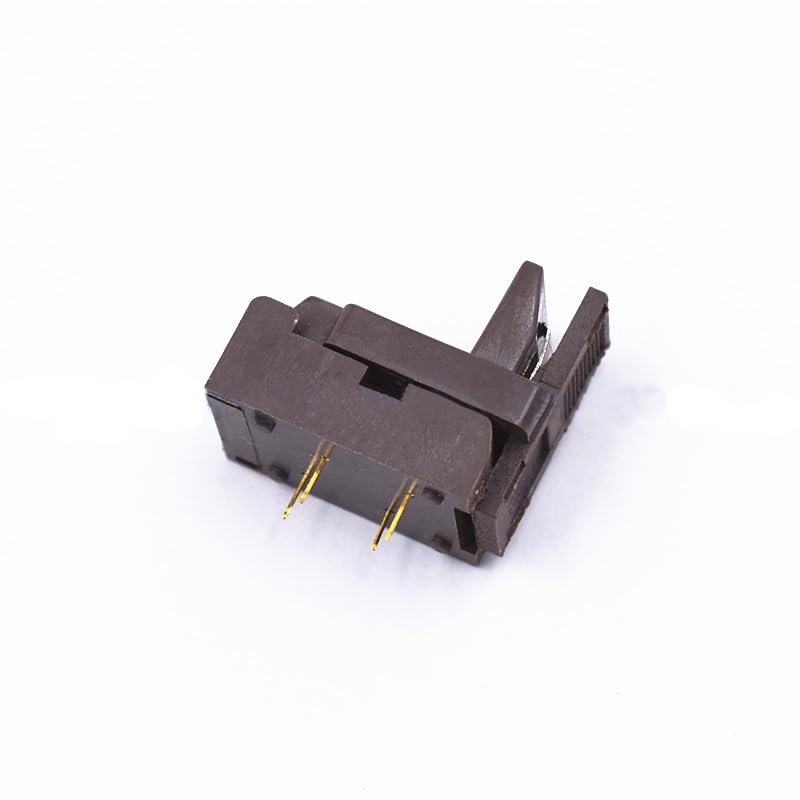

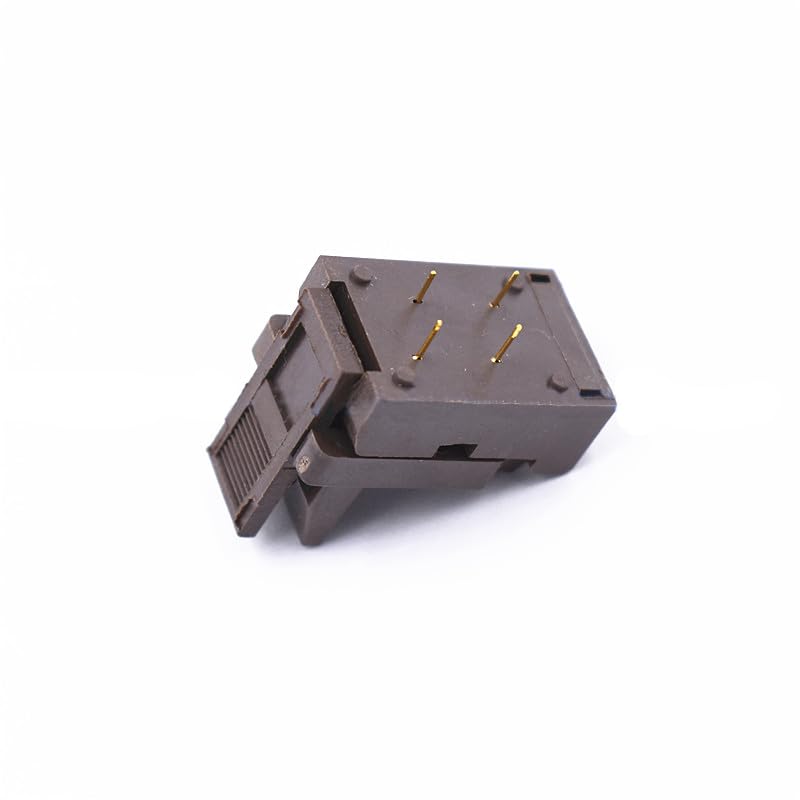

Wiring Connecting Terminals - SMD4 Burn in Socket Clamshell Test Adapter 7050 with 4pin Pitch 5.08mm Connector IC Size 7.5x5.0 mm

SMD4 burn in socket Clamshell test adapter 7050 with 4pin pitch 5.08mm connector IC size 7.5x5.0 mmFeatures:Structure:Open Top/ ClamshellAdopting engineering material for socket structure,strength is high,lifetime is longAdopting Imported BeCu material for socket contactspring,thickening gold-plating surface,impedance issmall,elasticity is good.Material & Performance:socket Body: PEIContacts:Beryllium Copper AlloyContact Plating:Gold over NickelOperation Force:0.5KG min, the more PINs the greater force.Contact Resistance:50m maxDielectric:700V AC for 1 minuteInsulation Resistance:1,000M500V DCMax Current Capacity : 2ATemperature Rating:-55~+175 Life Span:200,000 Times (Mechanical)3. Specification and Dimensiona) Type : 7050 7.0x5.0mm b) Pin Count : 4c) IC Size : 7.0x5.0x1.4mmNOTE : We also accept customized crystal socket base on crystal drawing .so if you do not find a socket it suitable worry it .you can be in touch with us by message .Lead time :

• Structure:Open Top/ Clamshell
• Adopting engineering material for socket structure, strength is high,lifetime is long
• Adopting Imported BeCu material for socket contact
• spring,thickening gold-plating surface,impedance is
• small,elasticity is good.
