Wide View Occupancy Motion Sensor, SWX-421-1, Passive Dual Technology Detection, PIR & Acoustic, Wide View Detection - 120°, 12-24 VDC Low Voltage, Ceiling/Wall/Corner Mounted, Made in USA
Product details
| Management number | 210096881 | Release Date | 2026/04/02 | List Price | $43.22 | Model Number | 210096881 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SENSORWORX wide view and hallway occupancy sensors enable mounting to a wall, corner, junction box, or conduit. This flexibility reduces contractor installation time and provides a secure and clean finished appearance. SENSORWORX products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance. Additionally, these SENSORWORX units are available with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion will be limited.
- Advanced Dual Technology Detection: Sensor combines Passive Infrared (PIR) motion and acoustic detection technologies, providing superior occupancy detection in spaces with obstructions or where people are stationary for long periods of time.
- Low Voltage Operation: Operating at 12-24 VDC, this sensor requires connection to a power/relay pack (not included) to control lighting. This feature enables connection with other low voltage sensors in order to together provide adequate coverage of large or irregular shaped areas. SENSORWORX model SWX-900 or SWX-900-AX are the recommended power / relay packs.
- Wide View 120 Degree Detection: Provides excellent Passive Infrared (PIR) motion coverage from mounting heights between 8-12 ft. Best choice for detection of small and large motions in areas with no obstructions to occupant motion. Detection of small motion out to ~40 feet and large walking motion to ~70 feet. For larger areas, multiple units can be used together with one power/relay pack.

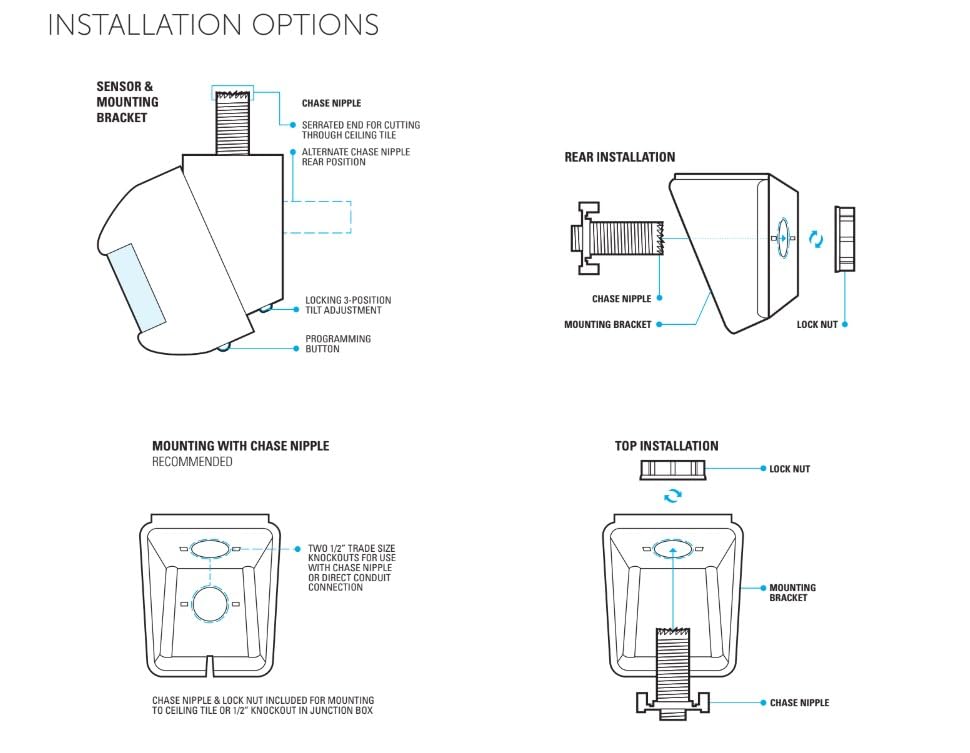

- Versatile Mounting Methods: This sensor's installation bracket enables five contractor-friendly mounting methods. An included chase nipple attachment with an integrated hole saw is perfect for fast and secure installation to drop ceiling tiles or junction boxes. Screw holes are also provided on the mounting bracket for direct attachment to ceilings, corners, or walls.
- Additional Features: Device allows user to easily modify its configuration settings like time delay. Settings are changed via a short push-button sequence that can be done safely in seconds via a push button under the cover.
- Quality and Compliance: Proudly made in the USA, 5-year warranty. UL Listed, RoHS Compliant, BAA Compliant, BABA Compliant, TAA Compliant, Meets ASHRAE 90.1, IECC, and Title 24.
| Color | White |
|---|---|
| Model | SWX-421-1 |
| Terminal | Through Hole |
| Brand Name | SENSORWORX |
| Unit Count | 1.0 Count |
| Item Weight | 6.1 Ounces |
| Switch Type | Sensor |
| Circuit Type | 1-way, 3-way, 4-way |
| Contact Type | Normally Closed |
| Manufacturer | SENSORWORX |
| Material Type | Plastic |
| Mounting Type | Surface Mount |
| Connector Type | Crimp |
| Current Rating | 1 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Motion |
| Item Dimensions | 3.25 x 2.75 x 2.87 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 12 Volts |
| Specification Met | RoHS |
| Included Components | Sensor |
| Number of Positions | 1 |
| Lower Temperature Rating | 32 Degrees Fahrenheit |
| Upper Temperature Rating | 122 Degrees Fahrenheit |
| International Protection Rating | 0-95% Non-Condensing |
