WayPonDEV Link Pi ENC1Pro 4K HDMI Video Encoder Decoder - RTSP/RTMP/HTTP/HLS/H265 Protocols - 4GB DDR4 RAM 8GB eMMC, HDMI 2.0 4K 60fps Input/Output, for Live Stream Broadcasting (Standard Kit)
Product details
| Management number | 215133746 | Release Date | 2026/04/12 | List Price | $124.00 | Model Number | 215133746 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

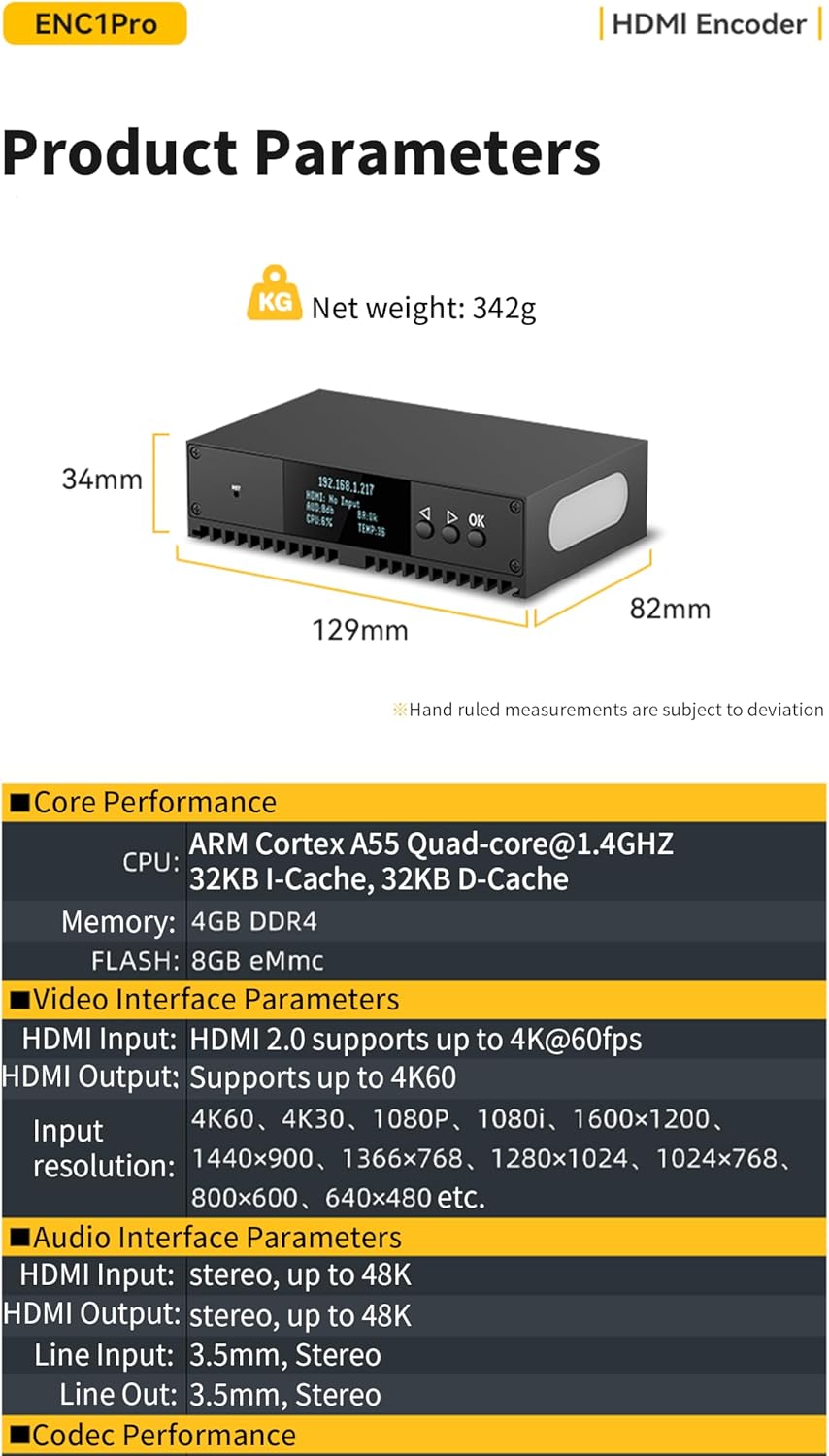

-Specification-Core performance:CPU : ARM Cortex A55 quad core (computing) 1.4GHz (32KB I-Cache，32KB D-Cache) Memory: 4GB DDR4 RAMFlash: 8GB eMMCVideo parameters:HDMI input: HDMI 2.0 supports up to 4K 60fpsHDMI output: up to 4K60Resolution: 4K60、4K30、1080P、720P、1080i、720i、1600×1200、1440×900、1366×768、1280×1024、1024×768、800×600、640×480Encoding format:H.264 Baseline profileH.264 Main profileH.264 High profileH.265 Main profileMJPEG/JPEG BaselineDecoding format: H264, H264, MJPEGEncoding Performance: 4k60x1 / 4k30X2 / 1080P60x4 / 1080P30x8Decoding Performance: 4k60x1 / 4K30x2 / 1080P60x4 / 1080P30x8Frame rate: 1~60 adjustableMultiple reference frames: support SmartP, DualP, maximum bit rate: 160MbpsBit rate control: CBR/VBR/AVBR/FIXQPNetwork Parameters:Wired interface: 10/100/1000M RJ45 network portWIFI: optional external wifi module4G/5G: SupportTransmission protocol: RTSP, RTMP, HTTP, HLS, UDP, unicast, multicastONVIF/SRT/NDI/GB28181/RTMPS: supportBasic parametersPower supply: DC-12V 2APower: ＜15WWorking temperature: O~70CDimensions: 129×104×34 mmWeight: 447g-Package Content-Link Pi ENC1Pro 4K HD Encoder Bundle x1-Technical Support-Please click "WayPonDEV" and ask a question.
- [High Performance CPU] Link Pi ENC1Pro 4K HDMI encoder with ARM Cortex A55 quad core (computing) 1.4GHz (32KB I-Cache，32KB D-Cache) CPU, Memory: 4GB DDR4 RAM, Flash: 8GB eMMC. 10/100M/1000 RJ45 Gigabit Ethernet port. With SFP Interface, supporting SFP standard optical and electrical modules. Supports 4G, 5G and WiFi USB port expansion.
- [Full 4K HD Resolution] Link Pi ENC1Pro 4K HD HDMI encoder decoder support input resolution including 4K60、4K30、1080P、720P、1080i、720i、1600×1200、1440×900、1366×768、1280×1024、1024×768、800×600、640×480 etc. HDMI output: Maximum 4K30 support.
- [Multi Protocol Transmission] Link Pi ENC1Pro 4K HDMI 2.0 encoder support multi-protocol transmission, support RTSP/RTMP/HTTP/HLS/RTMPS. High Compression Rate: H.265 and smartP, it can be used with vMix and other software for secondary editing and publishing. Support for NDI, SRT (support for NDI HX need to buy a license).
- [LINE-IN and LINE-OUT] Link Pi ENC1Pro 4K60 HDMI encoder decoder supports HDMI physical loop out and HDMI software controllable output, LINE-IN and LINE-OUT, as well as USB camera input, providing creators with more possibilities to make live streaming and recording more fun.
- [Mainstream Platforms] Link Pi ENC1Pro 4K HDMI encoder decoder compatible with most Internet video platforms/streaming sites. Built-in web server gives you the power to modify settings such as IP address, bit rate, and fps. ENC1Pro 4K HDMI encoder also support H.264/H.265/MJPEG/JPEG Baseline video encoding format.
- [Multiple Peripheral Support] Link Pi ENC1Pro 4K HDMI Encoder supports laptops, camcorders, network surveillance, DSLR cameras, cell phones, game consoles, mini pc computer, usb cameras and desktop computers, giving users more application scenarios.
- [Wide Range of Applications] Link Pi ENC1Pro 4K HDMI Encoder can achieve wireless transmission, mobile live multi-picture guide switching, Live Game, Online Class Teaching, Group Management, Remote Assistance, Eduation and other programmes, while supporting multi-platform live.
- [SDK Ducument] WIKI: "linkpi.cn/linksdk". Pls feel free to contact us to get the datasheet or any questions after you purchased it. How to contact us? Click WayPonDEV store and ask a question.
| Brand | WayPonDEV |
|---|---|
| Color | Standard Kit |
| Model Name | Link Pi ENC1Pro 4K HDMI Encoder Decoder |
| Resolution | 4k |
| Video Codec | H 264, H 265, JPEG, Mpeg |
| Manufacturer | WayPonDEV |
| Model Number | Link Pi ENC1Pro 4K Encoder |
| BuiltIn Media | Show as picture |
| Connector Type | HDMI, Micro USB |
| Controller Type | Remote Control |
| Mfr Part Number | ENC1Pro |
| Compatible Devices | Laptops, Mini PC, Smartphone, Tablet, Television |
| RAM Memory Installed | 4 GB |
| Warranty Description | WayPonDEV Return Policy: You may return any new computer purchased from WayPonDEV that is "dead on arrival", arrives damaged, or is still in unopened boxes for the refund within 30 days of purchase. WayPonDEV reserves the right to return " Dead on Arrival" and charge a customer fee equal to 15 percent of the product retail price if the customer misrepresents the condition of the product. For any returned computer that is damaged due to customer misuse, is missing parts, or is in an unsellable condition due to customer intervention, the customer will be charged a higher restocking fee based on the condition of the product. WayPonDEV will not accept returns of desktop or notebook computers more than 30 days after receipt of the shipment. New, used, and refurbished products purchased from Marketplace Vendors are subject to each Vendor's return policy. |
| Connectivity Technology | Ethernet, HDMI, USB |
| Memory Storage Capacity | 8 GB |
| Item Dimensions L x W x H | 5.08"L x 4.09"W x 1.38"H |
| Supported Internet Services | YouTube |
