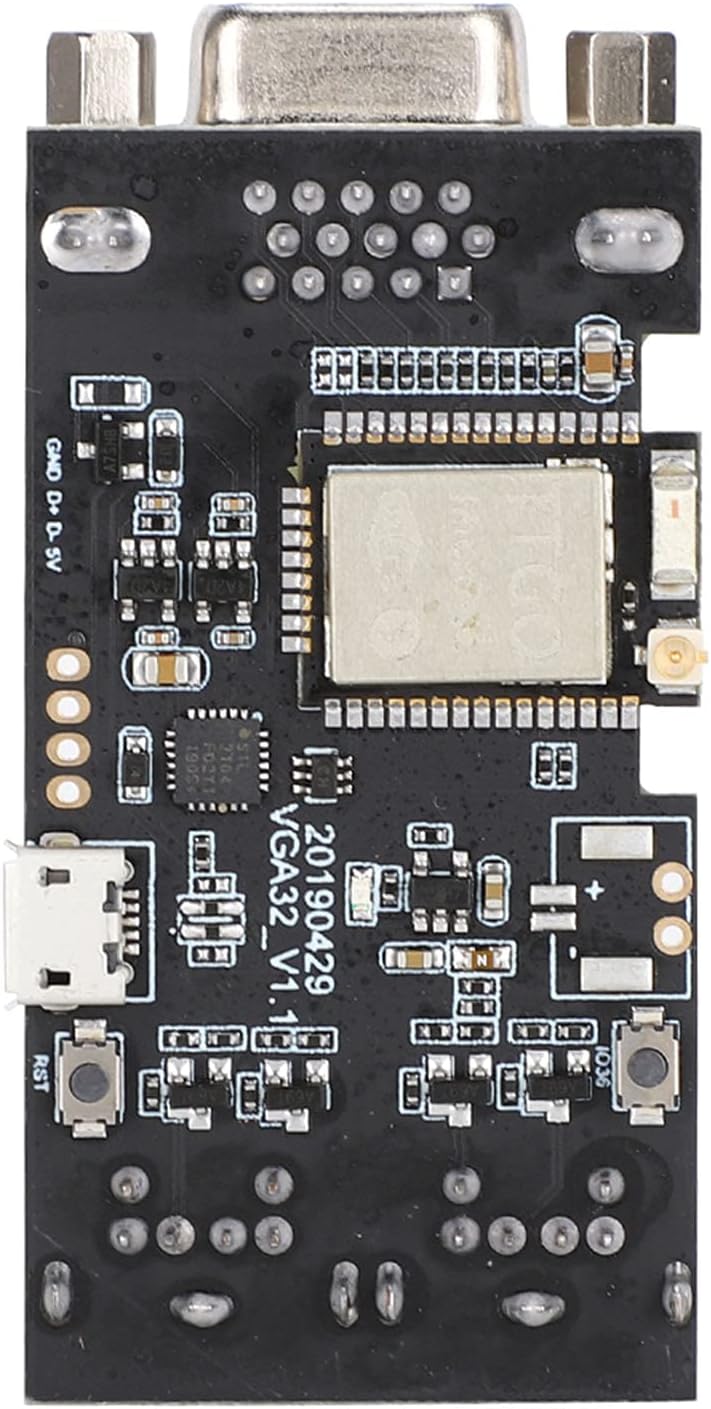

VGA Control Module, VGA32 Control Module for Keyboard, PS/2 Control Module with Micro32 Chipset, Graphics Library Game Engine ANSI/VT Terminal for ESP32
Product details
| Management number | 217004150 | Release Date | 2026/04/19 | List Price | $9.20 | Model Number | 217004150 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications:<,b> Material: PCB Size: Approx. 6.5*3.2*1.6cm ,2.56*1.26*0.63inch Chipset: Micro32 FLASH: QSPI Flash 4MB ,PSRAM 8MB : 520kB : reset , I036 Extended function: VGA , PS ,2 USB To TTL: CP2104 Modular interface: UART , SPI SDIO , I2C LED PWM , TV , PWM , I2S , IRGPIO , Capacitance Touching Sensor , ADC , DACLNA , preamplifier Onboard clock: 40MHz crystal oscillator Working voltage: 2.7 3.6V Working current: Approx. 30mA Sleeping current: 230uA Operating temperature range: 40 85°C Instructions: Standard: FCC ,CE RED ,IC ,TELEC , ,SRRC , Protocol: 802.11b ,g ,n (802.11n , speed up to 150Mbps) A MPDU and A MSDU aggregation , support 0.4uS guard interval Frequency range: 2.4GHz~2.5GHz(2400M 2483.5M) Transmitted power: 22dBm Communication distance: 300m ,984.25ft Bluetooth Instructions: Protocol: Compliant with Bluetooth V4.2BR ,EDR and BLE standards RF: Sense NZIF Receiver Class 1 , Class 2 and Class 3 Transmitter AFH with a sensitivity of 97dBm Audio: CVSD And SBC Audio Software Specification: Mode: Station ,SoftAP ,SoftAP + Station ,P2P Security mechanism: WPA ,WPA2 ,WPA2 Enterprise ,WPS Encryption Type: AES ,RSA ,ECC ,SHA Firmware upgrade: UART download ,OTA (download and write firmware via network ,host) Software development: Support Cloud Server Development ,SDK for User Firmware Development Networking protocol: IPv4 ,IPv6 ,SSL ,UDP ,HTTP ,FTP ,MQTT User Configuration: AT + instruction set , cloud server , for Android ,iOS app OS: Suitable for FreeRTOS Package list:<,b> 1 x VGA32 Control Module
- VGA Module - Modular interface: UART, SPI SDIO, I2C LED PWM, TV, PWM, I2S, IRGPIO, Capacitor, Touch, Sensor, ADC, DACLNA, Preamplifier.
- Control Module - supports FCC/CE-RED/IC/TELEC//SRRC/.
- Control Module - The communication distance is up to 300 meters and the power is 22dBm.
- VGA Control Module - Compliant with Bluetooth V4.2BR / EDR and BLE standards, sensitivity is -97dBm.
- Keyboard Control Module - NZIF Receiver Class-1, Class-2 and Class-3 Transmitter AFH.
| Brand | VBESTLIFE |
|---|---|
| Platform | Windows |
| Model Name | VGA32 |
| Manufacturer | Vbestlife |
| Model Number | VGA32 |
| Number of Ports | 15 |
| Total Usb Ports | 15 |
| Processor Socket | LGA 1200 |
| Total SATA Ports | 2 |
| Compatible Devices | Television, Laptop, Monitor |
| RAM Memory Technology | DRAM |
| Memory Slots Available | 2 |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 4 MB |
| Ram Memory Maximum Size | 8 MB |
| Item Dimensions L x W x H | 2.56"L x 2.56"W x 0.63"H |
| Main Power Connector Type | 20-Pin |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | SATA 3 |
