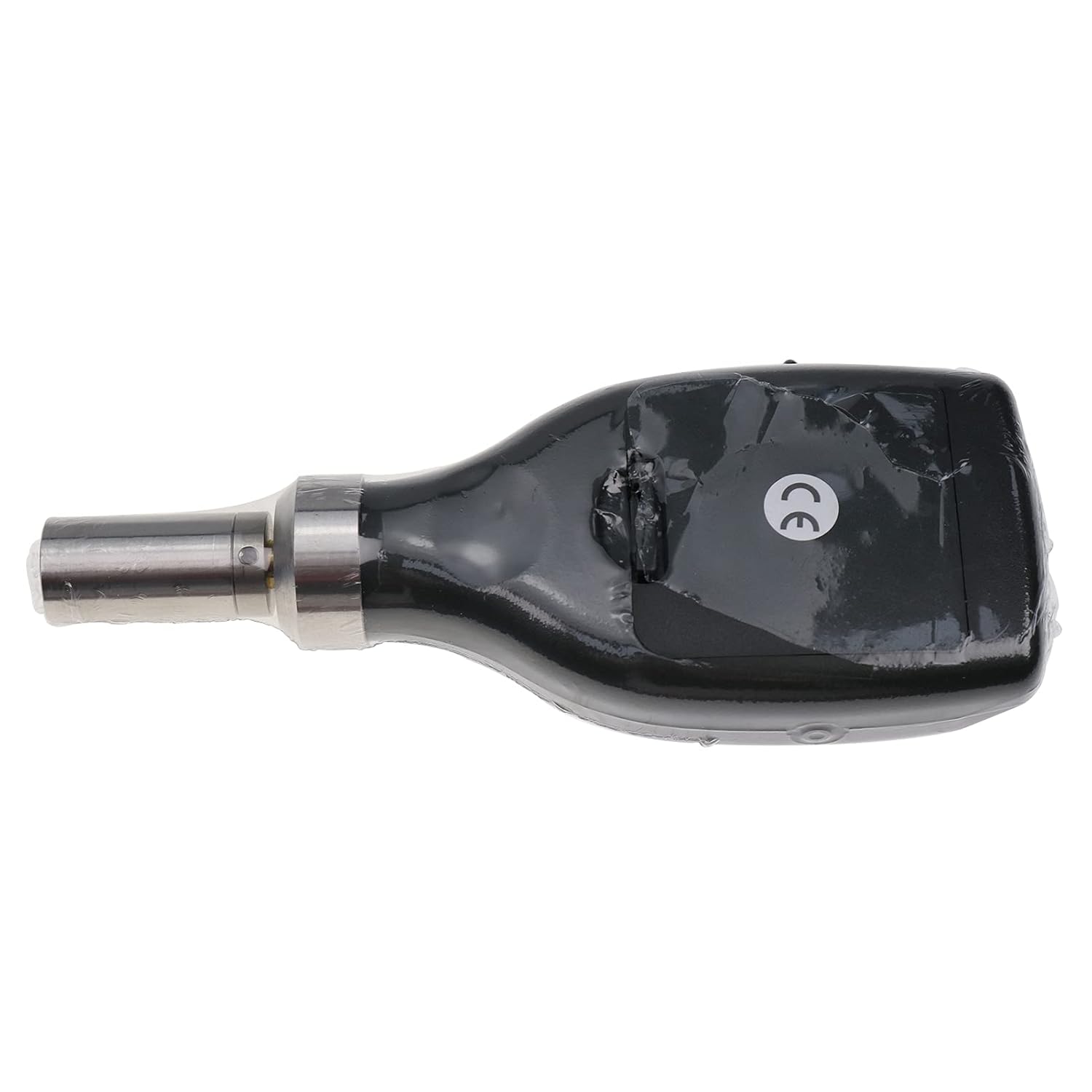

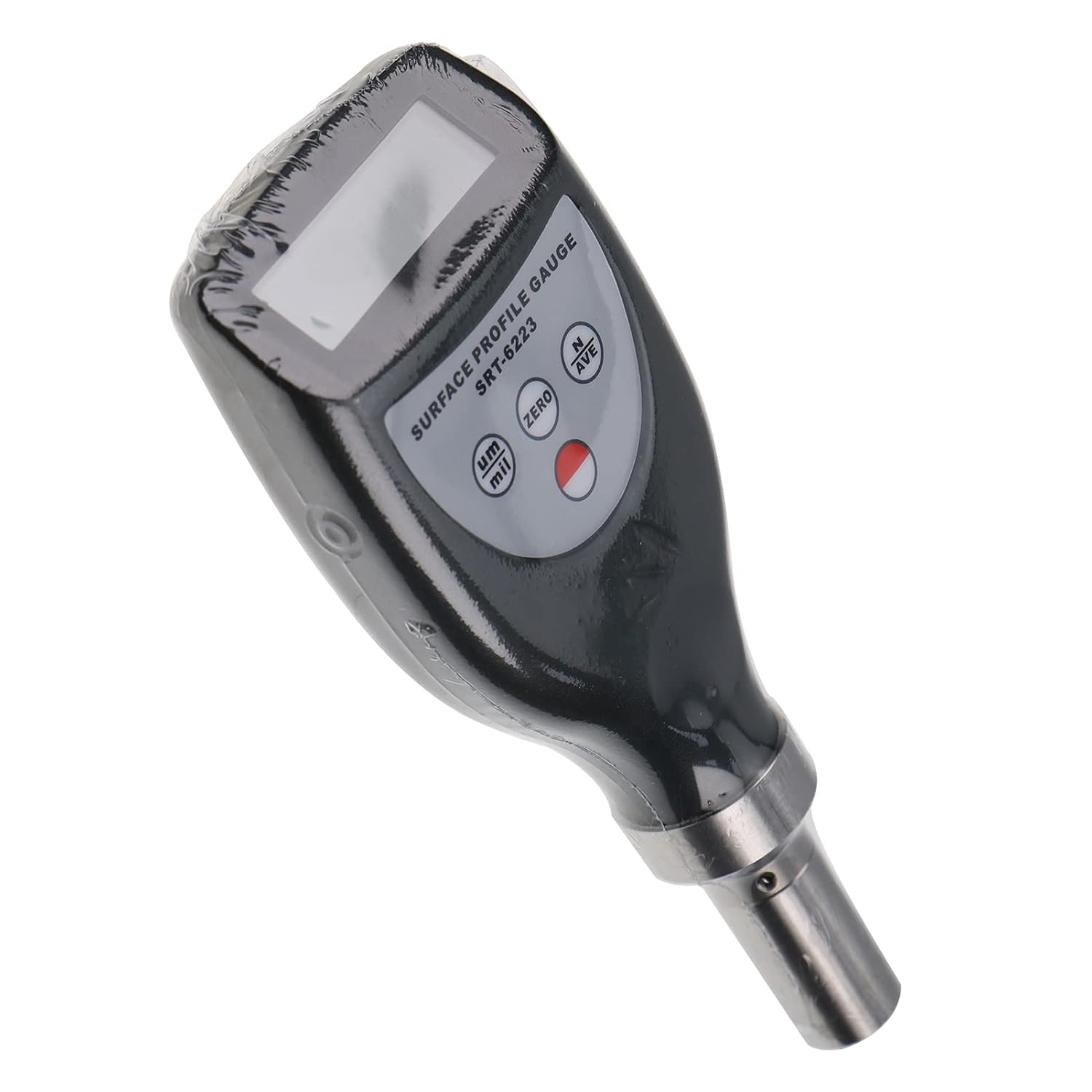

Surface Profile Gauge SRT-6223 Handheld Roughness Tester Meter for Measure Blast Cleaned Surfaces Range 0~800 µm

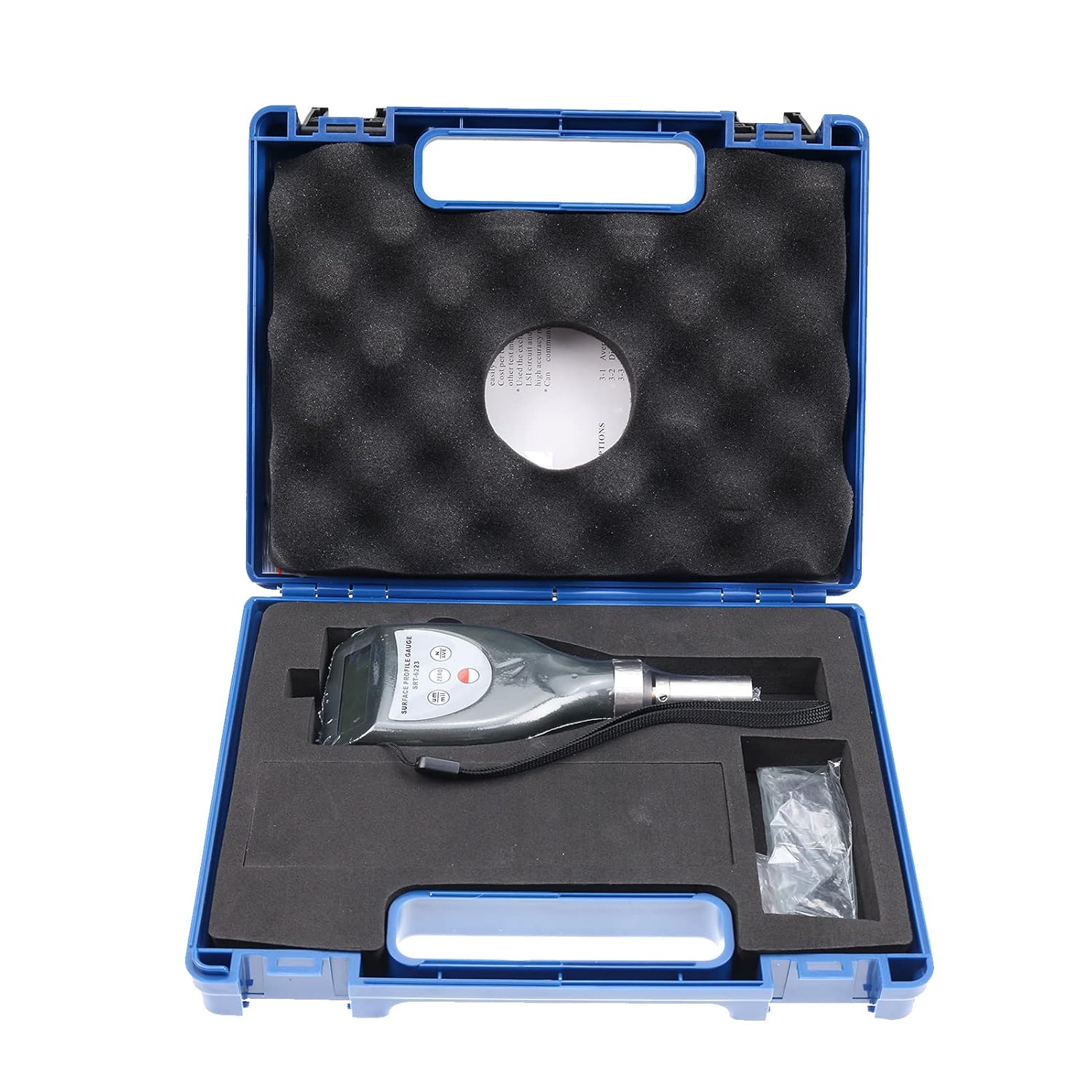

Applications This Digital Surface Profile Gauge is a handheld gauge for fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surfaces. It is widely used in field of blast cleaned surface measurement. Specifications Display ：LCD Range ：0~800 µm/29.5 mils Accuracy：±5%or±5 µm,(whichever is the greater) Resolution：0.1 µm/1 µm ；0.1mils Principle：Inductance Type Operating：Temperature:0~50ºC Conditions：Humidity:<80%RH Power Supply：4x1.5V AAA(UM-4)Battery Dimensions：162x65x28 mm Weight：280g Package 1 x Main Unit 1 x Standard Sample Plate 1 x Carrying Case ( B04 ) 1 x Operation Manual

• For fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surface. Widely used in field of blast cleaned surface measurement.
• Surface Profile Gauge meets the standards of ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI-63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.
• The tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.
• The roughness tester Metric/Imperial Conversion and average calculation function.
• Small in size, light in weight and easy to use.
• Use USB/RS-232 data output to connect with PC.
