Signal Generator Counter, TSG-17 RF/AM High Frequency Signal Generator RF(Radio-Frequency) High Accuracy Signal Generator 100kHz-150MH

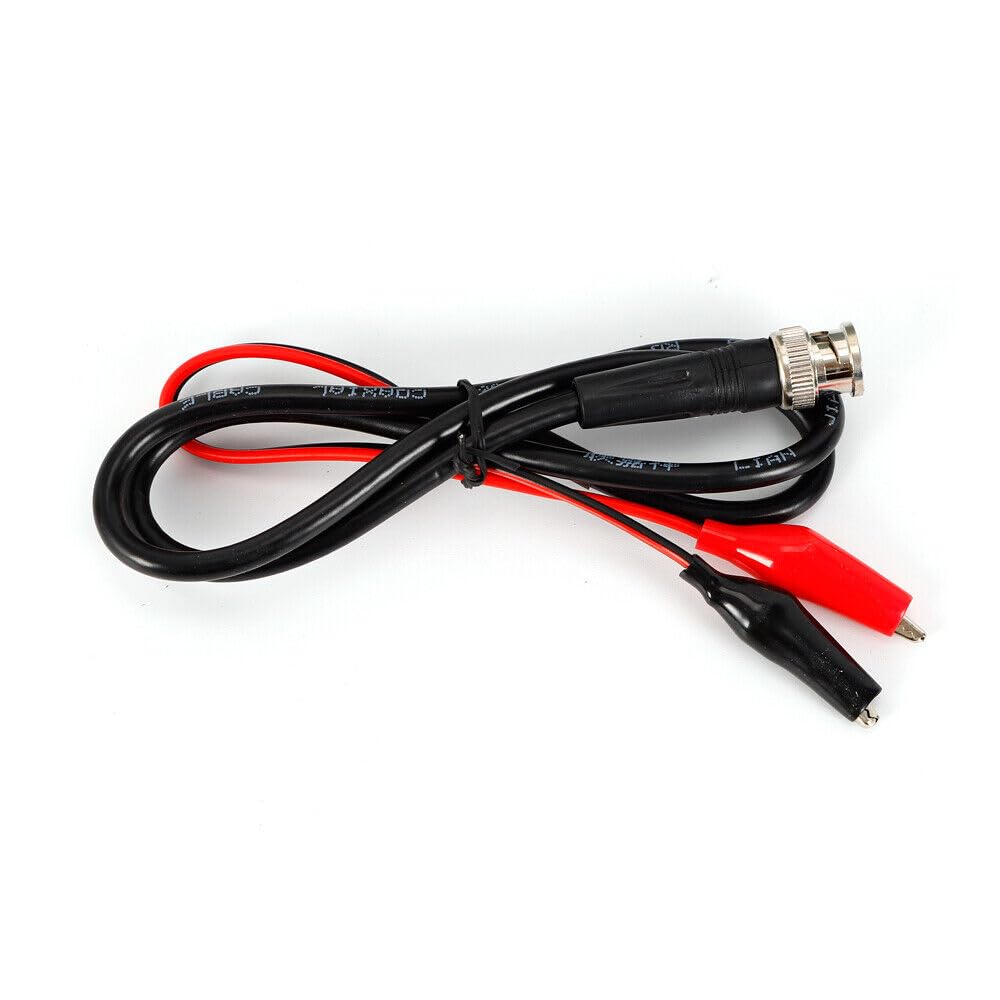

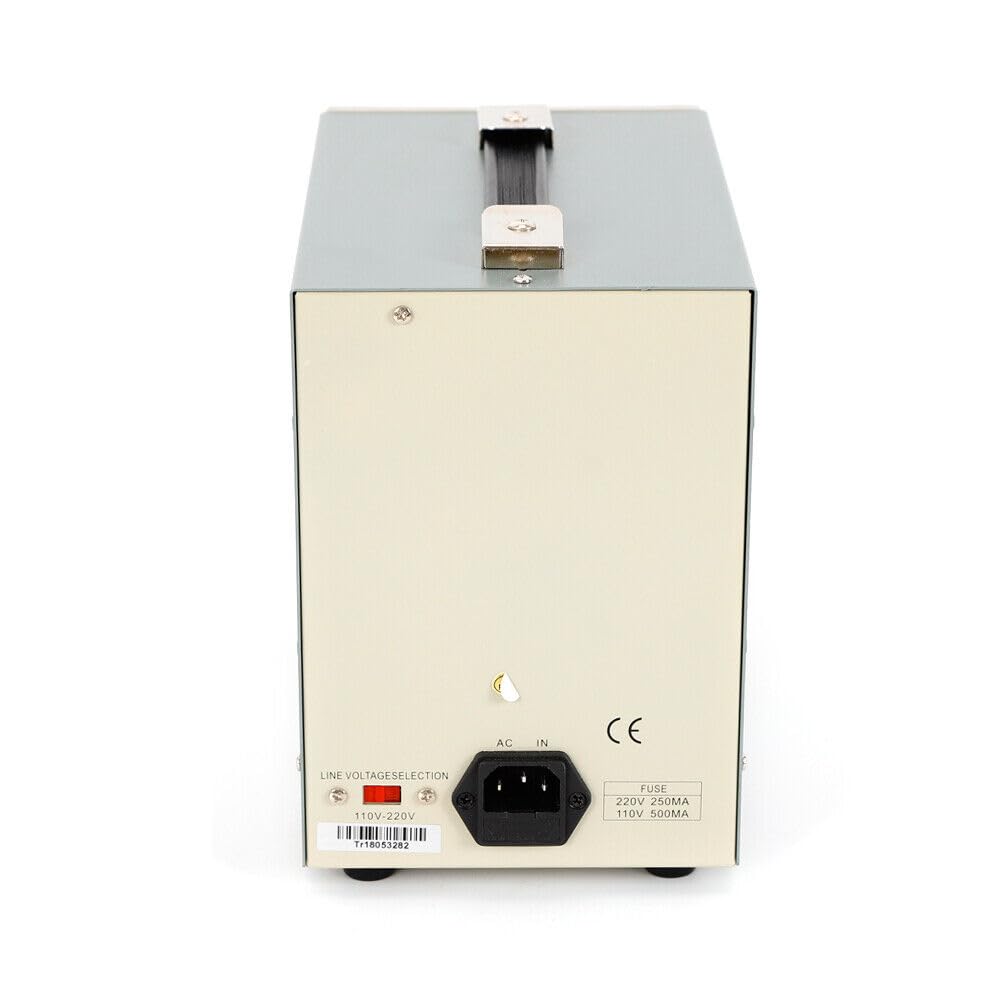

Specifications:- Frequency ranges:A: 100 KHz to 300 KHzB: 300 KHz to 1MHzC: 1MHz to 3.2MHzD: 3MHz to 10MHzE: 10MHz to 35MHzF: 32MHz to 150MHz- Frequency range: 100 KHz to 150MHz (3 harmonic wave up to 450MHz)- Frequency accuracy: Over±5%- Output waveform: RF/AM signal waveform- Output impedance: 600Ω- Radio frequency output: Over 100Mv rms (when frequency ≤ 35MHz)- Level control: 1mV to100mV- External modulation: 150Hz to 1.5 KHz. Amplitude from 0 to 30% adjustable.- Norml operation: 50Hz to 20 KHz for any setting.- Temperature/Humidity: 10 oC to 35 oC/with 85%RH- Power supply: 110V+/-10%, 50Hz/60Hz- Dimensions: 239*140*200mm- Weight: about 2.5kgPackage included:- 1x 110V Signal Generator- 1x Power Cord- 1x Clip cable- 1x Instruction manual

• Our low frequency signal generator uses reliable circuitry to ensure high stability and accuracy. Output wave form: sine and amplitude modulation wave.
• The signal generator is made of high-quality materials, durable and wear-resistant for long-term use. RF/AM output, max, intensity≥10VP-P.
• Complete technologies of Japanese electrical equipment and assembly with imported components ensure minimum accuracy deviation.
• Signal frequency: 100 kHz to 150MHz, 3 harmonic up to 450MHz.
• External modulation signal can be set between 50Hz to 20 KHz.
