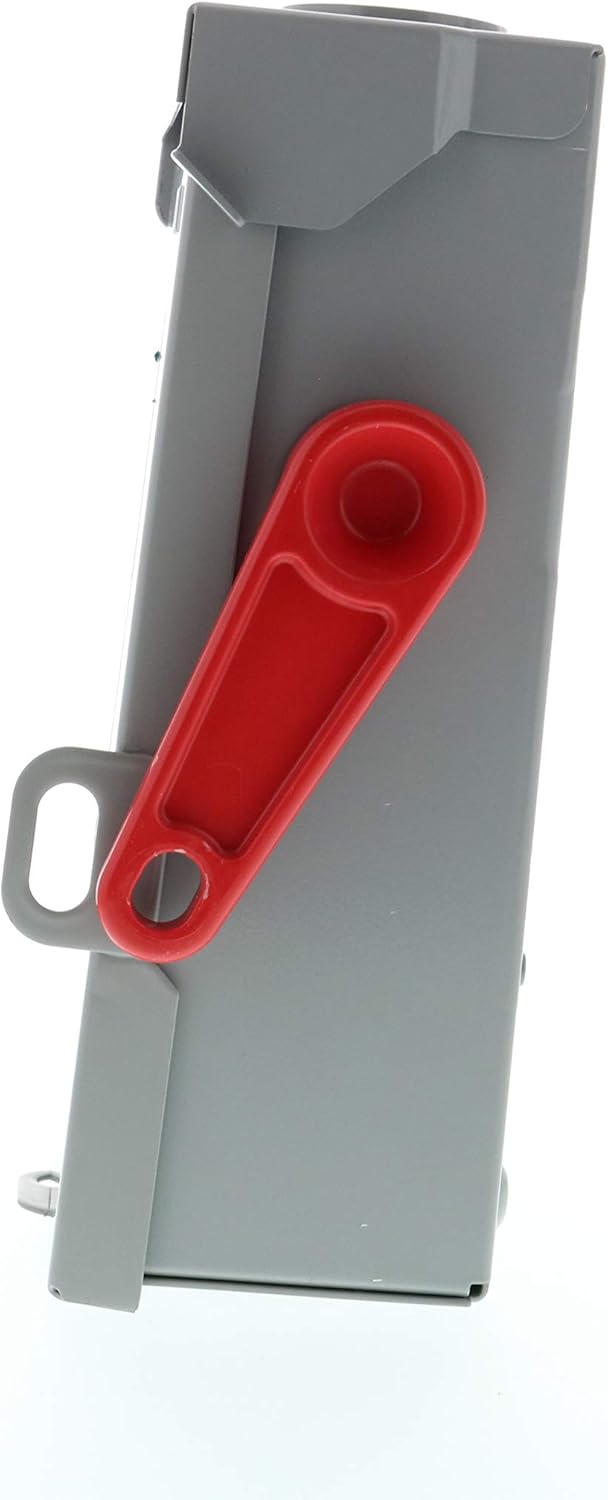

SIEMENS 2P 30A 240V General Duty Safety Switch Outdoor, Fusible, ANSI 61 Grey
Product details
| Management number | 210093227 | Release Date | 2026/04/02 | List Price | $24.28 | Model Number | 210093227 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Siemens General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240V AC or less where the available fault current is less than 100, 000A when used with Class R or T fuses, or 10, 000A max when used with Class H fuses. All switches are provided with imbedded "ON" and "OFF" indicators and padlocking provisions on the handle and door. All switches are UL listed. Fuses not included on fusible device. Use HA type hubs if required.
- 120/240V, 1 and 3 phase, 3 wire, fusible safety switch
- Visible blade, double-break switch action
- Oversized lugs for easy wire termination
- Durable ON/OFF indication imbedded in steel door eliminates risk of scratching or fading
- Compact size for easy handling and efficient space utilization
| Color | ANSI 61 Grey |
|---|---|
| Voltage | 240 Volts |
| Wattage | 7.2 KW |
| Material | GF221NRA |
| Item Weight | 3 pounds |
| Part Number | GF221NRA |
| Switch Type | 1-Phase Parallel, 3-Phase Series |
| Manufacturer | SIEMENS |
| Switch Style | General Duty Switch |
| Certification | UL |
| Mounting Type | Door Mount |
| Item model number | GF221NRA |
| Batteries Required | No |
| Product Dimensions | 5.44 x 3.96 x 8.56 inches |
| Included Components | safety switch |
| Item Package Quantity | 1 |
