PENGLIN 10PCS Ethercon Rj45 Chassis Socket, NE8FDP Ethercon Pass Through Connector, D Series Cat5 RJ45 Panel-Mount Socket

RJ45 pass through socket, D-type metal flange with lock and installation screw, this DATA interface series is reinforced and lockable. RJ45 connection system, optimized design, widely used in audio, video, and optoelectronic networks. Its base design is based on industrial standards Panel aperture construction. Characteristics and performance ·Can accommodate any standard RJ45 plug ·Secure locking system ·Optional front panel installation and rear panel installation ·Cat 5e compliant according to TIA/EIA 568B and ISO/IEC 11801 standards Technical Information： Female and male: female Electrical parameters Contact resistance: <10 Dielectric strength: in kVdc1 Frequency range: 1 - 100 in MHz Insulation impedance : > 0.5 in GΩ Rated current per contact: 1:5 in A Rated voltage: 50 in V Transmission performance ：CAT 5e Compliance standards ：TIA/EIA 586B ： IEC11801 Mechanical parameters： Insertion pressure: ≤ 20 N Withdrawal pressure ：≤ 20 N Service life: >1000 in terms of number of connections Panel thickness ：max 4 in mm Locking device ： Key lock Base shape ：D-type Material: Contact plating ： 0.2 μm Au over Ni plating Contact: Bronze (CuSn8) Insulator: PBTP 15 % GR Housing: Zinc diecast (ZnAl4Cu1) Case plating : Nickel Environmentally friendly Flammability: UL 94 V-0 Temperature range: -30 °C to +80 °C in °C"""" Package include： 10 pcs RJ45 pass through socket

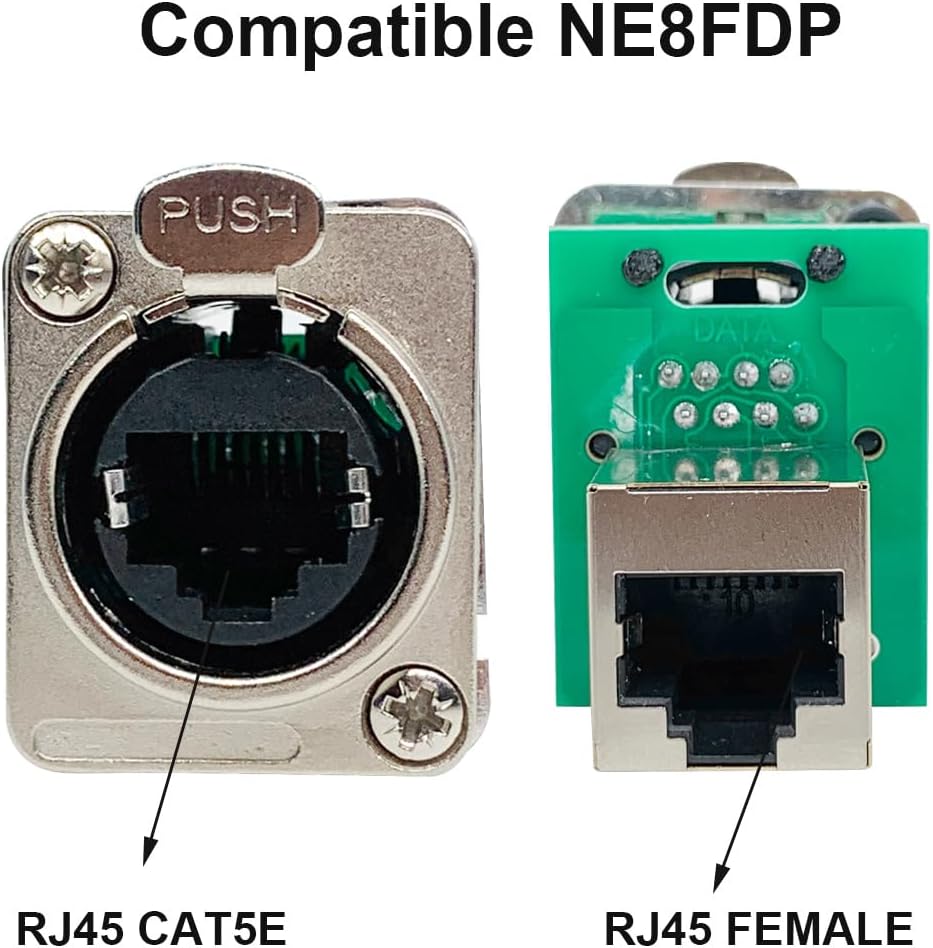

• NE8FDP Ethercon RJ45 Feed Through Jacks, It is based on TIA/EIA 568B and ISO/IEC 11801 standards. Provide network transmission performance of cat 5e.
• RJ45 pass through socket - - D-type metal flange with secure locking system and installation screws, this DATA interface series is reinforced and lockable.
• RJ45 connection system - Can accommodate any standard RJ45 plug, widely used in audio, video, and optoelectronic networks.

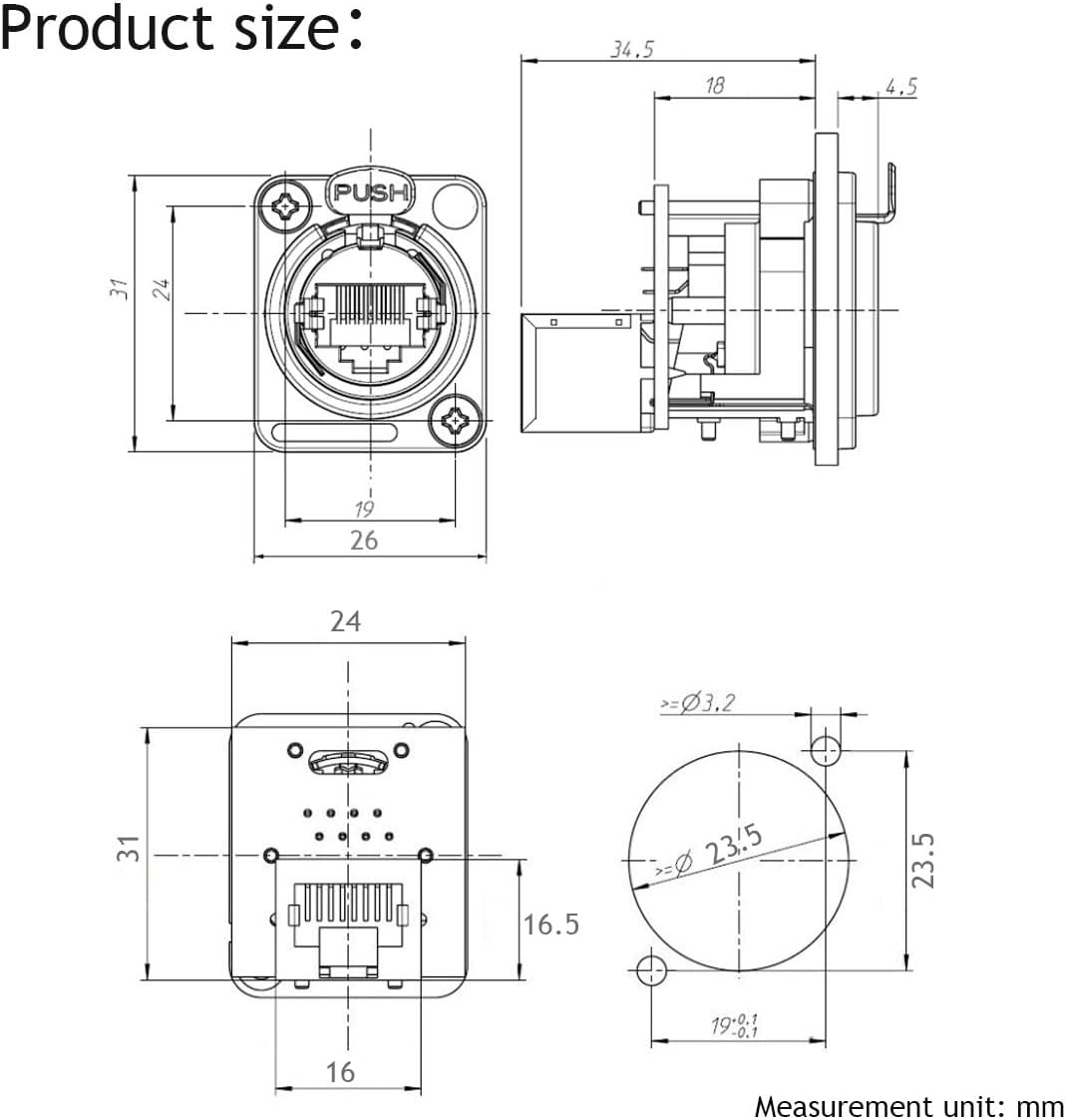

• Easy to install -- Standard d-type installation size,It can be installed from both the front and back of the panel. You can install according to your own needs without any installation tools, just tighten the screws and insert a standard RJ45 network cable to connect to the network.
• Practicality and durability -- Its base design is based on industrial standard panel aperture, which can be suitable for various installation scenarios. The Bronze (CuSn8) contacts ensure the stability of network connections, and the Zinc diecast (ZnAl4Cu1) casing is sturdy and not easily deformed. The PBTP 15% GR insulation material ensures safety during use.
