PCIe to M.2 with PoE Ethernet Power Supply HAT for Raspberry Pi 5, Support NVMe Protocol M.2 Solid State Drive in 2230/2242 Size, IEEE 802.3af/at PoE Network Standard, 5V 5A Power Output

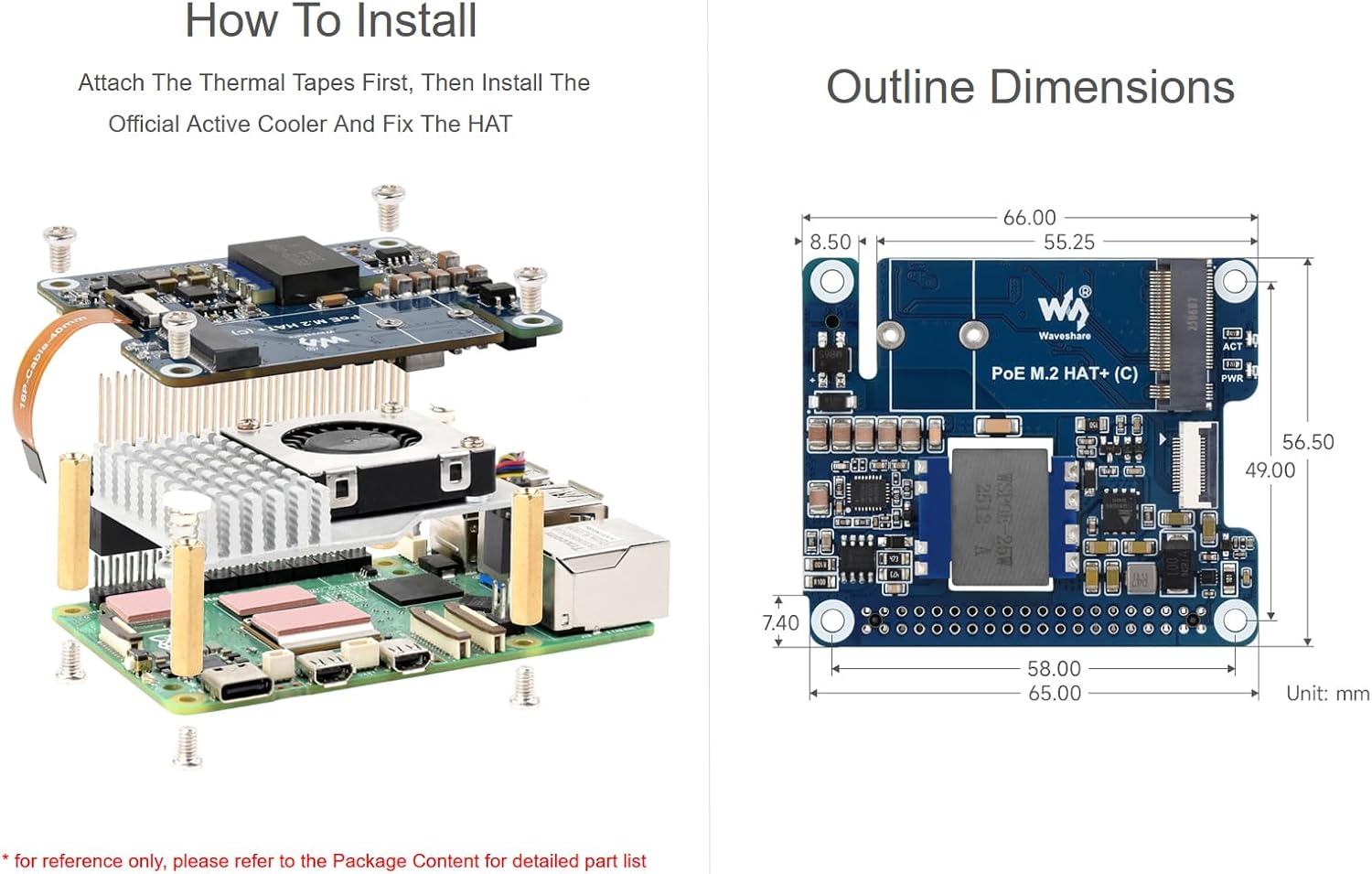

Overview PoE M.2 HAT+ (C) is an expansion board for Raspberry Pi 5 that combines two functions: Ethernet Power Supply (PoE) and PCIE to M.2 conversion, supporting the IEEE 802.3af/at network standard. It supports M.2 NVMe hard drives in 2230 and 2242 sizes, and supports S-S-D boot for the Raspberry Pi Features --Standard Raspberry Pi 40pin GPIO extension header, supports Raspberry Pi 5 (not applicable to PI4B and PI3B) --Supports Power over Ethernet (PoE), supports IEEE 802.3af/at PoE network standard --Adopts fully isolated Switch Mode Power Supply (SMPS) mode power --Supports NVMe protocol M.2 interface hard drives, featuring high-speed read and write, and high work efficiency --PCI-E×1 Gen2 or Gen3 mode --Only supports PI5B --Compatible with M.2 hard drives of 2230 / 2242 sizes --Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible --POE planar transformer Specifications PoE input voltage: 37V ~ 57V DC input PoE-GPIO pin header: 5V 5A (MAX) Network standard: Supports IEEE 802.3af/at PoE Product size: 56.5 x 66.0 (mm) Package Content PoE M.2 HAT+ (C) × 1 2*2PIN header × 1 2*20PIN header × 1 Screws pack × 1 S-S-D mounting screw × 1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

• PCIe to M.2 with PoE HAT (C) for Raspberry Pi 5, supports IEEE 802.3af/at network standard, adapter for NVMe protocol M.2 Solid State Drive, high-speed reading/Writing
• PoE M.2 HAT+ (C) expansion board based on 16PIN PCIe interface of Raspberry Pi 5. Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs
• NVMe Drive Protocol support, compatible with 2230 / 2242 size M.2 Solid State Drive. Supports Gen2 and Gen3 modes, Supports booting PI5 from Solid State Drive
• Power Over Ethernet, providing both network connection and power supply for your Raspberry Pi in one cable. 37V ~ 57V DC in PoE power input, 5V 5A (MAX) Power output

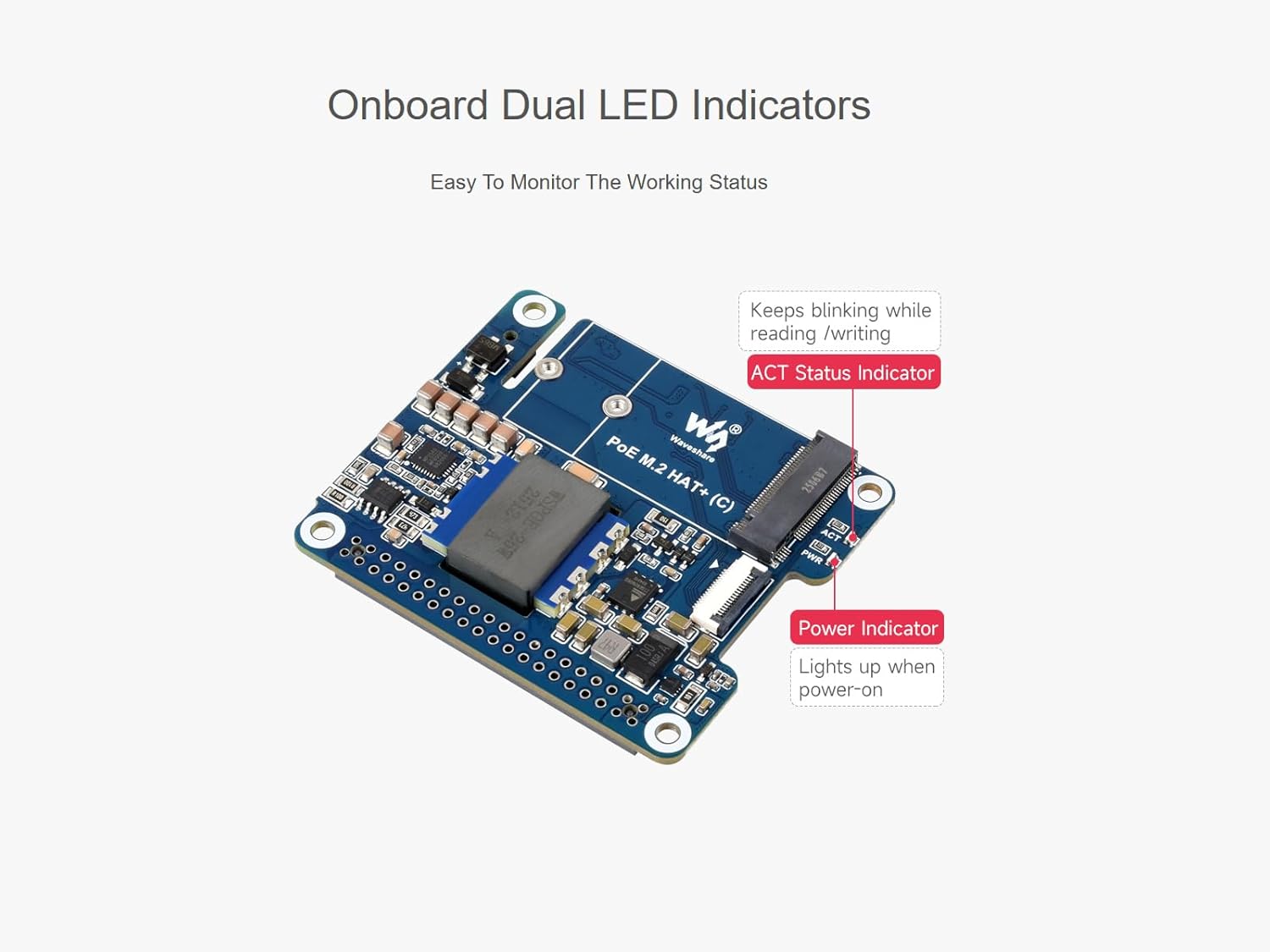

• Onboard Dual LED Indicators, Easy to monitor the Working Status
