OBD2 Breakout Box Professional OBDII Breakout Box Protocol/Power/Ground Detector Breakout Box for Power the Car 16-Pin CAN Breakout Box Automotive with 4mm Banana Jack,18inch Cable,4 Sets Jumper Wires
Product details
| Management number | 212839964 | Release Date | 2026/04/12 | List Price | $14.00 | Model Number | 212839964 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

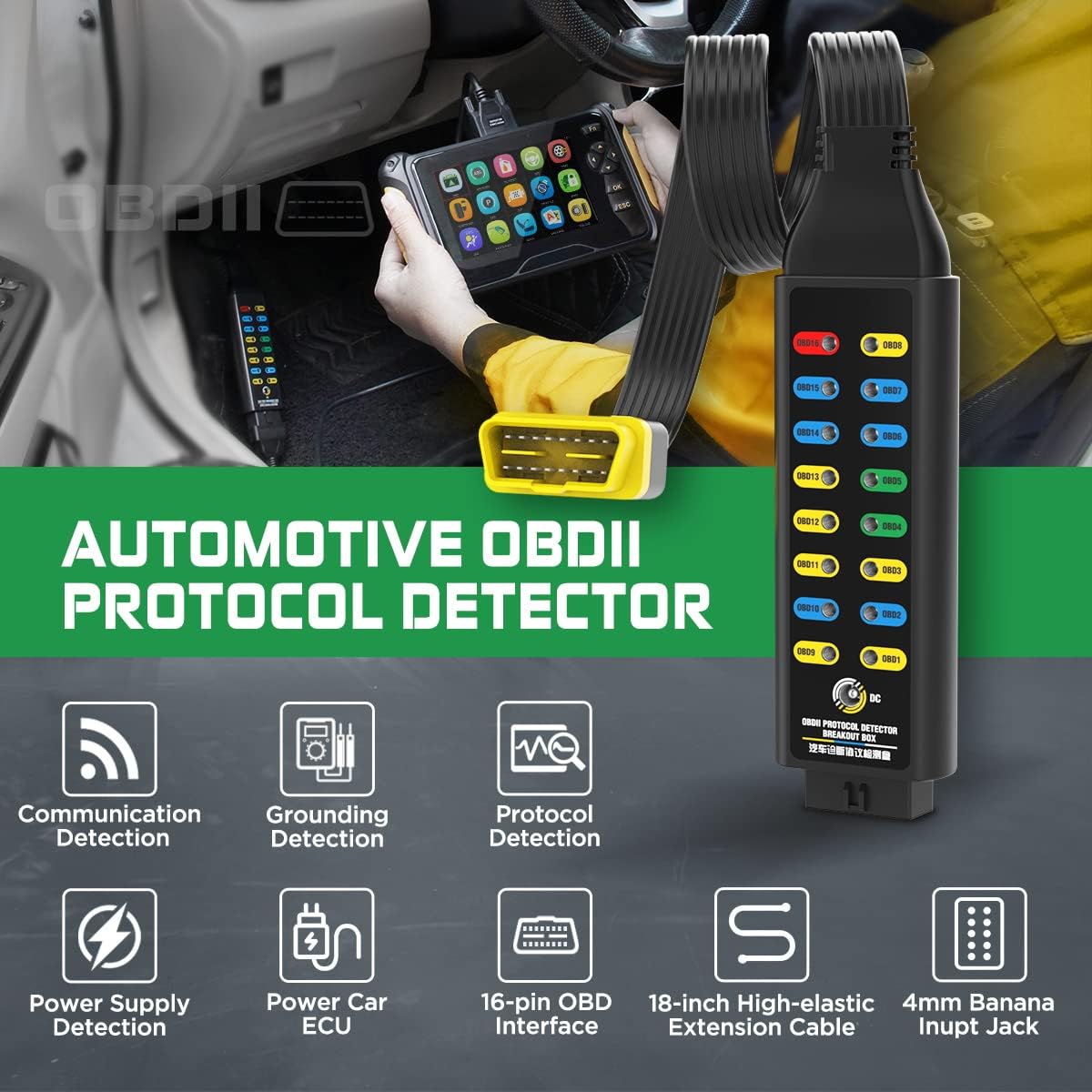

- 【Professional OBD2 Breakout Box】This OBD2 breakout box is a straight-through OBDII data bus line tester, which offers easy access to the vehicle OBDII system for monitoring signals of protocol, power, and grounds conveniently and safely. OBDII protocol detector can be connected to OBDII code reader or a multimeter or a oscilloscope for further testing once unconfirmed signals detected. OBDII breakout box is perfect for people who likes diagnosing and modifying cars or trucks.
- 【OBD2 Communication & Power Supply & Grounding Detection】Breakout box can help you measure whether the communication, power supply, and grounding of the vehicle OBDII interface are normal by connecting scanning tools. It not only detects car signals, but also some diesel signals, such as pins 2/6/7/10/14/15 can measure K-line, L-line, CAN bus and PWM protocol lines. Pins 4 and 5 can check whether vehicle body/signal grounding is normal, and pin 16 can check whether the power supply is normal.

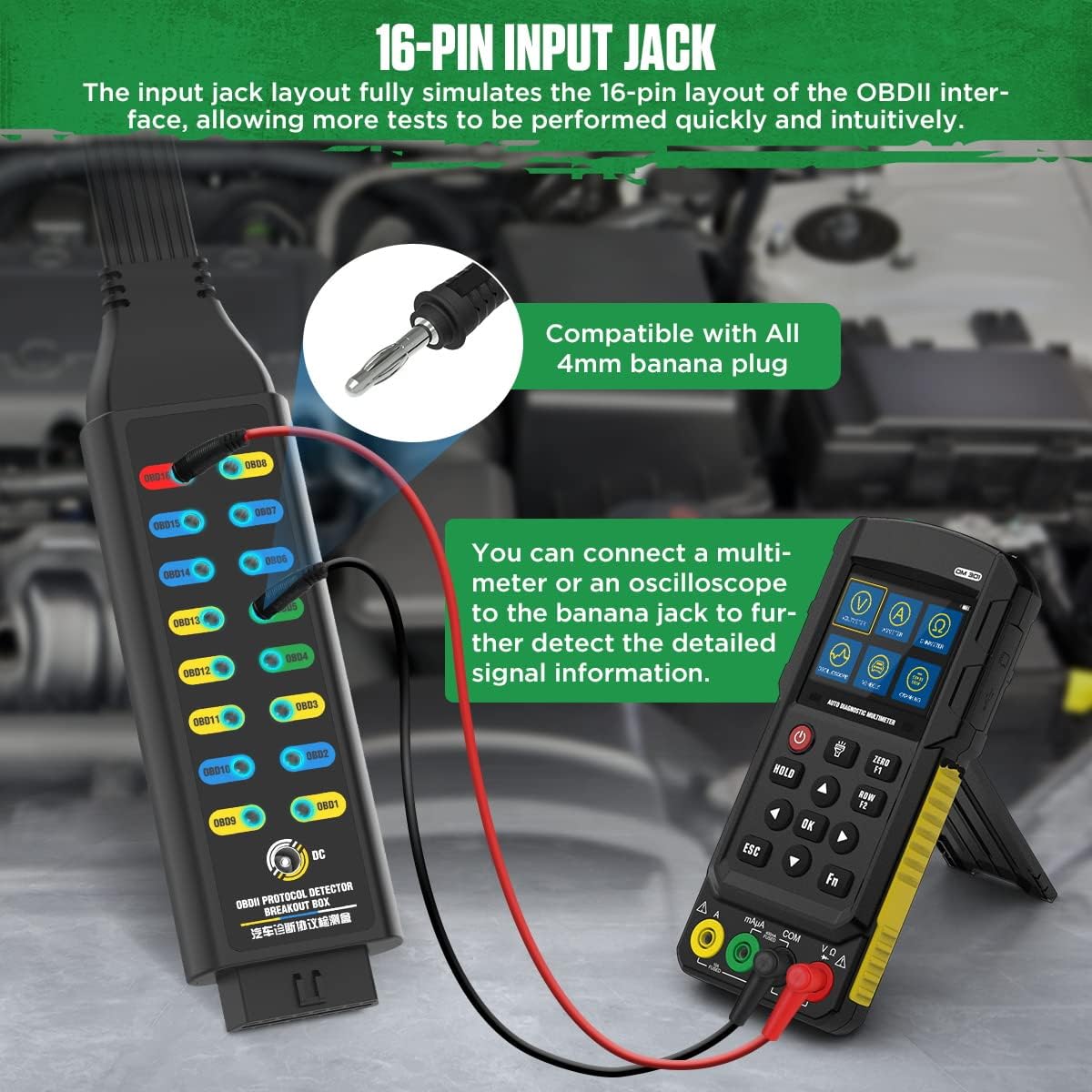

- 【16-Pin Jack Layout Design for All 4mm Banana Plug】The input jack layout of OBDII breakout box fully simulates the 16-pin layout of the OBDII interface, allowing more tests to be performed quickly and intuitively. You can easily access each of the 16 pins while OBD2 scanner communicating with vehicles.The built-in input jack can be connected to all types of 4mm banana plug. You can connect a multimeter or an oscilloscope to the banana jack to further detect the detailed signal information.
- 【Power the Car ECU when Replacing Battery】Our OBD2 breakout box comes with a DC power jack and a 12V battery alligator clip with 5FT cable. Before replacing the battery, use the breakout box automotive to connect the DC 8V-30V auxiliary power supply to sustain the power supply to the vehicle. Maintaining the vehicle's power supply prevents data loss and audio lock-up or malfunctions caused by a lack of power in the ECU control module.
- 【High Elasticity & High Flexibility 18-inch Extension Cable & 4 Sets of Universal Jumper Wires】OBDII breakout box is equipped with a 18-inch extension cable, which is made of elastic thermoplastic TPU material with high elasticity, high strength and high flexibility. OBDII extension cable adopts multi-thread connection data technology,which makes connection faster and smoother.It also is equipped with 4 sets of universal jumper wires with different plugs in 4 colors, which can be wired flexibly.
- 【3-Year Product Service】We aim at trying our best to offer you the best product and services to make you unworried before/after the purchase. We promise 3-year product service. If you have any questions or doubts, our professional technical team will help you solve the problem within 24 hours.
| UPC | 728990665107 |
|---|---|
| Brand Name | KAISAL |
| Screen Size | 1.28 Inches |
| Manufacturer | KAISAL |
| Power Source | Battery Powered |
| Operating System | 1 |
| Included Components | adapters |
| Manufacturer Warranty Description | 3 Years |
