Nilight 6 Gang Switch Panel Universal Circuit Control Relay System with Fuse Wiring Harness Automatic Dimmable ON-Off LED Pod for Cars Trucks Boats ATV UTV SUV
Product details
| Management number | 215550509 | Release Date | 2026/04/12 | List Price | $40.68 | Model Number | 215550509 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: Input Voltage: 12V Max. Output Power:720W Max. Input Current: 60A Switch Panel Size: 3.74" *2.65" Switch Panel Material:High quality ABS and aluminum Circuit Control Box Size: 6.26"*3.52"*3.27" Circuit Control Box Material: High quality ABS 8acklighlDimmable Function:Yes Operating Temperature:- 40° C ~ + 105° C Over-Voltage Protection，Over-Current Protection Reverse Polarity Protection and Thermal Protection Dimmable brightness of the background lighting color Control 6 LED lights & electrical accessories at the same time Customize your personal switch panel with 50pcs DIY stickers 2 Mounting options All in one design
- 6 GANG SWITCH PANEL:Operating voltage:12VDC, the max output power is rating at 720 Watts. This switch panel with relay and MEMORY settings allows you to control up to 6 different devices. The switch pod can be customized accordingly with the 50pcs of stickers. The backlight of the switch panel will be automatically adjusted according to the brightness of the environment. There is independent switch to control the circuit.
- UNIVERSAL FITMENT: The small size 6 gang switch panel can be installed anywhere in your car, such as dash panel, dashboard, center console, overhead sunglasses holder, etc. Ideal for all applications such as off-road vehicles, ATVs,UTVs, RZR, SxS, 4 wheelers, trucks, cars, SUVs, boat,RVs etc.. Can be powered all types of 12V DC accessories.
- EASY INSTALLATION:The Plug-N-Play wiring harness with extension cable and the 2 mounting options of the switch pod makes installation much easier. The instructions offer you a quick and painless installation. If you want to extend the switch pod and the fuse panel, please search"B0BKGG9RY4" for purchasing.
- SAFETY DESIGN: The relays and fuses provides you with a safety environment for all connections.The whole circuit with over-voltage protection, over-current protection, overheat protection and reverse polarity protection.

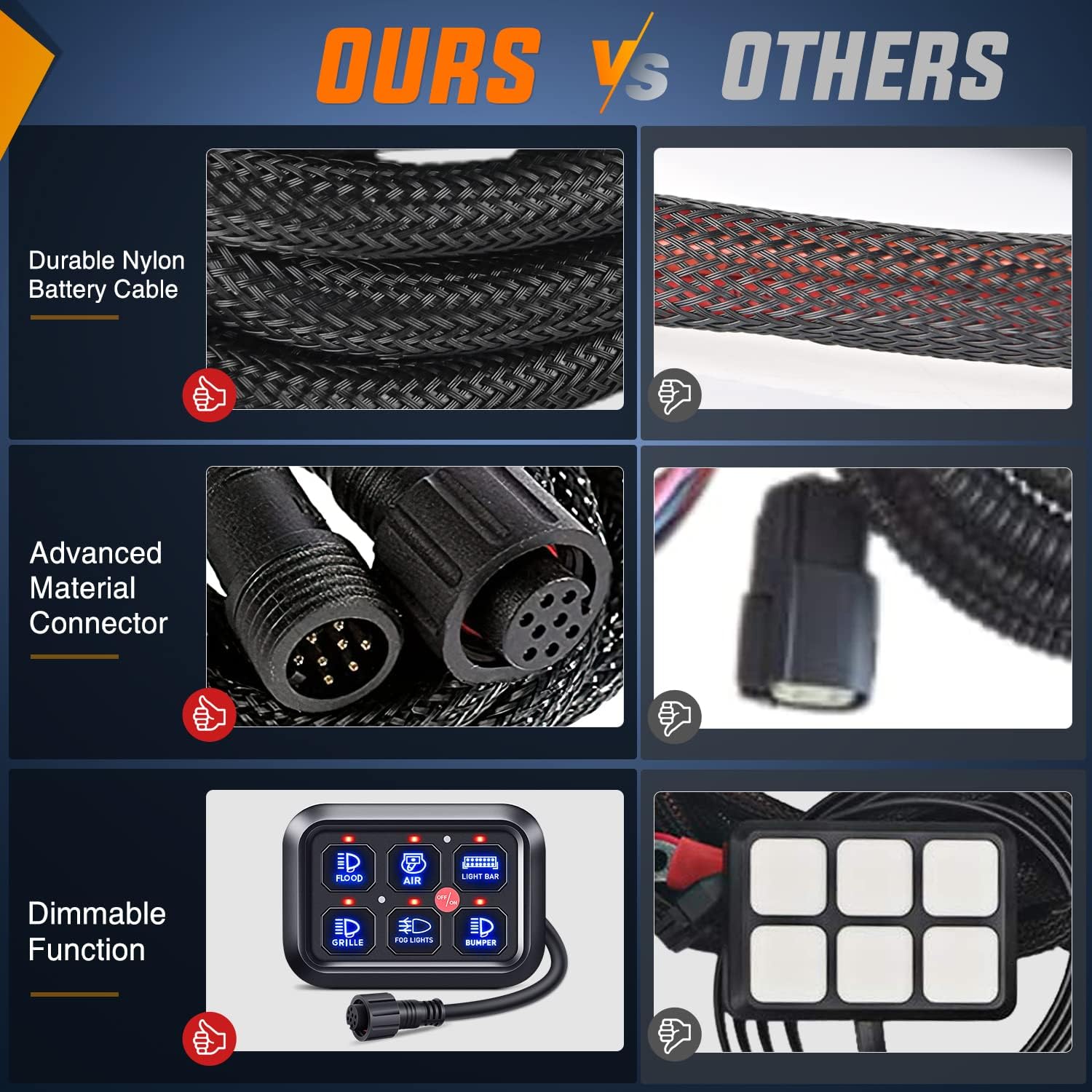

- ALL-IN-ONE Design: The 6 gang button switch pod is integrated with circuit control relay system,Fuses,Wiring harness,extension cable, 50pcs reusable stickers and 2 sets of switch panel mounting options.Which is designed to work together with better performance. No needs to buy other parts.
| UPC | 812227038953 |
|---|---|
| Color | Blue |
| Model | 90285F |
| Wattage | 720 watts |
| Terminal | Screw |
| Brand Name | Nilight |
| Unit Count | 1.0 Count |
| Switch Type | Temperature Switch |
| Circuit Type | 6-way |
| Contact Type | Normally Closed |
| Manufacturer | Nilight |
| Actuator Type | Push Button |
| Material Type | Acrylonitrile Butadiene Styrene, Aluminum |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 60 Amps |
| Operation Mode | OFF-NONE-ON |
| Controller Type | Push Button |
| Item Dimensions | 10 x 7 x 3 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 12 Volts |
| Specification Met | CE |
| Included Components | 6 Gang Switch Panel |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 105 Degrees Celsius |
| International Protection Rating | IP65 |
