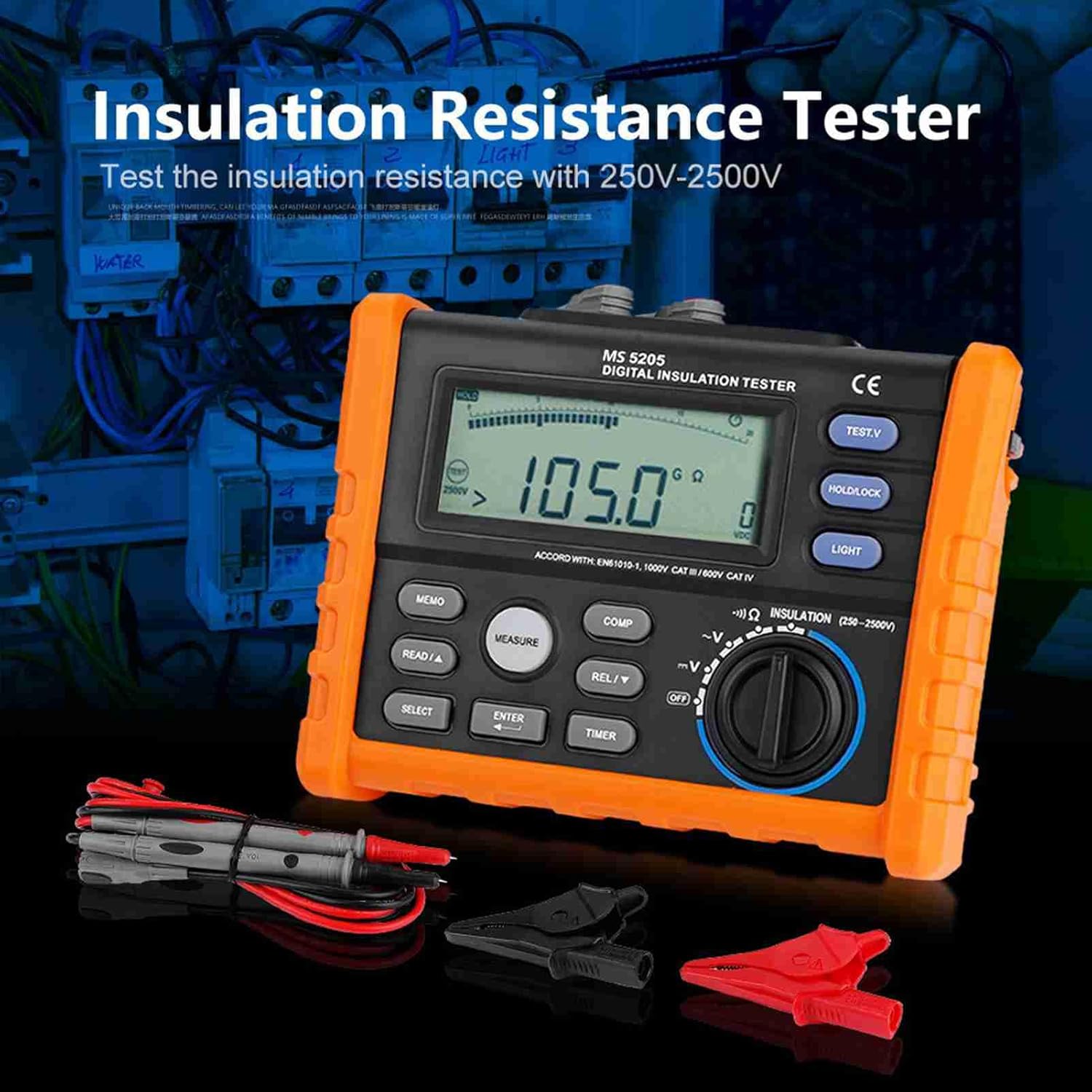

MS5205 Digital Pm5205, Isolamento Digital Insulation Tester Insulation Multimeter Tester 0.01M-100G with 250V-2500V
Product details
| Management number | 210914466 | Release Date | 2026/04/04 | List Price | $62.07 | Model Number | 210914466 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

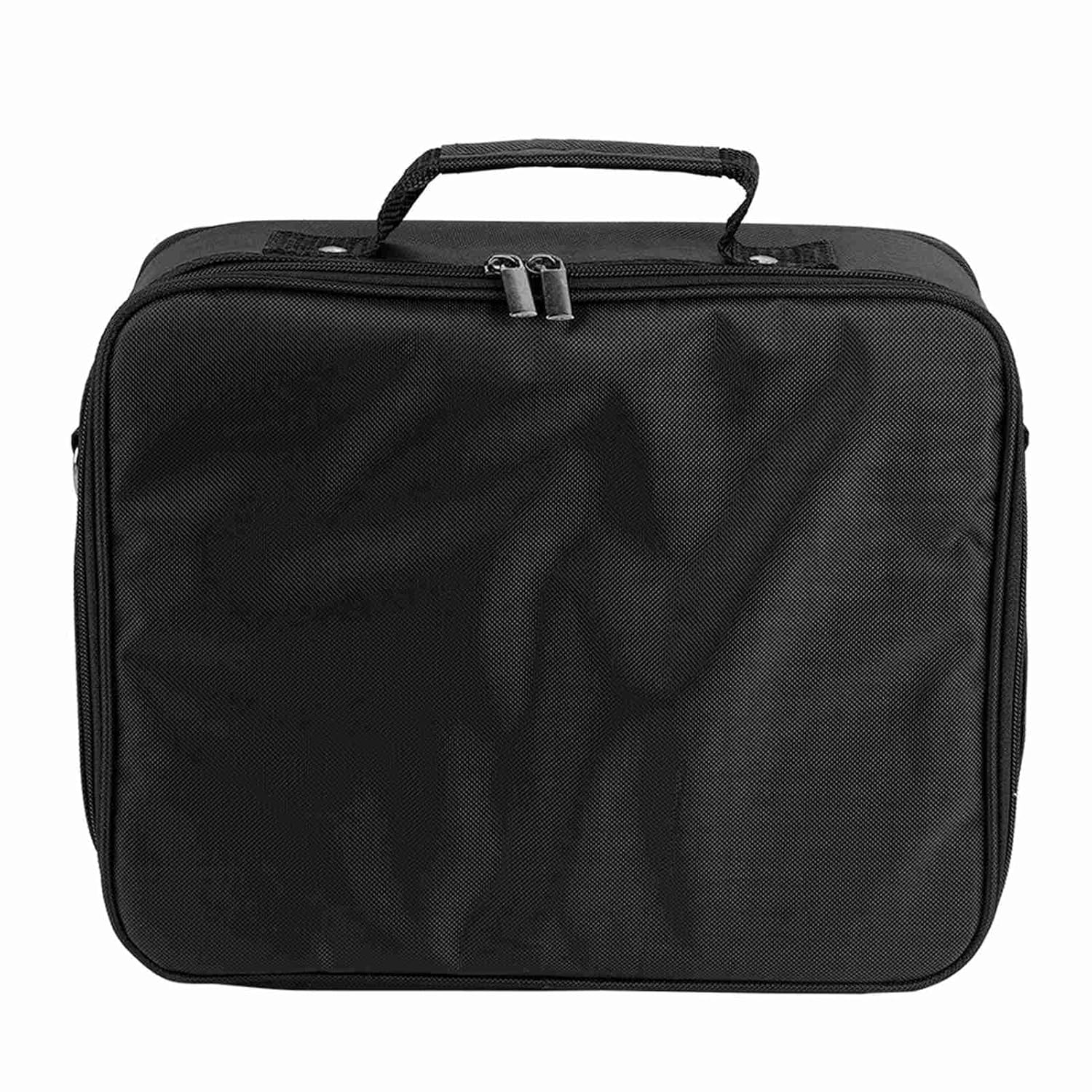

1. Test the insulation with -2500V 2. Automatic calculate PI (polarization index) and DAR (dielectric absorption ratio) 3. With backlight display and auto power off 4. Press Hold button to freeze the displayed value. Press again to release the display 5. DC and AC voltage test, continuity test Spec: Features: Automatic calculate PI (polarization index) and DAR (dielectric absorption ratio). With backlight display and auto power off. Press Hold button to freeze the displayed value. Press again to release the display. Specifications Technical Parameter Output Voltage Measuring Range Insulation Test 250V (0 %~+20%) 0.01MΩ~250MΩ ± (3%+5) 500V (0%~+20%) 0.01MΩ~500MΩ ± (3%+5) 1000V (0%~+20%) 0.01MΩ~1000MΩ ± (3%+5) 2500V (0%~+20%) 0.1MΩ~2.00GΩ ± (3%+5) 2.00GΩ~20.00GΩ ± (5%+0.2GΩ)Package Included:1 x MS5203 Digital Insulation Tester2 x Clips2 x Test Leads1 x Hand Bag
- :With a backlit display and automatically power off.
- Automatic calculation:PI (polarization index:and D(dielectric absorption ratio).
- Press operation:Press the hold button to freeze the display value and press it again to release the display.
- Test type:DC and AC voltage test,continuous test.
- Test insulation range:250V-2500V.
| Model | Eujgoovir1y58nbgt |
|---|---|
| Brand Name | Eujgoov |
| Manufacturer | Eujgoov |
| Item Type Name | Insulation Resistance Meters |
| Included Components | No |
