Mini Linear Rail Slide Stage NEMA23 57mm 2Nm Integrated Closed-Loop Stepper Motor Kits 40kg Load 100mm Stroke SFU1605 Ball Screw Linear Actuator for CNC

★★★★★ 4.6 144 reviews

$112.91
Price when purchased online
Free shipping Free 30-day returns

Sold and shipped by sahaja.live
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$112.91
Price when purchased online
Free shipping Free 30-day returns

How do you want your item?
You get 30 days free! Choose a plan at checkout.
Shipping
Arrives Apr 10
Free
Pickup
Check nearby
Delivery
Not available

Sold and shipped by sahaja.live
Free 30-day returns Details

Product details

Management number 211201791 Release Date 2026/04/04 List Price $45.16 Model Number 211201791
Category

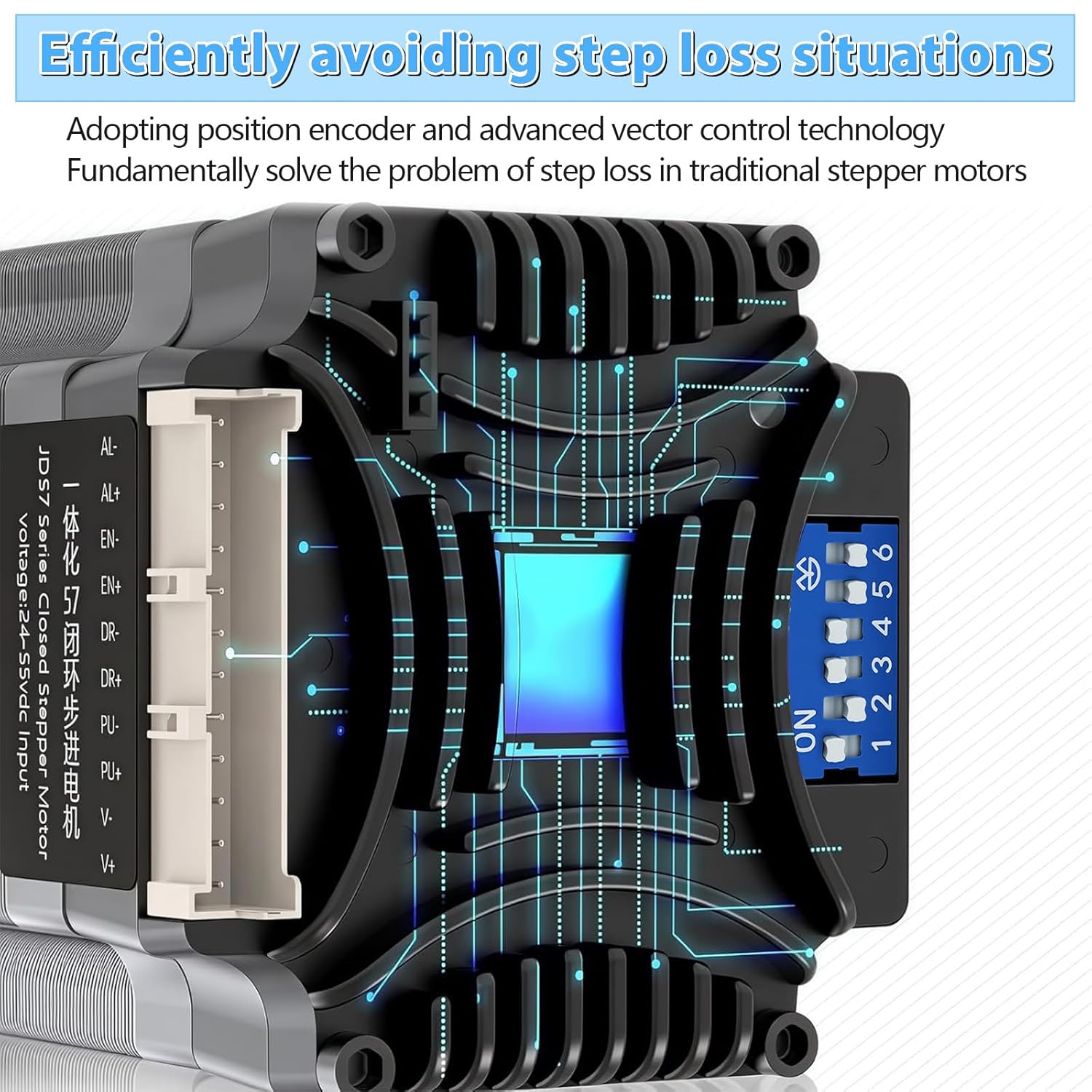

Space-Saving Precision: This compact combo integrates a single-rail linear stage with an all-in-one closed-loop NEMA 23 motor (driver + encoder built-in). It delivers zero lost-step performance in tight spaces, simplifies wiring, and offers robust load capacity for precision automation projects.

  • Compact Single-Rail Stage + 3-in-1 Closed-Loop Motor: The single linear guide rail design minimizes installation footprint, ideal for space-constrained projects.
  • Motor Specifications: Holding Torque 2 N.m. Running with no vibration/noise and high torque, good substitution of AC/DC servo motor at low speed.Type: Hybrid; Encoder line number: 1000; Motor length: 57x57x76mm / 2.24*2.24*3 inch; Shaft Diameter:8mm; Total length:96mm/3.78 inch; Lead wire: 4; Support DC Power Supply:DC20-48V; Current: 3.5A.
  • NEMA23 57mm Integrated Closed-Loop Stepper Motor:Closed-loop motion, high positioning accuracy, fast response, and high speed to 1000 rpm. Supports speed control mode, position control mode, backlash compensation, stall detection, and many other control functions.
  • Linear Rail Slide Stage Specifications:Slide Block-Guide Type: MGW12R, Slider Type: MGW12C. Horizontal loading capacity up to 88 pound / 40kg,vertical loading capacity up to 44lb / 20kgs.also low noise when working. Low noise. Ensure rigidity and smooth motion under stress.
  • Linear Stage:High-Speed Precision: 20 inch/s (500mm/s) Max Speed. CNC Linear Stage Motion Actuator Stroke: 4inch / 100mm. Total length: Effective Stroke(4 inch) + 4.7inch(120mm) = 8.7inch(220mm).1605 Ballscrew: Linear guide stage screw diameter 16mm, screw pitch 5mm,the screw rod rotates once and the panel moves 5mm. Ball screw linear rail Screw precision grade: C7, accuracy up to ±0.1mm.
Brand Name TOSEASTARS
