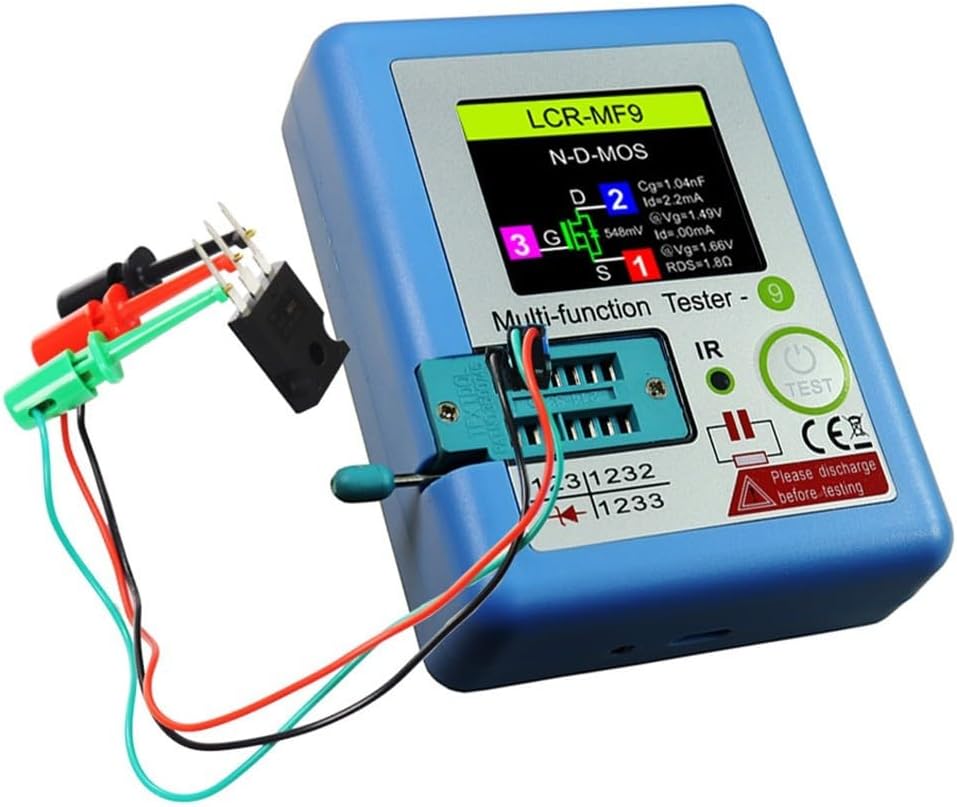

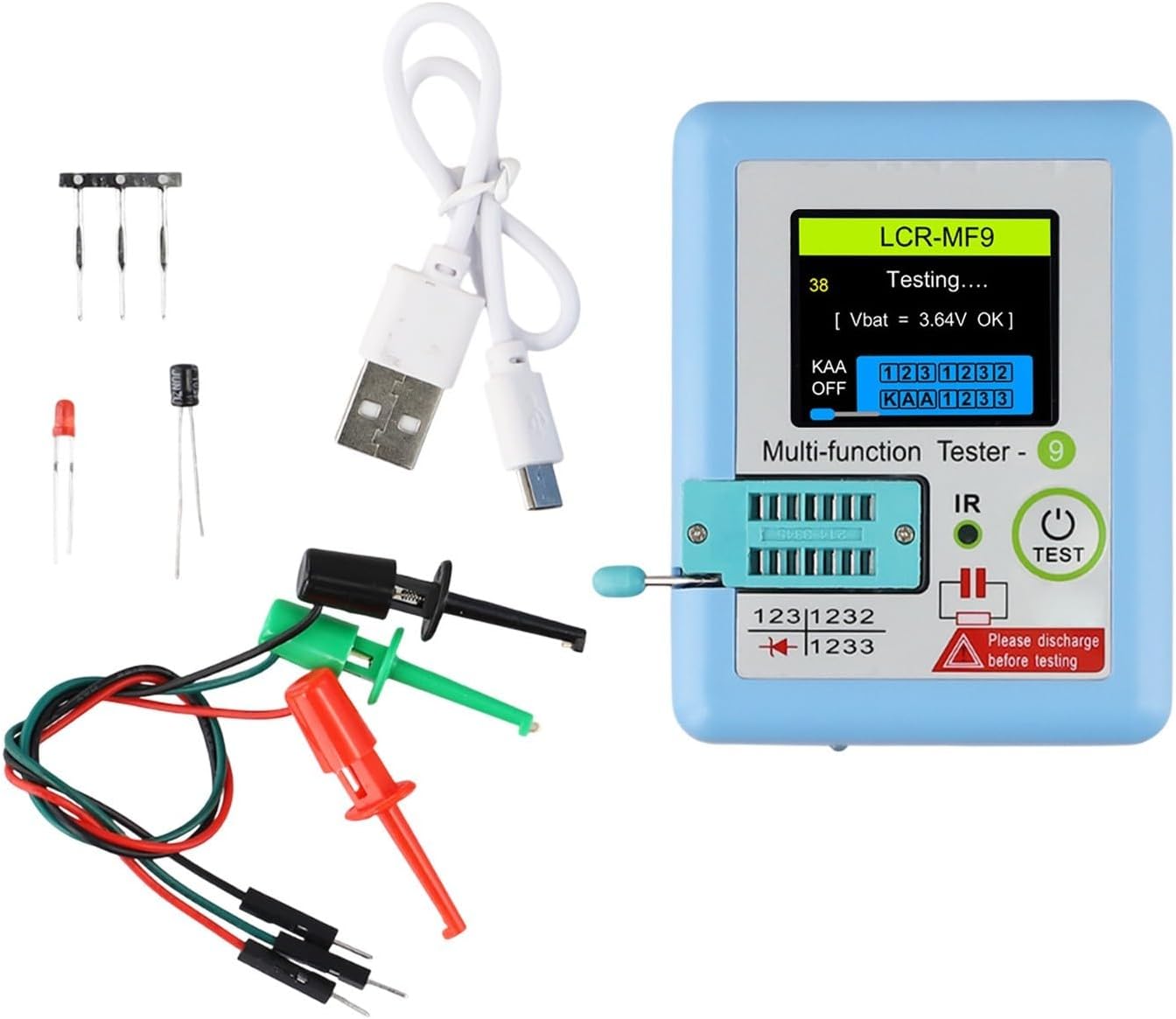

MF9 Transistor Tester with 1.8" TFT Display, Auto NPN PNP MOSFET Diode LCR Meter, 0.01Ω-50MΩ Resistance, Rechargeable Component Analyzer Electronic Repair, Blue

Product description Features:Built-in 300MAH 4.2V lithium battery, rechargeableTFT display 1.8-inch color screen, graphical display of various parametersAutomatically detect components such as NPN and PNP transistors, N-channel and P-channel MOSFETs, IGBT diodes (including dual diodes), thyristors, transistors, resistors and capacitors.Automatically test the pin layout of the parts and display them graphically on the color screen.Can detect infrared codes (support format infrared remote control)Detect the gain and base of transistors, MOSFET for protection diodes, . Determine the forward bias of the transmitting transistor.Can distinguish between depletion and enhancement MOSFETs.MOSFET gate threshold voltage and gate capacitance measurementSupports measurement and symbol display of two resistors, with a resolution of 0.1 ohm and a maximum measurement value of 50 megohms.Capacitors above 10UF can display VOSS and ESR.Resistors below 2100 Ohm measure inductance, and inductors below 10 UH only measure DC resistance.Fast test speed, effective component test: within 2 seconds (except for larger capacitors, large capacitance measurement also takes a long time)Equipped with calibration needle, small resistance can be tested more accurately after calibrationOne-button operation, power-on testPower consumption in off mode: less than 20 nAAutomatic shutdown function, save battery energy and improve battery life.Specifications:Part name: Transistor testerMaterial: Shell ABSColor: BlueCapacitance: 25pF~100mFResistance: 0.01~50MΩInductance: 0.01mH~20HBattery: 0.1~4.5VSize: 90*70*27mmPackage contents:Transistor tester*1Accessory bag*1Data cable*1 Manufacturer Contact Information no

• [COMPREHENSIVE COMPONENT TESTING] This transistor tester can automatically detect a variety of components including NPN and PNP transistors, MOSFETs, diodes, and capacitors. It provides graphical displays of pin layouts and parameters a vibrant 8-inch TFT screen, making it to analyze your components at a .
• [ AND ACCURATE MEASUREMENTS] With a testing of just 2 seconds, this device delivers quick . It can measure resistances to 50 megohms and capacitances from 25pF to 100mF, efficient testing your electronic projects.
• [USER-FRIENDLY ] The -button operation simplifies the testing process, allowing users of experience levels to easily and test components without any hassle. Automatic shutdown features help conserve battery life extended use.
• [DETAILED ANALYSIS CAPABILITIES] Capable of measuring gate threshold voltage and capacitance MOSFETs, as well as ESR capacitors above 10UF, this tester provides detailed insights into your components' .
• [SIZING REMINDER] Please refer to your own sizing chart when using this .
