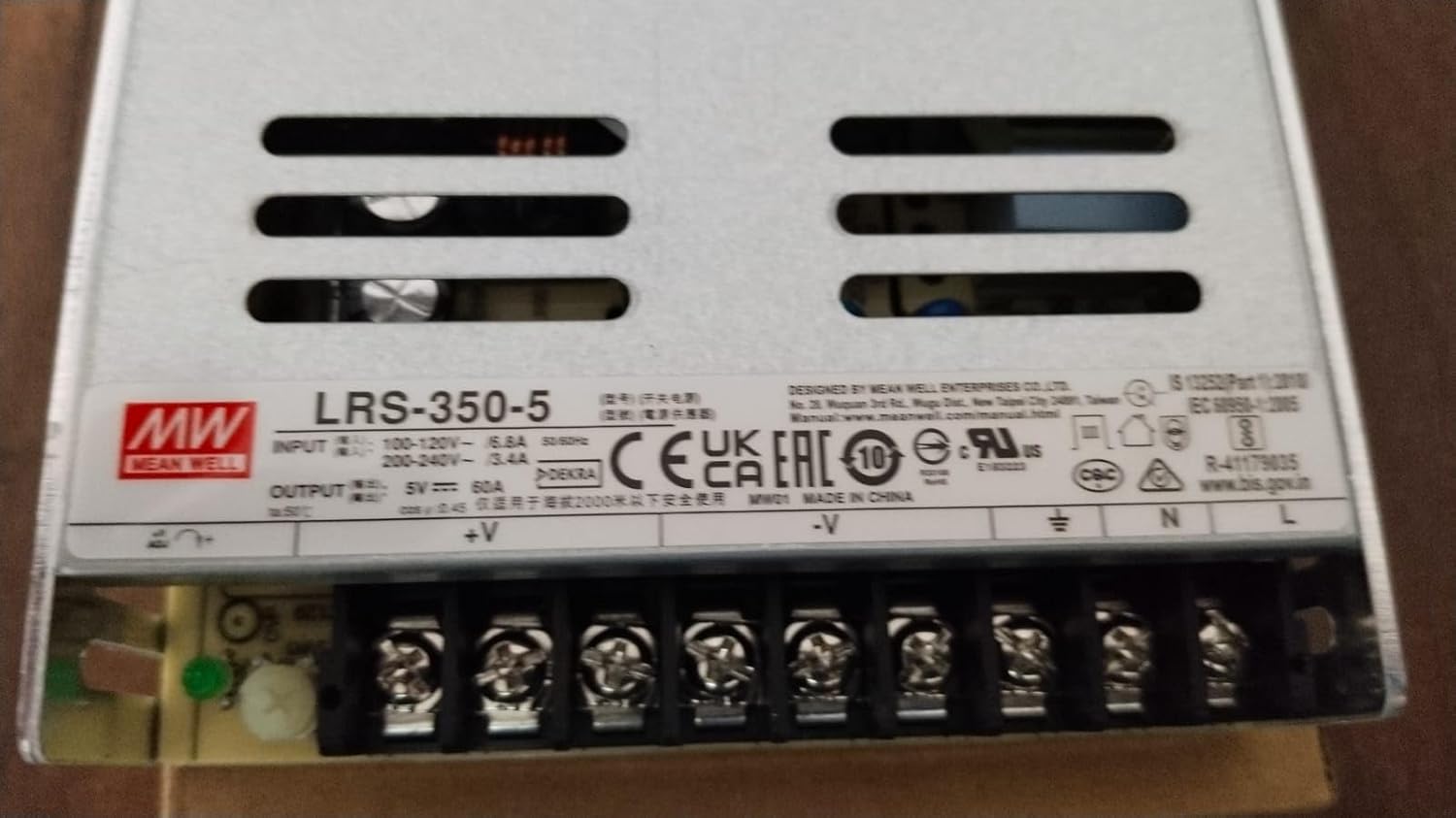

MEAN WELL Original LRS-350-5 5V 60A meanwell LRS-350 5V 300W Single Output Switching Power Supply
Product details
| Management number | 211768788 | Release Date | 2026/04/04 | List Price | $15.96 | Model Number | 211768788 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
MODEL LRS-350-5 LRS-350-12 LRS-350-24 OUTPUT DC VOLTAGE 5V 12V 24V RATED CURRENT 60A 29A 14.6A CURRENT RANGE 0 ~60A 0 ~ 29A 0 ~14.6A RATED POWER 252W 348W 350.4W SETUP, RISE TIME 1300ms, 50ms/230VAC 1300ms,50ms/115VAC at full load HOLD UP TIME 16ms/230VAC 12ms/115VAC at full load INPUT VOLTAGE RANGE 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC) FREQUENCY RANGE 47 ~ 63Hz INRUSH CURRENT 60A/115VAC 60A/230VAC ENVIRONMENT WORKING TEMP. -25 ~ +70(Refer to "Derating Curve") WORKING HUMIDITY 20 ~ 90% RH non-condensing VIBRATION 10 ~ 500Hz,5G 10min./1cycle, 60min. each along X, Y, Z axes OTHERS DIMENSION 215*115*30mm (L*W*H) PACKING 0.76Kg; 15pcs/12.4Kg/0.78CUFT Product Description LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adoptingthe input of 115VAC or 230VAC (select by switch), the entire seris provides an output voltage line of 3.3V,4.2V, 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 89%, with the built-in long life fan LRS-350 can work under -25~+70with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement. LRS-350 has the complete protection functions and 5G antivibration capability; it is complied with the international safety regulations such as : UL60950-1. LRS 350 series serves as a high price to performance power supply solution for various industrial applications
| UPC | 767452982833 |
|---|---|
| Brand | MEAN WELL |
| Wattage | 300 watts |
| Model Name | LRS-350 |
| Form Factor | ATX |
| Item Weight | 0.01 Ounces |
| Manufacturer | MEANWELL |
| Model Number | LRS-350-5 |
| Cooling Method | Air |
| Current Rating | 60 Amps |
| Number of Fans | 1 |
| Output Wattage | 300 Watts |
| Item Dimensions | 8.46 x 4.53 x 1.18 inches |
| Mfr Part Number | LRS-350-5 |
| Compatible Devices | Personal Computer |
| Maximum Input Voltage | 264 Volts (AC) |
| Minimum Input Voltage | 115 Volts |
| System Bus Connector Type | ATX |
| Connector Type Used on Cable | ATX |
