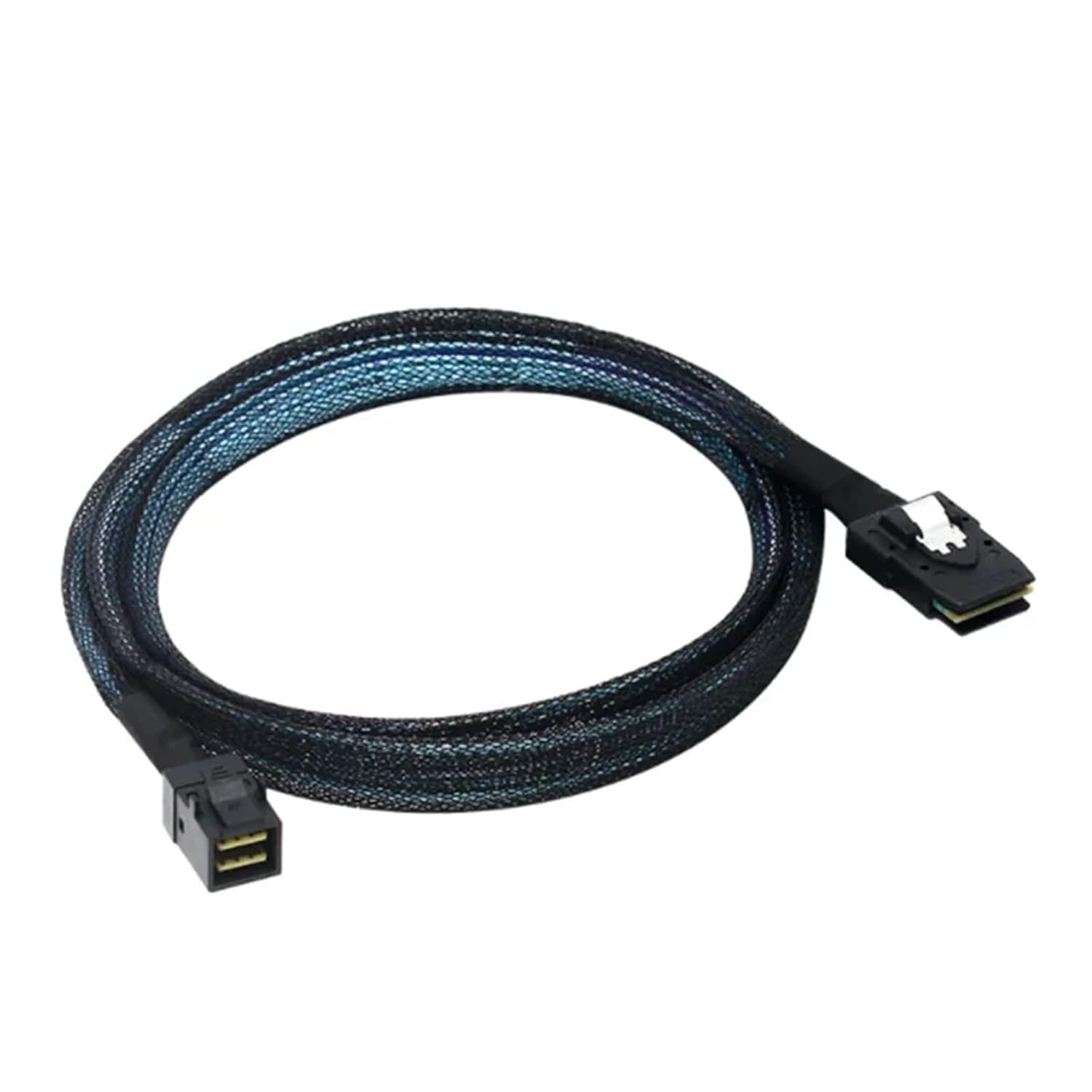

Internal Mini SAS HD Cable SFF-8643 to SFF-8087, 12Gbps Server Storage Data Transfer Cord for RAID Controller to Backplane Hard Disk Array(1m)

This internal SAS cable provides a critical connectivity solution for server and enterprise storage architectures. It is designed as a transition cable, featuring a Mini SAS High Density (HD) SFF-8643 connector at one termination and a standard Mini SAS SFF-8087 connector at the opposite end. This configuration enables direct interconnection between newer host bus adapters or RAID controllers utilizing the HD interface and existing storage backplanes or expanders equipped with the previous-generation SFF-8087 ports.The cable assembly is engineered to support the evolving performance requirements of data center storage infrastructure. It is fully compliant with SAS 3.0 specifications, enabling data transfer rates up to 12Gbps per lane for aggregate throughput suitable for bandwidth-intensive applications. The design also ensures backward compatibility with 6Gbps and 3Gbps SAS and SATA devices, allowing seamless integration into environments with mixed generations of storage hardware.Construction quality focuses on maintaining signal fidelity over the internal cable run within server chassis. The cable utilizes copper conductors and precision-terminated connectors to achieve consistent impedance characteristics and minimize insertion loss. This attention to electrical performance supports reliable communication between controller cards and drive backplanes, which is essential for maintaining data integrity in RAID arrays and other critical storage configurations.The mechanical design incorporates strain relief at both connector ends to withstand the rigors of server assembly and maintenance procedures. Connectors are engineered for secure mating with standard SFF-8643 and SFF-8087 receptacles, providing reliable retention while allowing for straightforward disconnection when necessary. The cable's flexible construction facilitates routing within confined server interiors, contributing to effective cable management and unobstructed airflow for component cooling.This SFF-8643 to SFF-8087 cable serves as a fundamental component for internal storage connectivity in rackmount servers, storage arrays, and custom-built data appliances. Its design aligns with industry-standard form factors and interface specifications defined by SFF and T10 committees, enabling broad compatibility with server hardware and storage controllers that implement these interfaces. For system integrators and data center administrators, this cable provides a reliable means to connect current-generation controller technology with existing storage infrastructure.

• This internal server cable features a Mini SAS HD SFF-8643 connector on one end and a standard Mini SAS SFF-8087 connector on the other, enabling seamless connectivity between SAS/SATA host bus adapters or RAID controllers and SAS/SATA backplanes in server and storage array enclosures.
• Engineered to support data transfer rates up to 12Gbps, this cable meets SAS 3.0 specifications while maintaining backward compatibility with 6Gbps and 3Gbps SAS/SATA infrastructures, providing flexibility for mixed-generation storage environments.
• Constructed with high-quality copper conductors and precision-molded connectors, the cable ensures reliable signal integrity for demanding data center applications, including RAID configurations, network-attached storage, and high-availability server clusters.
• The HD Mini-SAS (SFF-8643) connector design follows industry-standard SAS 2.1 and SAS 3.0 specifications, delivering improved signal performance and mechanical stability for internal storage connections in rack-mounted servers and storage arrays.
• Designed for internal use within server chassis, this cable facilitates direct attachment from controller cards to drive backplanes, supporting efficient cable management and airflow optimization in space-constrained data center equipment.
