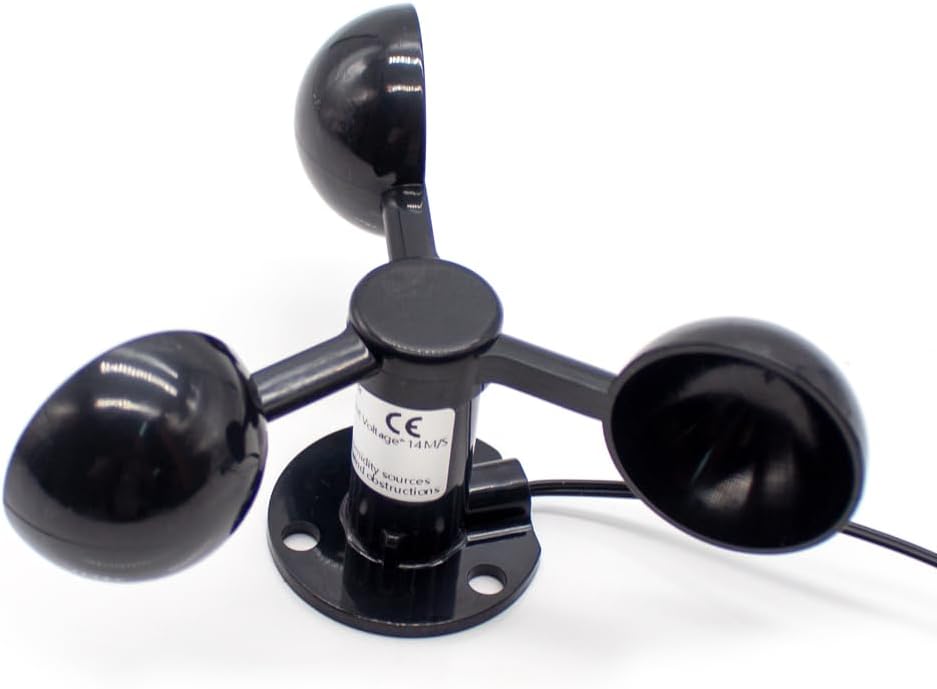

iDili Tower Crane Self-Generating Wind Speed Sensor with Display Instrument, Unpowered Anemometer 3M Cable 46MM Base 6MM Fixing Screw

Tower Crane Self-Generating Type Wind Speed Sensor Display Instrument Unpowered AnemometerSpecification:Product Name：Tower Crane Self-Generating Type Wind Speed Sensor Cable length: 3M Sensor base diameter: 46MM Fixing screw size: 6MM Packing Size: 155x138x70MM Net Weight: 135G Package Weight: About 200G How to use it:Connect the signal wire of the wind speed sensor to the rear terminal of the instrument, the plain black wire to the - sign and the black wire with white stripe to the other post. The wind speed sensor and the meter and the connecting wires should be fixed when using it. Package Included:1 x Wind Speed Sensor 1 x Display instrument

• This anemometer is assembled with a specially customized power generation wind speed sensor and a pointer type meter head. Its working principle is that when there is horizontal flow of wind in the environment, the special structure of the wind cup can generate fixed direction rotation and drive the built-in sensor to generate voltage, which is directly proportional to the rotation speed. The change in voltage of this signal is displayed by connecting it to a specially customized pointer type meter.
• The maximum allowable environmental wind speed for this anemometer is 75KM/H. Any environment exceeding this wind speed may exceed the range and damage the meter head.
• This sensor is spontaneous and does not require power supply. When there is wind rotating, it generates a voltage signal and is displayed by the meter head.
• This wind speed sensor is a simple structure with average accuracy and is only suitable for environmental wind speed reference, not suitable for meteorological forecast level applications.
• The wind speed sensor should be installed in a horizontal position to ensure that the installation position is not prone to water accumulation and is easy to detect environmental wind speed. The wind speed sensor has a rainproof function, but it is not resistant to soaking in rainwater. The signal output line is about 3 meters long, and when it needs to be extended, it can be connected according to the corresponding color. The wind speed sensor has a height of approximately 6.5CM and a rotating diameter of approximately 14CM.
• The base component is made of ABS injection molding technology, with a chassis diameter of 46MM. It is fixed by three holes with a radius of 18MM and a diameter of 6MM distributed at 120 degrees. Three M5 or M6 bolts can be used for fixation. The power generation sensor is fixed in the base, and the signal wire is a two core wire with a default length of about 3 meters. The signal wire is a double parallel wire, with black with white stripes indicating the signal voltage and pure black indicating GND.
