| Management number | 211032035 | Release Date | 2026/04/04 | List Price | $18.91 | Model Number | 211032035 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

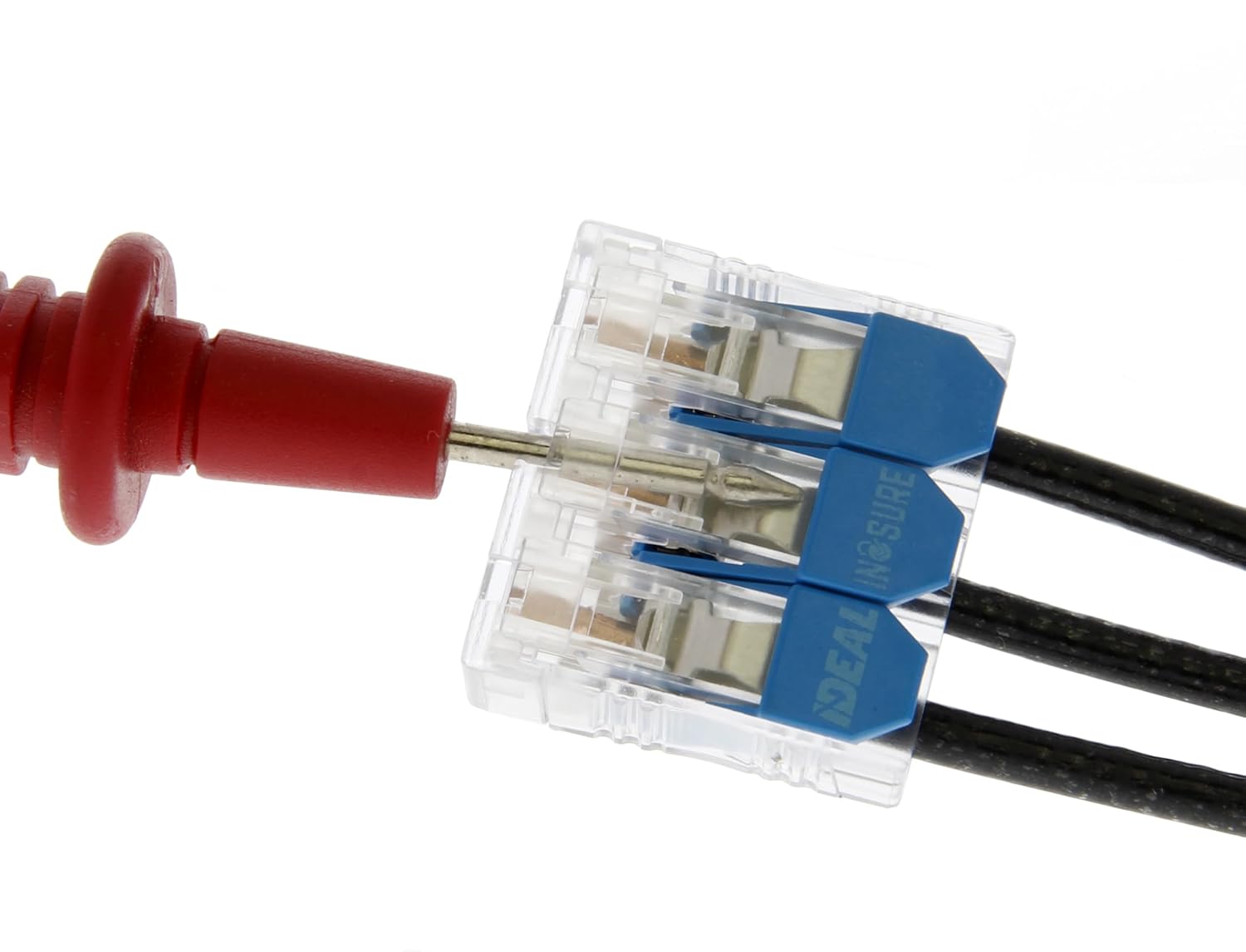

Experience fast and secure connections with IDEAL In-Sure Lever Connectors, 10 AWG, 3-Port. With a patented design, this 3-Port connector has an improved lever action, reducing the effort and strain on your hands. It provides the most extensive wire range in the industry, supporting solid and stranded wires with a reusable design from 10 AWG to 22 AWG, and copper-clad aluminum wires from 12-10 AWG. Be confident in your connection with our audible click-locking feature, a protective side wall to keep them locked in cramped spaces, and clear housing allowing visual inspections of each connection.
| UPC | 783250749775 |
|---|---|
| Color | Box 75 |
| Gauge | 10.0 |
| Model | 30-10L33 |
| Terminal | Lever |
| Brand Name | Ideal Industries |
| Unit Count | 1.0 Count |
| Manufacturer | IDEAL |
| Material Type | Alloy Steel, Plastic |
| Connector Type | Lever |
| Maximum Voltage | 600 Volts (DC) |
| Contact Material | Steel |
| Specification Met | cULus |
| Temperature Rating | 105 C / 221 F |
| Included Components | Wire Connectors |
| Warranty Description | No Warranty |
| Insulation Material Type | Polycarbonate |
| Item Dimensions L x W x H | 0.94"L x 0.89"W x 0.43"H |
