HES 1500C Complete Pac Electric Strike for Cylindrical or Mortise latchbolt Locks, Fire Rated, Includes 1J, 1K, 1KD and 1KM faceplates, Satin Stainless Steel (630), Dual Voltage (12/24 VDC)
Product details
| Management number | 210235770 | Release Date | 2026/04/02 | List Price | $146.00 | Model Number | 210235770 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

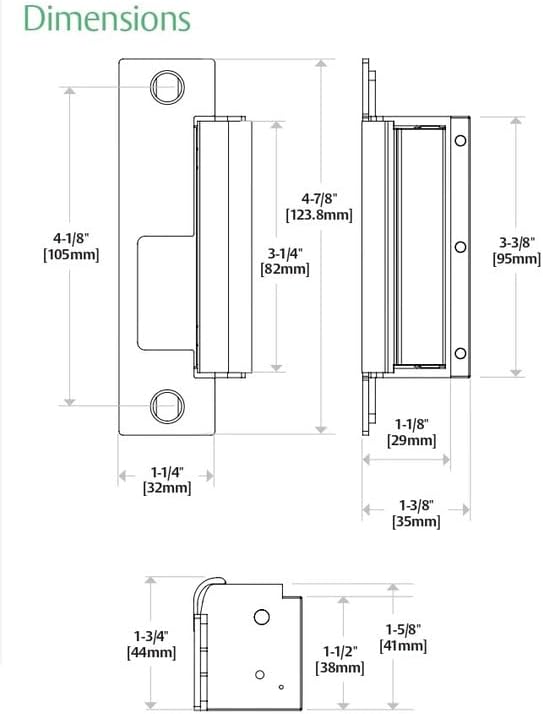

The HES 1500c Complete Pac Electric Strike is compatible with any CYLINDRICAL or MORTISE lock [without a deadbolt] designed to work with a 47/8'' strike plate. PRODUCT SPECIFICATIONS: • HES 1500 Strike body depth 13/8'' • Complete Pac includes 1LB faceplate kit: 1K, 1KD and 1KM • Lock Type: Cylindrical Lock / Mortise Lock •Field replaceable components •Stainless steel construction •Nonhanded • Fully finished faceplate, keeper, case and trim • Interchangeable faceplates and accessories • Trim enhancer included • Internally mounted solenoid APPLICATION: •Adjustability: Horizontal •Frame Material: Metal / Wood •Surface Mounting: Cutting required •Shim Type: Field Adjustable •Latchbolt Accommodation: Up to 3/4'' CERTIFICATIONS: Field selectable fail safe/fail secure, Certified: Yes, ANSI/BHMA A156.31, Grade 1, UL 1034 burglaryresistant listed and suitable for outdoor use, UL 294 listed, RoHS compliant, Static strength, UL 10C firerated, 3 hour single door (fail secure only), 11/2 hour double door (fail secure only), CAN/ULCS104 fire door conformant, NFPA252 fire door compliant, ASTME152 fire door compliant, California Fire Marshal listed, ANSI/SDI A250.13 windstorm resistant, Florida Building Code approved TAS 201, 202, 203, ANSIASTM E330, ELECTRICAL: Voltage: 12/24, Factory Configured / Field Installable, Dual Lock Monitors / Lock Monitor, Electrolynx connectors, Dual voltage 12/ 24 VDC/VAC, .24 Amps @ 12 VDC/VAC, 12 Amps @ 24 VDC/VAC, DC continuous duty/AC intermittent duty only, 240 mA at 12 VDC/120 mA at 24 VDC , PoE friendly STRENGTH & DURABILITY: Tamper Resistant: Yes, Static Strength (lbs): 1500, Dynamic Strength (ftlbs): 70, Endurance (cycles): 1,000,000.
- The HES 1500C electric strike is more than a new heavy duty, low profile solution for latchbolt locks. It accommodates every brand of cylindrical or mortise locks [without a deadbolt] designed to work with a 4-7/8” strike plate.

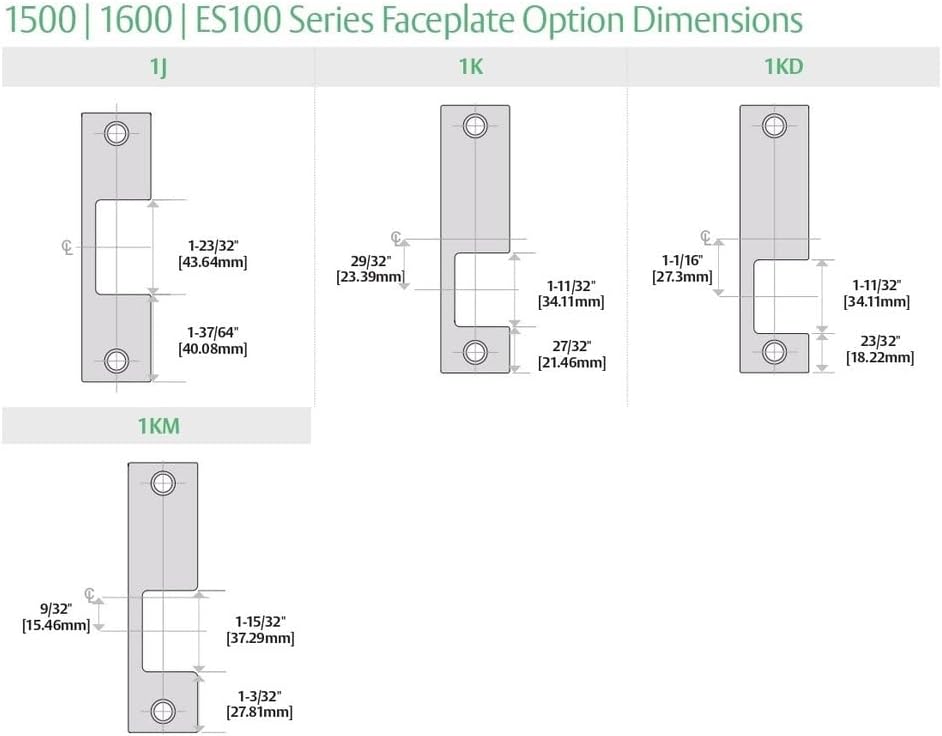

- The Complete Pac comes with the 1LB Option Faceplate Kit which includes 1J, 1K, 1KD and 1KM faceplates: • 1J = for use with cylindrical locksets up to 3/4" throw and all locksets with center-lined bolts. • 1K & 1KD = for use with mortise locksets with a deadlatch positioned above the latchbolt. • 1KM = for use with mortise locksets with a deadlatch positioned below the latchbolt.
- The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories.
- Fire rated, Windstorm resistant, Tamper resistant, Static strength 1,500 lbs.
- SecuriCare five-year, no-fault, no questions asked warranty.
| UPC | 697478872668 |
|---|---|
| Shape | Cylindrical |
| Lock Type | Cylindrical Lock / Mortise Lock |
| Brand Name | HES Hardware - Assa Abloy |
| Style Name | Modern |
| Unit Count | 1.0 Count |
| Manufacturer | HES Hardware - Assa Abloy |
| Model Number | HES 1500C-12/24D-630 |
| Control Method | App |
| Item Dimensions | 10 x 3.5 x 2 inches |
| Additional Features | Keyless |
| Recommended Uses For Product | access control for doors in various applications, residential security, commercial security, industrial security |
