Haze Meter YH1100 Vertical/Horizontal Plastic ASTM D1003 and Transmittance Measurement

YH1100 haze meter can easily achieve ASTM D1003 non-compensation method, ISO 13468 compensation method, full light transmittance,haze test.Open sample bin can be vertically and horizontally tested to accommodate more samples to be tested.The YH1100 haze meter uses a PDF array detector to meet the CIE V(λ)2 degree visual response. The compensation method can be used to measure the light transmittance and haze with high precision and repeatability. Brand Name:3nh Intergrating Sphere Size:154mm Optical Geometry:Transmittance:0/D Light Source:D65, A, C, D50, D55, D75, Spectral Separation Device:Concave-Grating Detector:256 Image Element Double Array CMOS Image Sensor Wavelength Range:400 ~ 700 nm Reflectance Range:0-200% Measurement Aperture:20 mm/15 mm/8 mm/4 mm (select single aperture) Color Spaces:CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,xy,DIN Lab99 Observer Angle:2°/10° Certification:CE, ISO 9001, ROHS, TUV, FCC

• Double standard ISO & ASTM Able to meet the test standard requirements of different users, in accordance with ASTM D1003/1044,ISO 13468,ISO 14782,GB/T 2410,JJF 1303-2011,CIE 15.2,GB/T 3978,ASTM E308,JIS K7105,JIS K7361,JIS K 7136

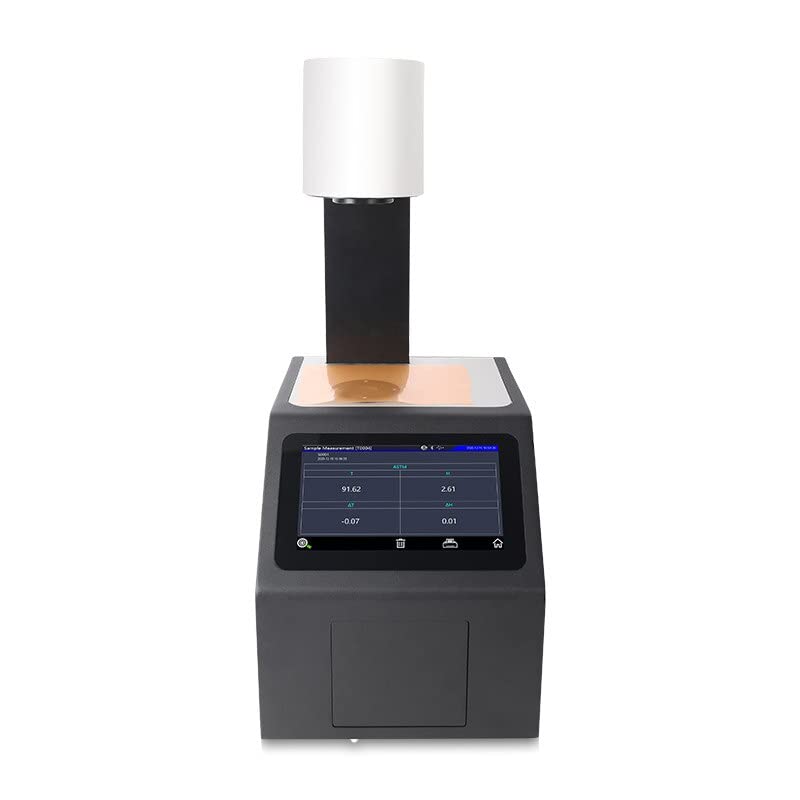

• Easy to operate, faster and more accurate measurement The YH1100 haze meter is equipped with a large-size touch screen for easy operation.With a PD array detector, CIE V(λ)2 degree visual response enables high precision and repeatable transmittance and fog measurements.USB data output device for docking with laboratory system.
• Dynamic measurement Independent light source detector and temperature sensor, constantly monitor light source and environmental change, ensure the reliability of test data.

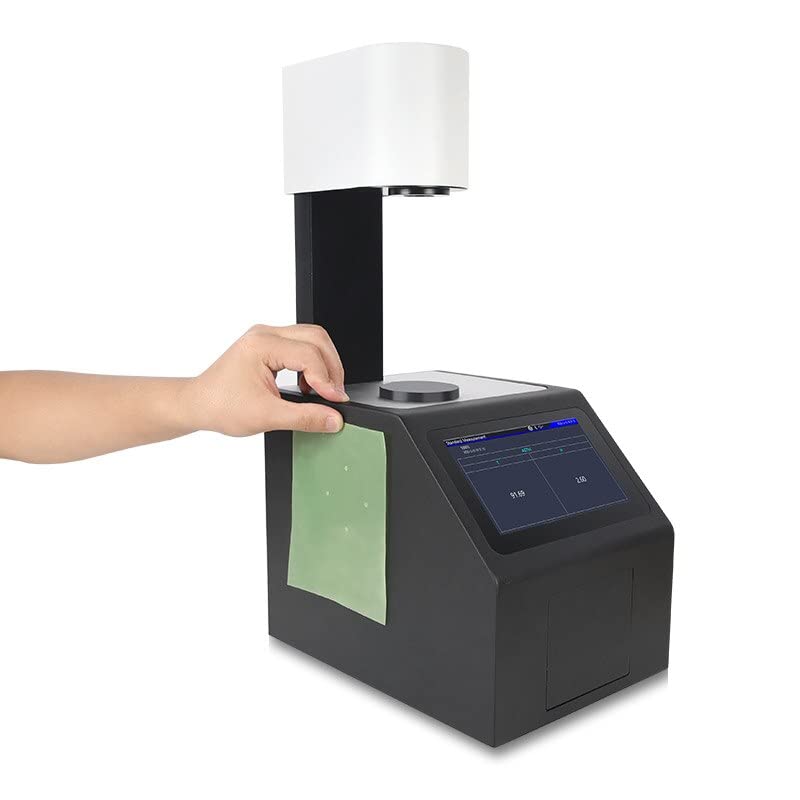

• Easy to measure and widely applicable to samples Open measuring area, vertical and horizontal testing, suitable for more samples to be tested.
• Quality control software It provides powerful software for measuring and analyzing fog and light transmittance, which is suitable for quality monitoring and tabulated management of fog and light transmittance data in various industries.The management of users will be digitized at the PC end, the difference of fog and light transmittance will be compared, and the test report form will be generated to facilitate customer customization and management.
