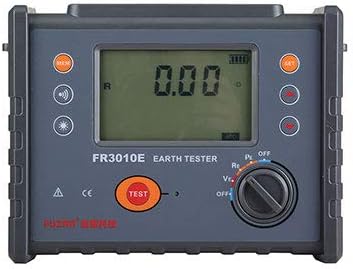

Grounding Resistance Soil Resistivity Tester FR3010E Two or Three-wire Grounding Earth Voltage Resistance Meter 0.00~30.00kΩ 0.00Ωm~9999kΩm 0.00V～600V

MeterTo MeterTo mainly offers instruments and tools. Please confirm the product is offered by our store MeterTo when purchasing, otherwise we can't ensure the quality and after-sale service. Specification Model: FR3010E Function: Use 2-wire、3-wire、4-wire test ground resistance、soil resistivity、ground voltage Range: Ground resistance :0.00Ω-30.00kΩ ; Resolution: 0.01Ω; Accuracy: ±2%rdg±5dgt Soil resistivity: 0.00Ωm-9999kΩm; Resolution:0.01Ωm; Accuracy: p=2πaR Ground voltage:0.00V-600V AC; Resolution: 0.01V; Accuracy: ±2%rdg±3dgt Measurement Mode: Precise four-wire、three-wire measurement, simple two-wire measurement test ground resistance Measurement Method: Grounding resistance: rated current change pole method, test current 20mA Max Soil resistivity: quadrupole; Ground voltage: average value rectification(S-ES interface) Short Circuit Test Current: AC 20mA Max Open Circuit Test Voltage: AC 28V Max Test Voltage Waveform: Sine wave, frequency: 128Hz Electrode Spacing Range: 1m~100m Shift: Automatic LCD Display Field: 108mm×65mm, with backlight, suitable to use in dim places Standard Test Line: 6 strips: Red 15m, Black 15m, Yellow 10m, Green 10m, Yellow 1.5m, Green 1.5m each 1 strip Auxiliary Grounding Rod: 4 roots Measure Time: Ground voltage: 2times/second; Grounding resistance、Soil resistivity: 7seconds/ time Ground Voltage: Test below AC 600V(ground voltage measurement function cannot be used to measure commercial power) Overflow Display: Exceed measurement range overflow function: “OL ” symbol display Alarm Function Automatic shut-down: "APO" instruction, automatic shutdown after 15 minutes boot Overload Protection: Grounding resistance: AC280V/3 seconds between E-H and E-S ports Insulation Resistance: Above 20MΩ (500V between circuit and case) Pressure Resistance: AC 3700V/rms

• Function: Two or three wire measuring ground resistance Soil resistivity, grounding voltage measurement;
• Resistance range: 0.00~30.00kΩ automatic shifting;
• Soil resistivity: 0.00Ωm~9999kΩm automatic shifting;;
• Grounding voltage: 0.00V～600V;
• Operating voltage: below AC 600V; Test frequency: 128Hz; Data Storage: 500 Groups.
