Ganter Standard Elements | Slotted Straining Screw Collars – GN 706.2 Sintered Steel, Black, GN 706.2-26-B10-ST
Product details
| Management number | 215635149 | Release Date | 2026/04/12 | List Price | $18.82 | Model Number | 215635149 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Slotted adjustment rings GN 706.2 can be mounted easily and securely, i.e. with strong clamping force. The surface of the shaft is not damaged. The thread for the cylinder screw is designed as a hole for sizes d1 = 20 to 36, from size d1 = 42 as a blind hole. These adjustment rings not only serve as a fixed stop, but also offer mounting options for other elements, e.g. B. Limit switch.

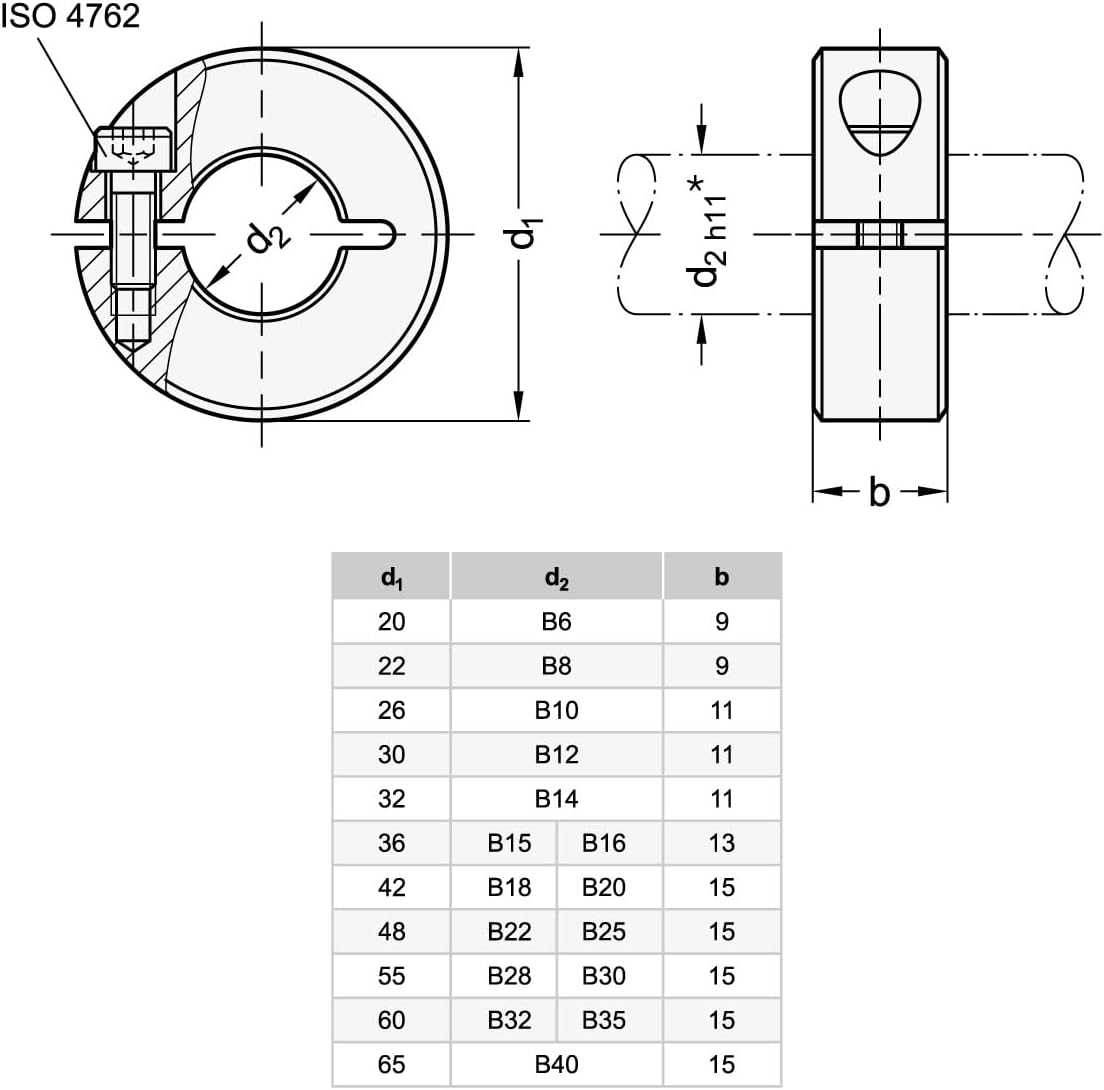

- Total diameter d1: 26 mm, bore d2: B10; width b: 11 mm
- Box contents: 4 adjustment rings
- Maximum screw head overhang: 1.6 mm
- Adjusting ring: sintered steel (Distaloy AB), black, steam oxidised
- Cylinder screw DIN 912: steel, blank
| Size | Durchmesser d1: 26mm, Bohrung d2: B10 |
|---|---|
| Color | Schwarz Dampfoxidiert |
| Material | Alloy Steel |
| Item Weight | 4.5 ounces |
| Part Number | GN 706.2-26-B10-ST |
| Manufacturer | Ganter Normelemente |
| Number Of Pieces | 4 |
| Item model number | GN 706.2-26-B10-ST |
| Batteries Required | No |
| Measurement System | Metric |
| Product Dimensions | 2.05 x 2.05 x 0.43 inches |
| Included Components | Adjusting ring with cylinder screws |
| Item Package Quantity | 1 |
