Fischer 571023 TherMax HWK Insulation Dowel for Attaching High Loads to the Sheath, Red, M12-12/110

Thermax M12-12/110 SET 25 Thermal Mounting System, Insulated, for Remote Loads Backing material: For thermally insulated attachment of: awnings canopies Balcony railing. Console. air conditioners Parabolic antennas Advantage: The system is approved for high loads in a variety of materials when used in conjunction with FIS V and FIS Green injection resins. This allows for a secure attachment. With a TherMax, usable lengths of 60 to 295 mm can be covered. The plastic cone creates a thermal barrier between the object to be attached and the interior of the bracket, achieving energy-optimised attachment. The cone made of fibreglass-reinforced plastic maintains its seat in the insulation plate and ensures easy and quick installation without the use of special tools. Recommended uses: CERTIFIED FOR: Cracked and non-cracked concrete. Solid brick made of brick. Solid brick made of calcium silicate. Semi-full brick (drilled vertically) made of brick Semi-full brick (vertically perforated) made of calcium silicate Hollow block made of lightweight concrete. Also suitable for: Autoclave aerated concrete (aerated concrete). How it works: TherMax 12 and TherMax 16 are suitable for non-continuous installations. The self-drilling, fiberglass reinforced cone results in its seat in the insulation by traversing the plaster during installation. The insulating cone creates a thermal barrier and minimises heat loss. For solid plaster (e.g. thick plaster based on cement), we recommend using the included cutter to cut the plaster. Seal facade at the plaster level by filling the annular space between the hole and cone with the sealant KD ULTRA 60 and/or KD FLEX 20 sealant. Technical details: Thickness of thermal insulation: 60 - 170 [mm] Mounting length: 245 mm. Thread size metric: 12 [mm] Material: cold galvanised. Thread: 12 [mm] Metric thread: M12. Length: 240 mm. Reference: EAN: 4006209919699. Fischer Code: 91969

• Secure attachment to exterior walls: self-tapping thermal spacer module ensures reliable installation in soft and low-resistance insulation materials without damaging thermal insulation
• POWERFUL MOUNTING SYSTEM The Ther Max consists of a special anchor strip made of galvanized steel that automatically cuts through the plaster into the insulating material, with a glass fibre reinforced cone that interrupts heat bridges, grub screws and anchor sleeves for fixing made of perforated brick
• FOR VARIOUS BUILDING MATERIALS The mounting system is approved in combination with the FIS EM Plus, FIS V, FIS SB and FIS Green injection mortar for secure attachment in a variety of building materials, including concrete, perforated brick, hollow block of lightweight concrete and aerated concrete
• Areas of application: with a Thermax you can cover usable lengths from 62 to 290 mm, making it ideal for separate thermal attachment of heavy loads, such as air conditioners, French balconies, satellite systems and much more. Suitable for:

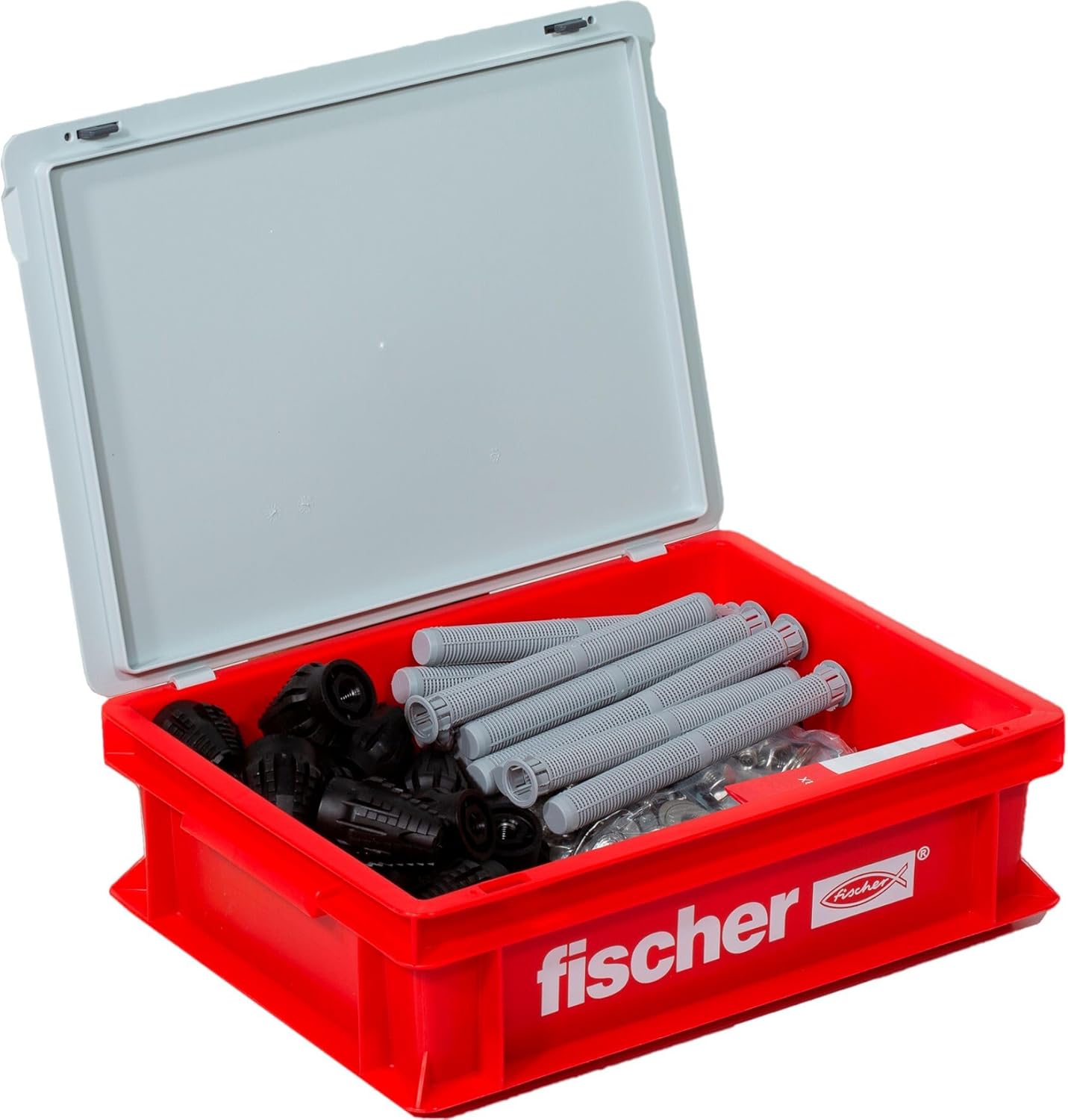

• Contents: 25 threaded rods M12 x 207, 25 insulating cones, 25 grits, M12 x 50, A4, 25 mesh dowels, 20 x 130, 25 nuts M12, A4, 25 rosettes A4, 6 hexagonal inserts, 6 hand milling cutters, instruction manual (ITA)
