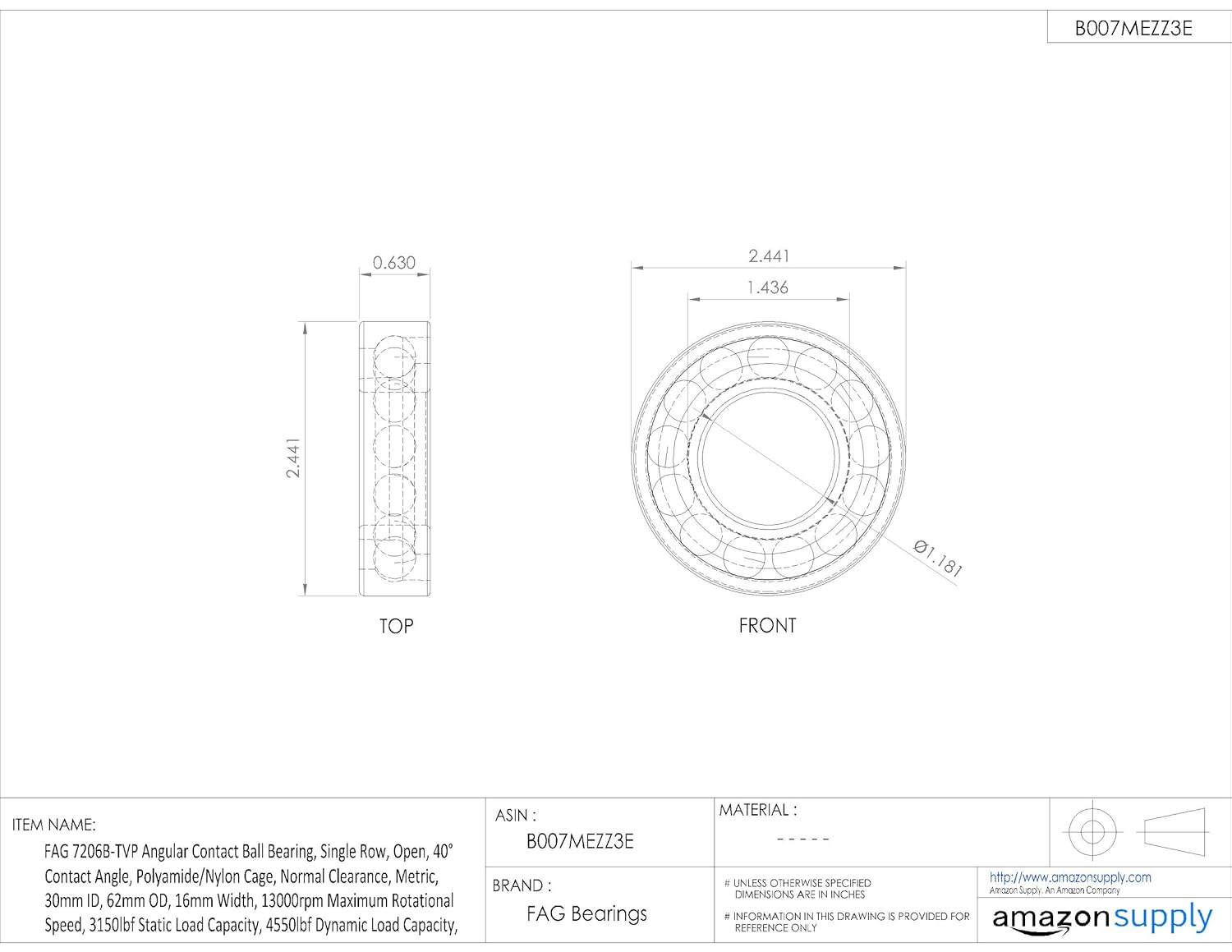

FAG 7206B-TVP Angular Contact Ball Bearing, Single Row, Open, 40° Contact Angle, Polyamide/Nylon Cage, Normal Clearance, Metric, 30mm ID, 62mm OD, 16mm Width, 13000rpm Maximum Rotational Speed, 3150lbf Static Load Capacity, 4550lbf Dynamic Load Capacity,

The FAG single-row, open, angular contact bearing has asymmetric races with a 40-degree contact angle to support both axial and radial loads. It has a CN (normal) radial internal clearance for applications that do not involve thermal expansion, and its polyamide/nylon cage evenly spaces the rollers for even load distribution and prevents contact to reduce friction, vibrations, and noise. It has an open configuration for lubrication in place and applications involving negligible exposure to dirt, grime, debris, and other contaminants. This angular contact ball bearing is suitable for use in applications that involve combined radial and axial loads, and a need for high running accuracy and stiffness at high rotational speeds. These applications include clutches, drives, gearboxes, compressors, pumps, turbines, and printing and textile machines, among others.SpecificationsMain bearing dimensionsDIN 715Basic dynamic load ratingsDIN ISO 281Dimensional and geometric tolerancesDIN 620-3 (ISO 199), tolerance class PNThrough-hardening steel for inner and outer rings and rollersISO 683-17Steel strip for cageEN 10139, SAE J403Load carrying capacity and lifeDIN ISO 281 Appendix 1System for creating part numbers for rolling bearingsDIN 623-1Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others. FAG manufactures a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance. The company, founded in 1883, is based in Schweinfurt, Germany.

• Axially asymmetric races with a 40 degree contact angle to support both axial and radial loads
• CN (normal) radial internal clearance for applications that do not involve thermal expansion or atypical precision
• Polyamide/nylon cage evenly spaces the rollers for even load distribution and prevents contact to reduce friction, vibrations, and noise
• Open bearing for lubrication in place and for use in applications with little exposure to dirt, grime, debris, and other contaminants
