ESP32-S3 7inch Touch LCD Development Board, 1024×600 65K Color IPS Display, 32-bit LX7 Dual-core Processor, up to 240MHz Frequency, Support 2.4GHz Wi-Fi and BLE 5, Backlight Adjustable

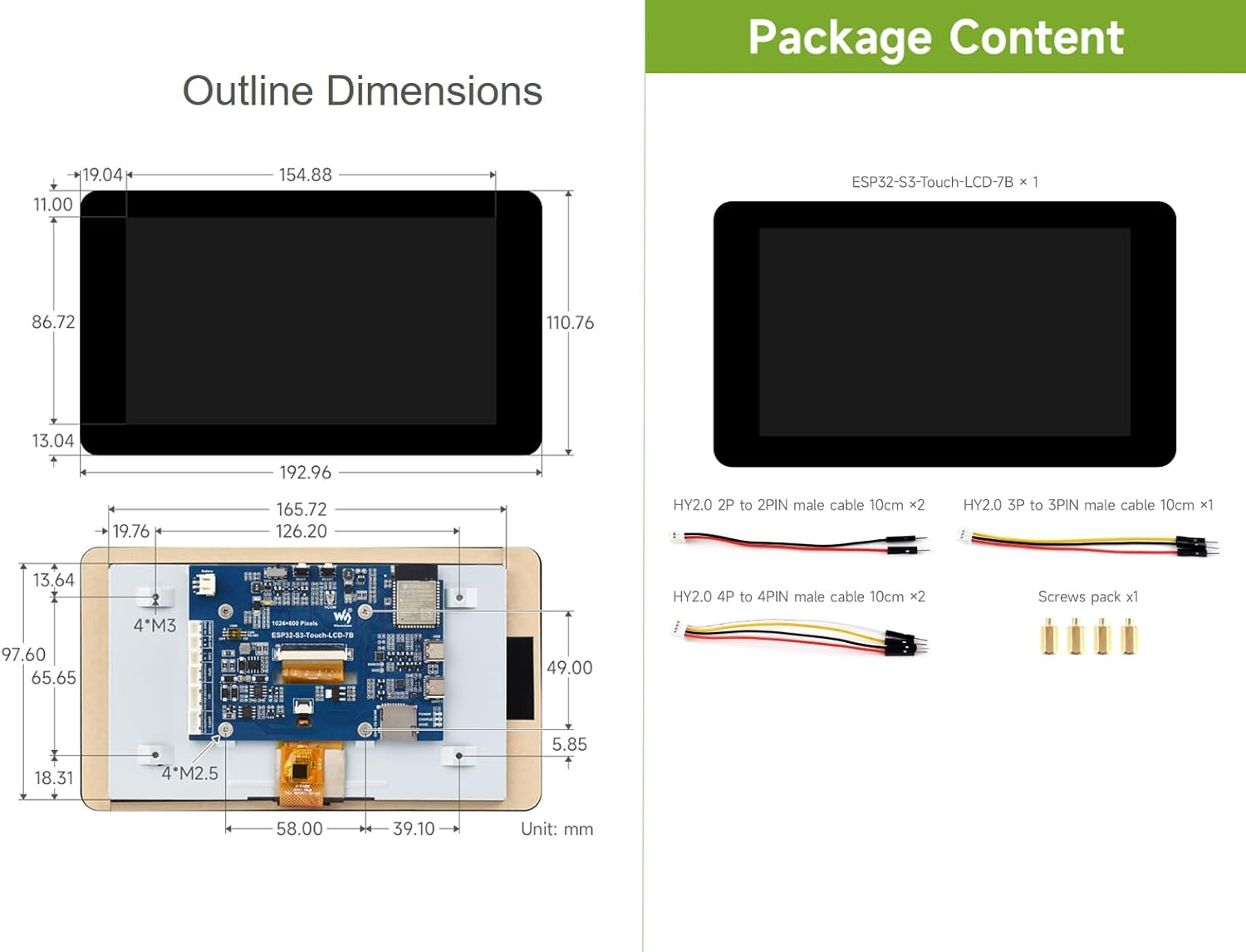

Overview ESP32-S3-Touch-LCD-7B is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications. Features --Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency --Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna --Built-in 512KB S-R-A-M and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM --Onboard 7inch LCD display, 1024 × 600 resolution, 65K color --Supports 5-point capacitive touch control via I2C interface, with interrupt support --Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port --LED indicators for easy monitoring of power status and battery charging status --Supports backlight adjustment and real-time battery voltage monitoring --Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios Package Content ESP32-S3-Touch-LCD-7B × 1 HY2.0 2P to 2PIN male cable × 3 HY2.0 3P to 3PIN male cable × 1 HY2.0 4P to 4PIN male cable × 2 Screws pack × 1 * Note: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

• ESP32-S3 7″ LCD development board equipped with high-performance 32-bit LX7 dual-core processor, up to 240MHz main frequency, support 2.4GHz Wi-Fi and Bluetooth 5, built-in 512KB S-R-A-M and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
• ESP32-S3 with 7inch touch LCD, can smoothly run GUI programs such as LVGL, 1024 × 600 resolution 65K color display, supports 5-point capacitive touch control via I2C interface, with interrupt support
• Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port. Supports the expansion of multiple peripherals via Sensor, CAN, RS485, and I2C interfaces, suitable for rapid development of ESP32-S3 HMI applications
• Supports backlight adjustment and real-time battery voltage monitoring. LED indicators for easy monitoring of power status and battery charging status
• Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios.Supports accurate control such as flexible clock and multiple power modes
