ER20 D80 Metal Water Cooled Spindle Motor Kit 2.2KW(800Hz-24000rpm,380v Fast)
Product details
| Management number | 211304308 | Release Date | 2026/04/04 | List Price | $664.82 | Model Number | 211304308 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

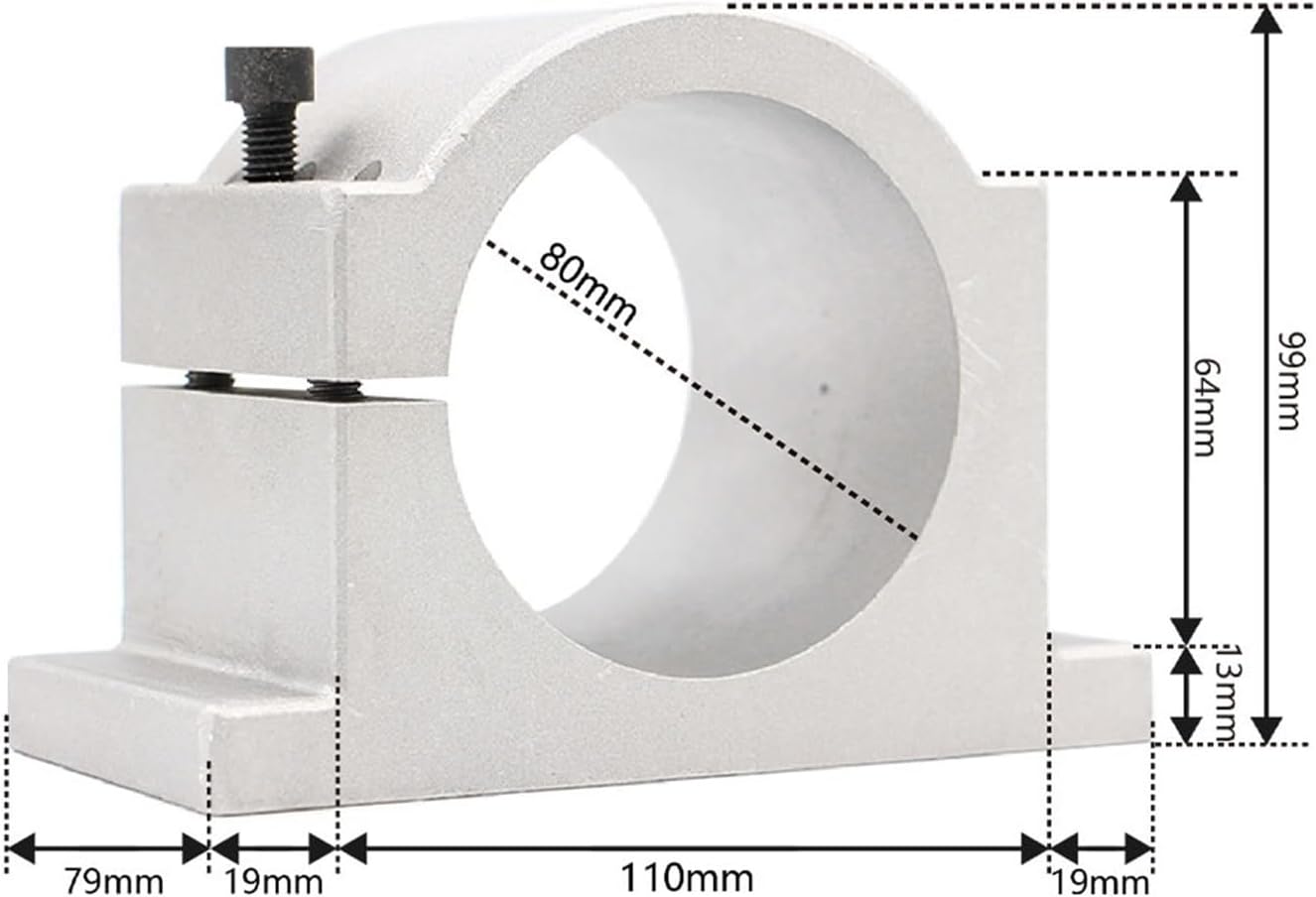

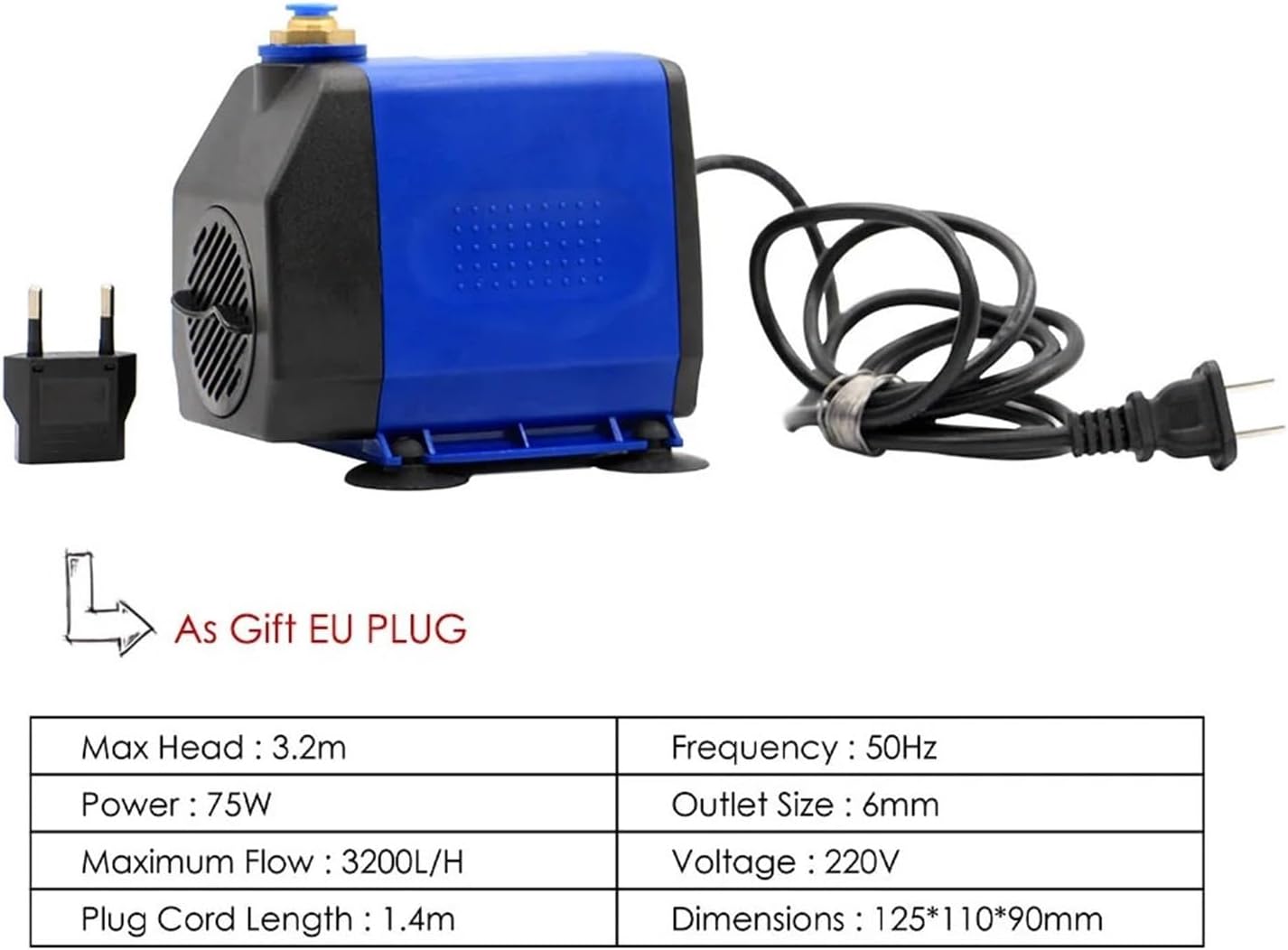

Mandrels1X 2.2KW ER20 water-cooled 80mm metal spindle 400Hz/800Hz poles = 4Diameter = 80mm1X 2.2KW BD600 VFD1X 75W water pump1x 80mm spindle bracketSize: 80x247mm (midbody diameter: 80mmx length: 247mm)Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.Cooling method: water coolingPower: 2.2kwVoltage: 220VCurrent: 10AFrequency: 800HzSpeed: 12000-24000rpm- Poles: 4Runout: less than 0.01mmDiameter(mm):80Bearing type: 2 x 7005 P4 DT and 2 x 7003 P4 DT4 ceramic ball bearings fully sealed angular contact bearingsChuck ER20Clamping knife diameter: 13mm, 12mm, 12.7mm, 11mm, 10mm, 9mm, 8mm, 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)Water-cooled ER20 chuck blockInput voltage: 220V (+/-15%)Input frequency: 50/60HzInput phase: single phase or three phaseOutput voltage: 220vACOutput frequency: 0-1000HzOutput current: 10AOutput phase: 3 phases
- Mandrels
| Department | unisex-adult |
|---|---|
| Item Weight | 4.6 ounces |
| Manufacturer | IPDBLBYL |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | IPDBLBYL |
| Package Dimensions | 4.33 x 4.33 x 4.33 inches |
