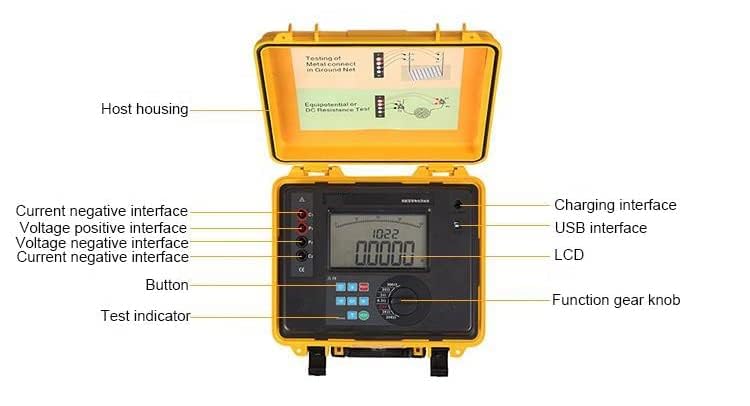

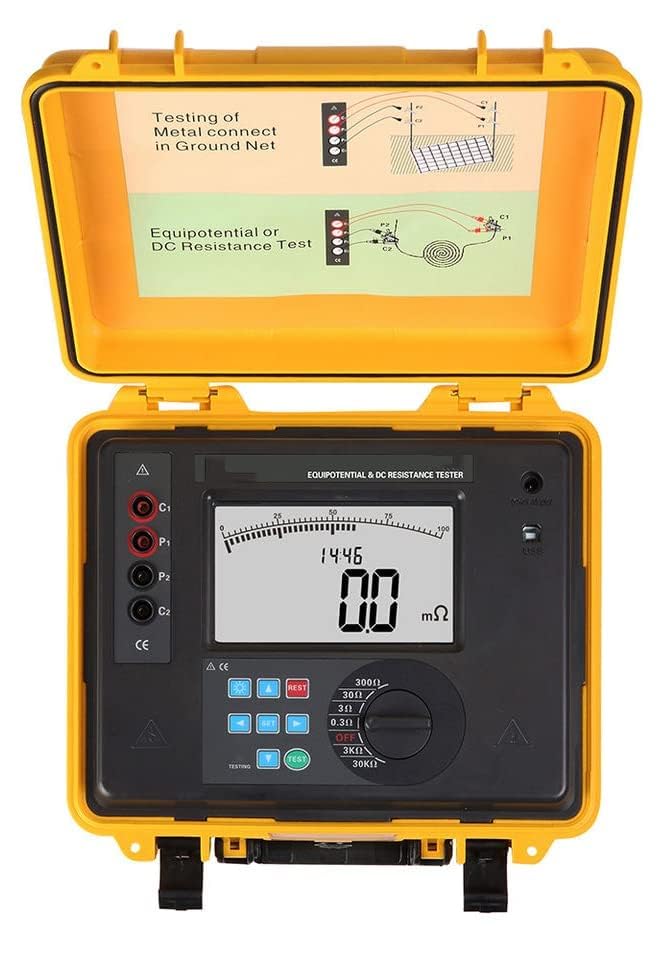

Equipotential Bonding Resistance Tester Contact DC Resistance Test with Measuring Range 1mΩ to 30.0kΩ Test Current ≥4A LCD Display Waterproof Protection Box

YFYIQI Equipotential Bonding Resistance Tester Contact DC Resistance Test with Measuring Range 1mΩ to 30.0kΩ Test Current ≥4A LCD Display Waterproof Protection BoxProduct Description: 1. Adopt precise 4-wire method to measure, measurement more accurate.Micro ohmmeter function 2. Supper large LCD display, bar diagram indication, clear at a glance. 3. Alarm function, clock function, storage function, data upload function, storage data can be uploaded to computer, save and print. Technical Specification: Measuring Range:1mΩ~30.0kΩ Feature:Full range measurement Test Current: ≥4A Power Supply：DC 7.4V 2.6Ah, rechargeable lithium battery, full charge about 8.4V Detection Mode：Precision 4-wire method, two channel A/D simultaneous detection Data Storage：400 groups (Power down or replace battery will not lose the data) Data Hold：The test result is kept to display automatically after each test Test Wire ：4PCS: red and black each for 2PCS, each wire length 5M Backlight Function：Yes, suitable for the dim place Clock Function：With 24-hour time system, display hour, minute Alarm Critical value setting range: 1Ω-30Ω Display Mode：LCD: 128mm×75mm Host Size：215mm×178mm×83mm Weight：950g USB Interface：With USB interface, software monitoring, storage data can be uploaded to computer, save and print. Working Temperature：-10℃~40℃;below 80%RH

• (1)Measuring Range: 1mΩ~30.0kΩ
• (2)Data Hold,Backlight Function,Clock Function
• (3)Adopt precise 4-wire method to measure, measurement more accurate. Micro ohmmeter function

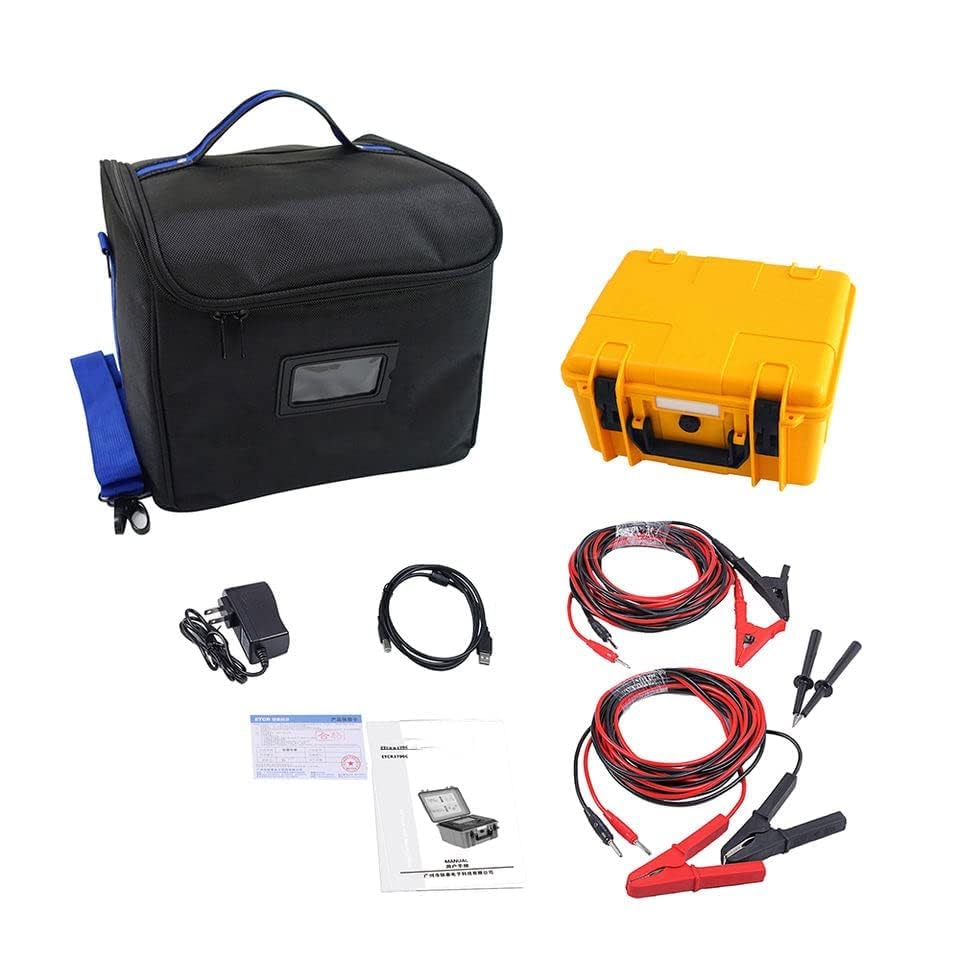

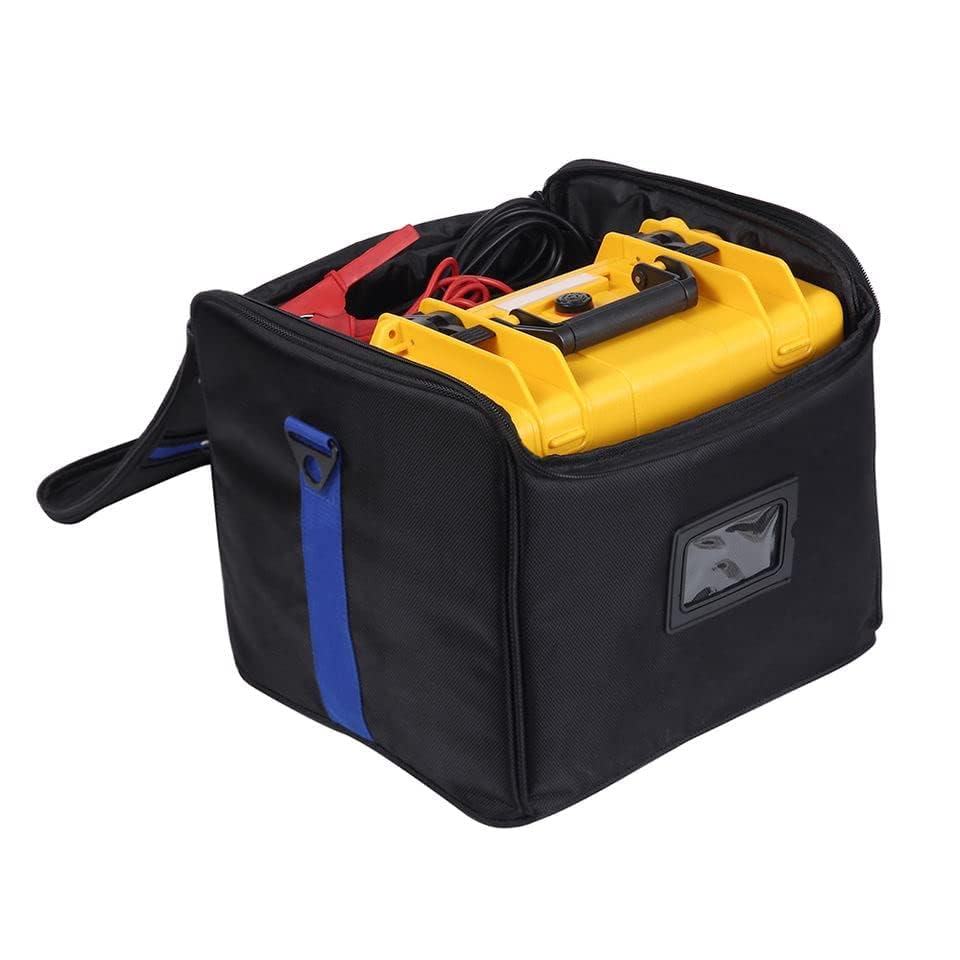

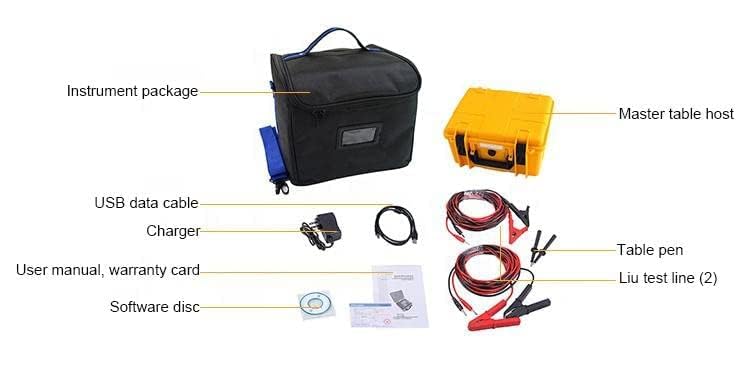

• (4)Package with waterproof protection box, waterproof, crash proof, anti-drop and durable, large-capacity rechargeable lithium battery pack, especially suitable for use at outdoor construction site.
• (5) Data Storage 400 groups (Power down or replace battery will not lose the data)
