Drill Bit Grinding Machine Drill Bit Grinder Drill Bit Sharpener Industrial Drill Bit Angle Grinding for ф3-ф13mm Drill Bits 13A

Parameters: Grinding Range: ф3-ф13 Point angle: 100°(95°)-135° Power: 110V, 60HZ Motor: 120W Speed: 4400rpm Grinding Wheel: CBN (For HSS) Weight: 9KG Features: 1. Grinding is accurate and rapid, easy operation with no skill to grind. 2. Economical price that greatly reduces the cost and improves the use effect. 3. With CBN grinding wheel, it can be equipped directly with an accurate angle and long service life. 4. The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life. 5. The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.

• 【Easy to Operate】The drill bit grinder has a static point (the center) sizing, drilling can be done effectively with the material, the quality and accuracy of the work piece can control and extend the life of the drill bit. The diameter of suitable drill bits are ф3-ф13mm. Featured with simple operation, without skills can easily grind.

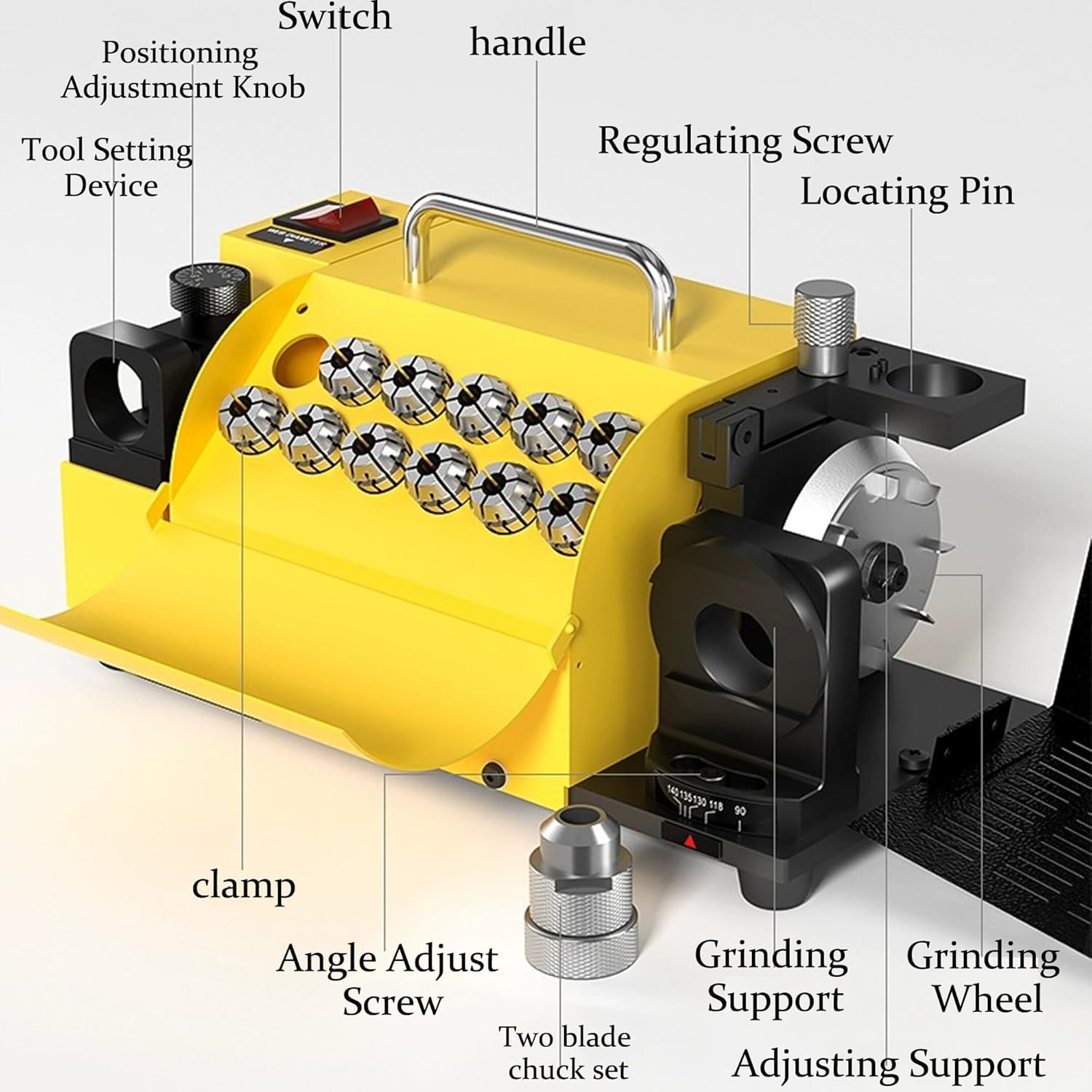

• 【with 11 built-in collets】This machine has a tip angle (vertex), escape clearance angle (the angle), the center free to adjust the size of the chisel edge, alternative center drill more accurate positioning. The 11 collets clamping stably, more accurate grinding.
• 【Adjustable Angle Grinding】The grinding Angle can be adjusted freely from 95° to 135° according to the required bit tip Angle to meet your different needs.
• 【High Quality Grinding Wheel】Using CBN (for HSS) grinding wheel, not only high hardness, wear resistance, but also good precision. The grinding wheel is simple to replace so that can be freely replaced.
• 【Pure Copper Motor】Adopt 120W powerful DC motor electronic control with frequency stabilization and strong power,which has high working efficiency.
