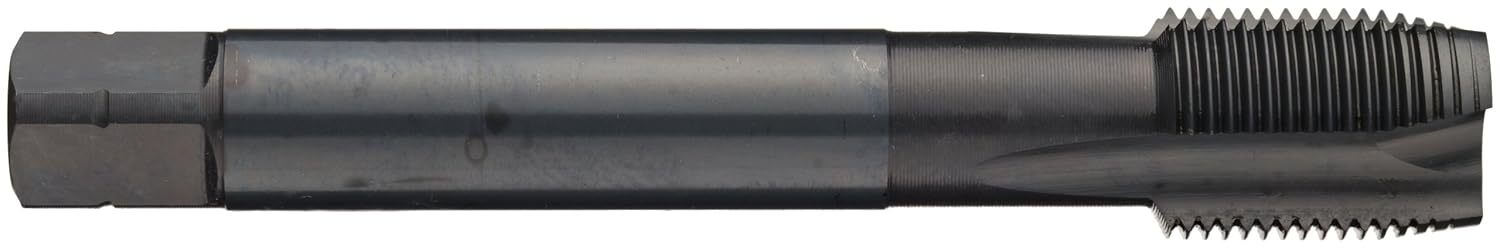

Dormer E041 Powdered Metal Pipe Tap, Straight Flute, BSP, Black Oxide Finish, Round Shank with Square End, Plug Chamfer, 3/8"-19 Thread Size

The Dormer MTT-X E041 powdered-metal steel pipe tap has straight flutes, a spiral point, black oxide finish, a plug chamfer, and a round shank with a square end, and is used to create British Standard Pipe Parallel (BSPP) right-hand threads in a number of materials, with best performance in steel. BSPP threads, also called the BSP G Series, is a standard thread configuration for parallel, or straight, pipe threads. The straight flutes of this tap are suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening). The black oxide finish improves lubricity, resists corrosion, and will not chip or flake. Black oxide also helps to prevent buildup and welding of material on the tap’s cutting edge when working with iron and steel. The plug chamfer eases tapping at the beginning of the hole and helps maintain correct perpendicular alignment with the workpiece for increased tool life.Right-hand threads are designed to tighten when a head or nut is rotated clockwise (the most common threading direction). Powdered-metal steel offers performance that approaches that of solid carbide tools but with the toughness and shock-resistance of high-speed steel. The round shank with square end helps to minimize rotation in the tool holder. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches. In the Dormer MTT-X E041 series, taps with nominal diameters of 1/8” to 3/8” have three flutes, and taps with nominal diameters of 1/2” and 3/4“ have four flutes. In this series all taps have plug chamfers. This tool conforms to Dormer ISO standards and can create threads to a depth two-and-a-half times its diameter. It is suitable for normal pipe thread tolerance.Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others. Dormer Pramet manufactures cutting tools under the following brands: Precision Twist Drill, Dormer, Union Butterfield and Pramet. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.

• Pipe tap cuts threads in pipes and pipe fittings
• Spiral point tap with straight flutes for cutting threads in through holes
• Black oxide finish improves lubricity, resists corrosion, and helps prevent buildup
• Powdered-metal steel for performance approaching that of solid carbide tools, with the toughness and shock-resistance of high-speed steel
• Produces British Standard Pipe Parallel (BSPP) threads for straight pipe threading
