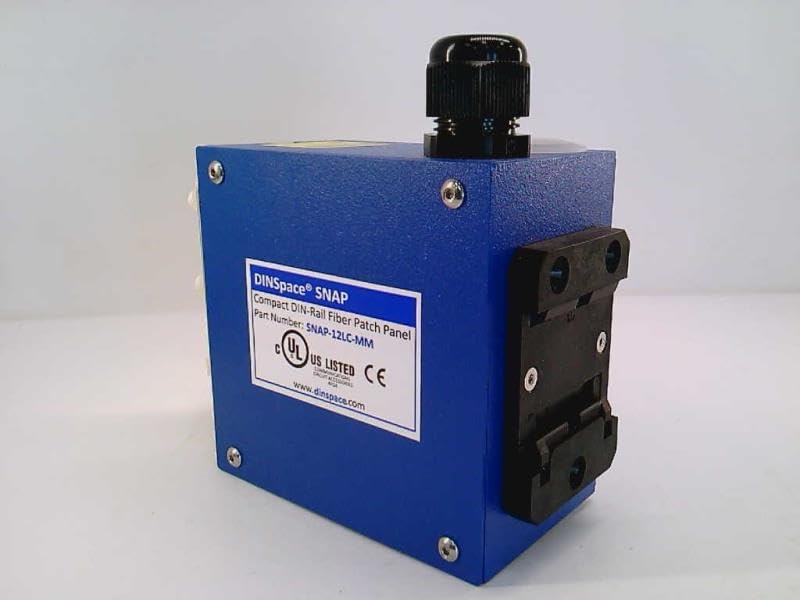

DINSpace Compact Fiber Optic Patch Panel, Blue, Steel, Water Resistant, Includes 3ea. OM1/OM2 Multimode LC/LC Quad Adapters, Splice Tray
Product details
| Management number | 215634327 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 215634327 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DINSpace SNAP Compact Fiber Optic Patch Panel with 3ea. OM1/OM2 Multimode LC/LC Quad Adapters, UL/CE. Compact Fiber Optic Patch Panel rear or side DIN-Rail mount or Surface mount with 2ea. cable glands max. cable diameter of 12mm (14mm max. also available special order). Compact size allows minimum space requirements within control cabinetry. Device includes a splice tray to allow standard fusion splicing of field cabling (pigtails sold separately). Device features a sliding faceplate with capture mechanism to allow patch panel to be kept open “hands-free”. Relative humidity (non-condensing): 10% to 95%. Insertion Loss: 0.3dB (Multimode), and 0.2dB (Singlemode). Storage/transport temperature: -40 to +80 deg. C
- DIN-Rail or Surface Mount
- UL Listed 1863 (Communications-Circuit Accessories), CE
- Lifetime warranty on materials and workmanship
- 18 gauge powder-coat painted steel Enclosure
- IP20 Ingress Protection
| Color | Blue |
|---|---|
| Style | Compact |
| Material | Alloy Steel |
| Brand Name | DINSpace |
| Unit Count | 1 Count |
| Finish Type | Powder Coated |
| Item Weight | 1.8 Pounds |
| Manufacturer | DINSpace |
| Model Number | SNAP-12LC-MM |
| Installation Type | Screw-In |
| Specification Met | Ul,ul/Ce |
