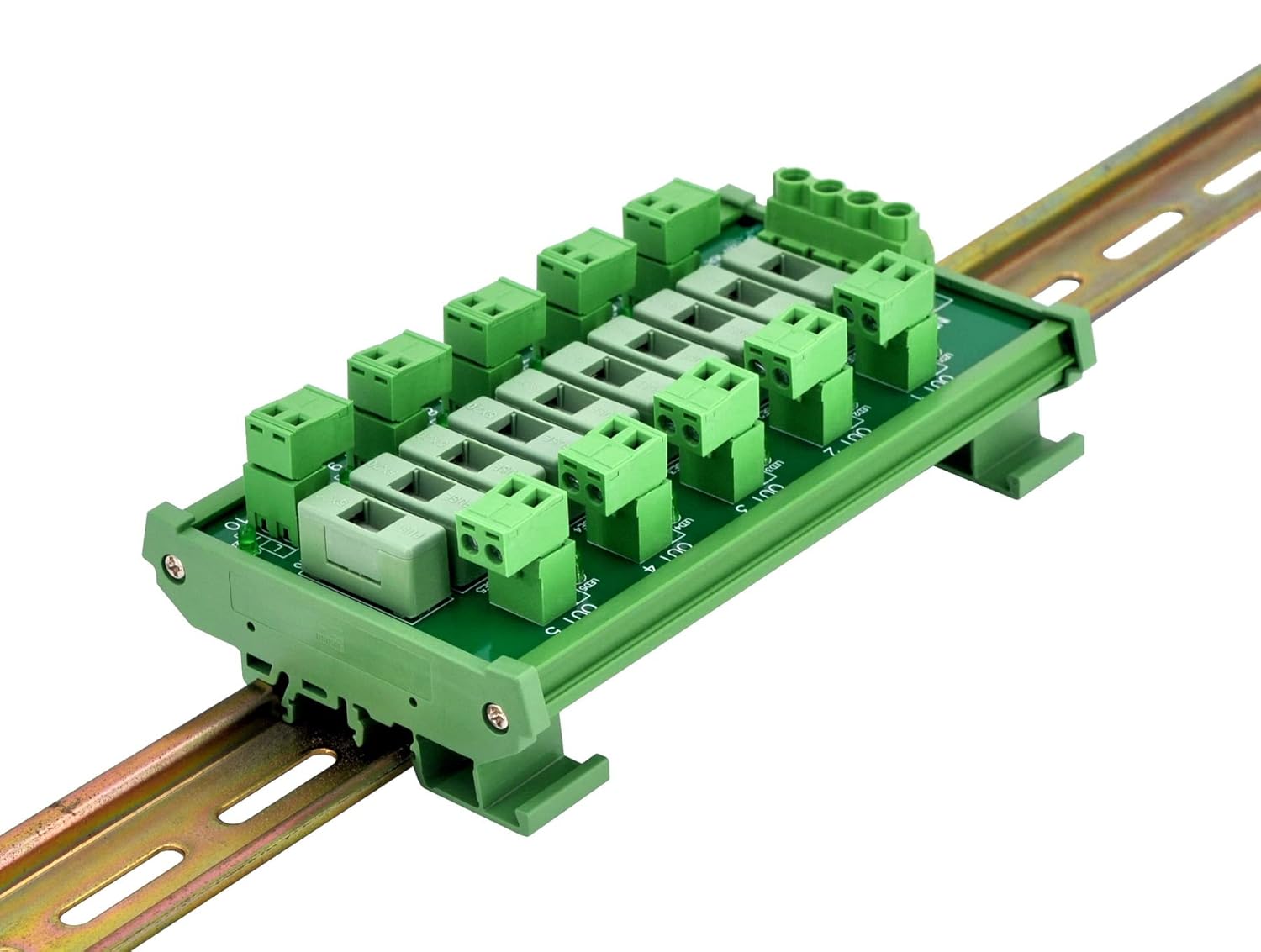

DIN Rail Mount Fused AC 24-250V 10 Position Pluggable Terminal Block Power Distribution Module
Product details
| Management number | 211063041 | Release Date | 2026/04/04 | List Price | $18.00 | Model Number | 211063041 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Operating voltage AC 24 to 250V. Maximum total input / output current 20 Amp. 2, Input: Maximum current 20 Amp for per position. Double positions L and N polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw. 3, Output: 10 position pluggable terminal blocks. Maximum current 6.3 Amp for per position (factory pre-installed is slow blow 6.3Amp 5x20mm glass tube fuses). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw. 4, Fuse holder support 5x20mm tube fuse, the fuse can be replaced very easily. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off. 5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm, 32mm or 15mm rail. FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier.
- Operating voltage AC 24 to 250V. Maximum total input / output current 20 Amp.
- Input: Maximum current 20 Amp for per position. Double positions L and N polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw.
- Output: 10 position pluggable terminal blocks. Maximum current 6.3 Amp for per position (factory pre-installed is slow blow 6.3Amp 5x20mm glass tube fuses). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

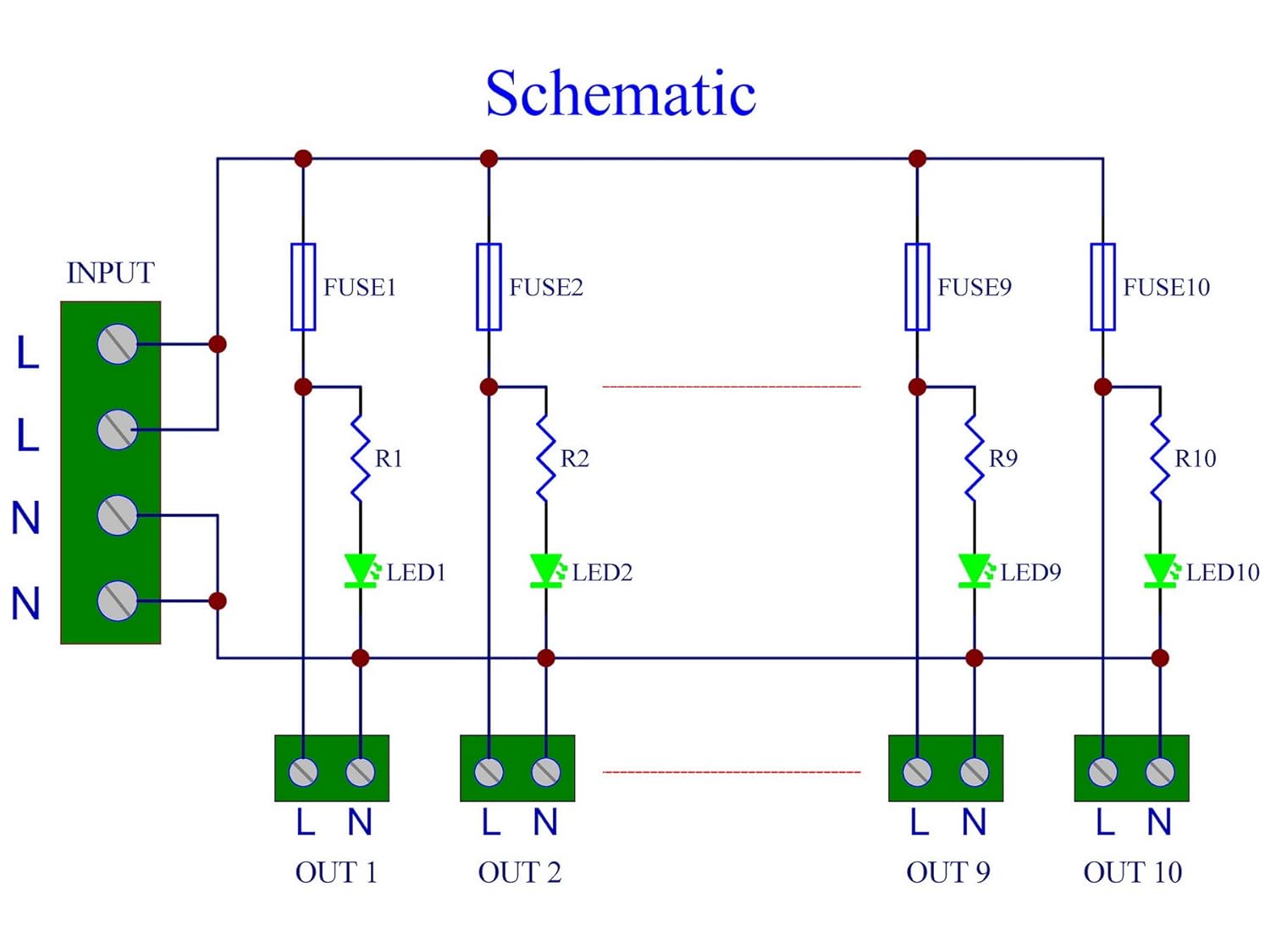

- Fuse holder support 5x20mm tube fuse, the fuse can be replaced very easily. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off.
- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm, 32mm or 15mm rail. FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier.
| Brand Name | OONO |
|---|---|
| Phase Type | Single Phase |
| Manufacturer | CZH-LABS |
| Material Type | Nylon |
| Maximum Current | 20 Amps |
| Number Of Circuits | 10 |
| Included Components | AC Power Distribution Module |
