DIHOOL 200 Amp DC Breaker, 240V Battery Disconnect Switch, Thermal Magnetic Trip for Main Power Station Solar System, UPS
Product details
| Management number | 210755445 | Release Date | 2026/04/02 | List Price | $15.15 | Model Number | 210755445 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

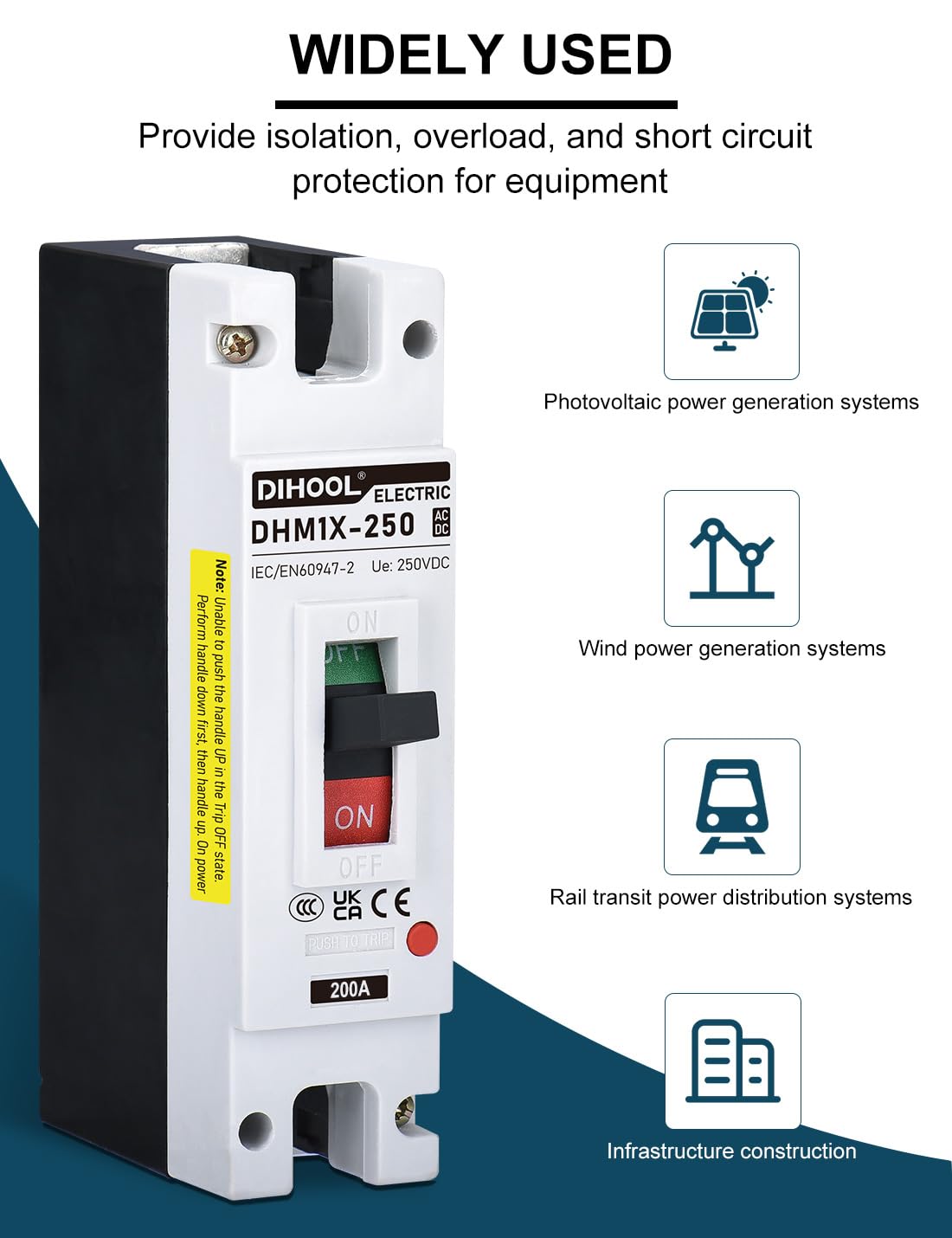

- Function: Thermal Magnetic Trip, circuit overload protection, isolation circuit, circuit short circuit protection
- 30% silver content in moving contacts, 45% silver content in stationary contacts
- Working voltage: DC 12V~250V AC 90~240V short-circuit breaking capacity 25kA
- Size:164MM x 43MM x 108MM, It needs to be installed on the panel through screws

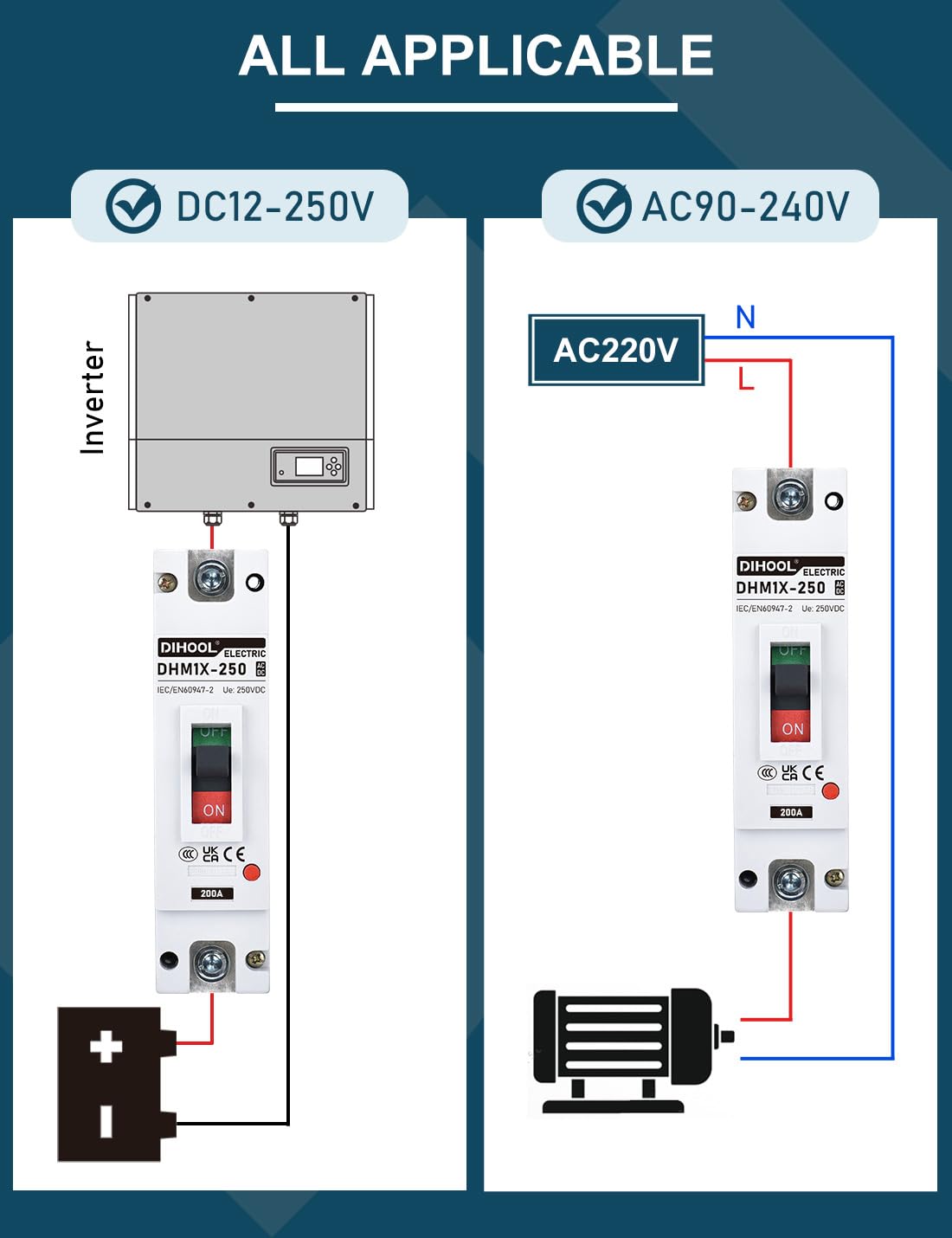

- Suitable for DC application such as photovoltaic / UPS / battery / Datacenter etc.
| Model | DH M1X 1P 200A |
|---|---|
| Voltage | 240 Volts |
| Brand Name | DIHOOL |
| Item Weight | 0.9 Kilograms |
| Part Number | USA-DHM1X-1P-200A |
| Manufacturer | DIHOOL ELECTRIC |
| Mounting Type | Surface Mount |
| Current Rating | 82.88 Amps |
| Number of Poles | 1 |
| Included Components | Arc barrier |
| Circuit Breaker Type | Standard |
| Item Dimensions D x W x H | 3.35"D x 1.69"W x 6.54"H |
