Clamp Earth Resistance Tester Ground Resistance Clamp Meter Measurement with Resistance Range 0.010Ω to 1200Ω Resistance Resolution 0.001Ω

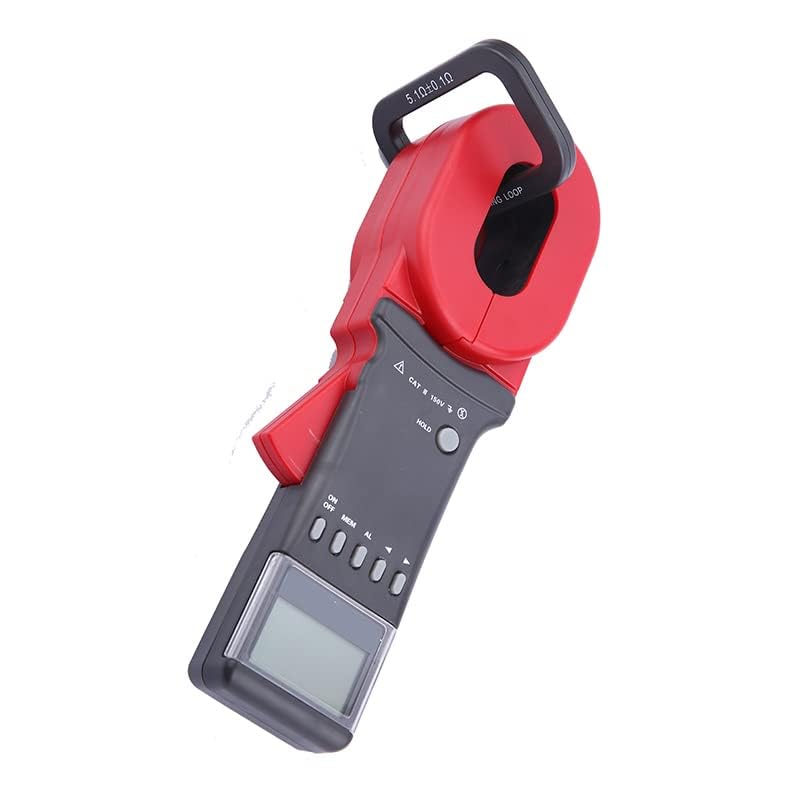

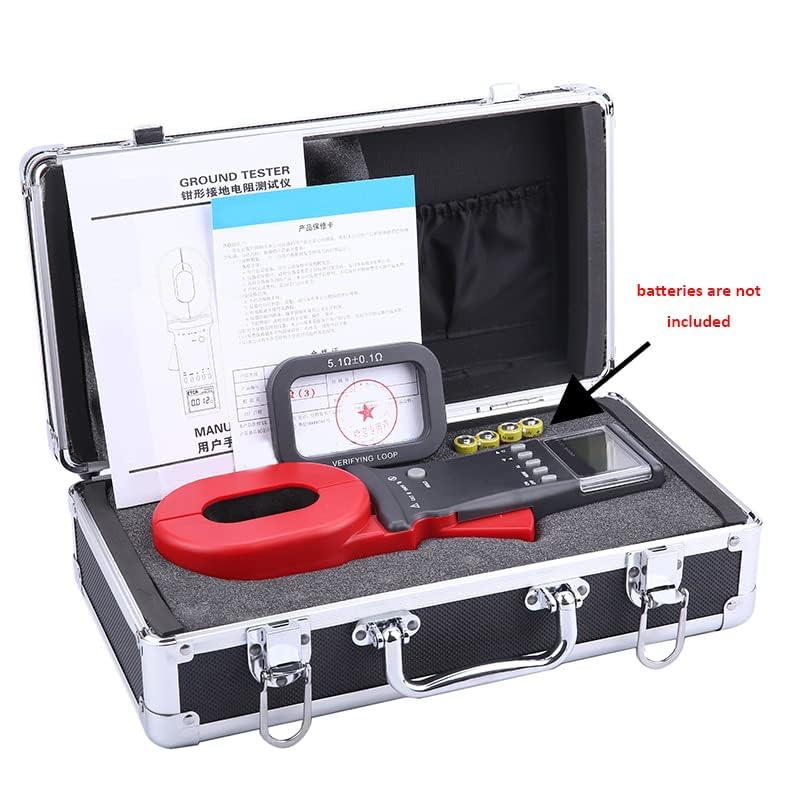

QIUSUO Clamp Earth Resistance Tester Ground Resistance Clamp Meter Measurement with Resistance Range 0.010Ω to 1200Ω Resistance Resolution 0.001Ω Overview: This clamp grounding resistance tester is a large caliber, large range of grounding resistance clamp meter, jaw specifications 65 × 32mm, resistance range 0.01-1200, to meet the daily large range of resistance measurements, resolution of 0.001Ω, accuracy of ± (1% +0.01Ω), fully automatic range, at the same time to meet the small-range high-precision environment to use, the instrument also has a data retention and storage The instrument is also equipped with data retention and saving, as well as alarm setting function. Technical specification Resistance range 0.01-1200Ω, resolution of 0.001Ω ;Accuracy ± (1% + 0.01Ω) Clamp Size:65mm×32mm Tester Size:285mm×85mm×56mm Tester Weight :1160g(With batteries)(batteries not included during the shipment!!!) Power SupplyDC: 6V ( 4 PCS of LR6 Alkaline batteries) Time for single measurement:0.5 second LCD Screen:4 Digits LCD display,Screen L×W: 47mm×28.5mm Data memory:99 Sets Audible and visible alarm:“du—du—du” for alarming , press AL for on/off Alarm:Threshold Setting Range Resistance:1-199Ω Protection class:Double insulation Shift:Automatically External magnet / electric field:<40A/m;<1V/m Frequency for resistance test:>1KHz RS232 Interface:Optional Accessories:Meter: 1 piece; Test Ring: 1 Piece; Meter Suitcase: 1 Piece

• Sound and light alarm function, data storage, data retention function.
• A major breakthrough in grounding resistance testing technology, non-contact measurement is safe and fast.
• In the measurement of the grounding system with a loop, without disconnecting the grounding lead, without auxiliary grounding pole, saving time and effort.
• Clamp grounding resistance meter can measure the ground fault which can not be measured by traditional methods, and can be applied to the occasions which can not be measured by traditional methods.

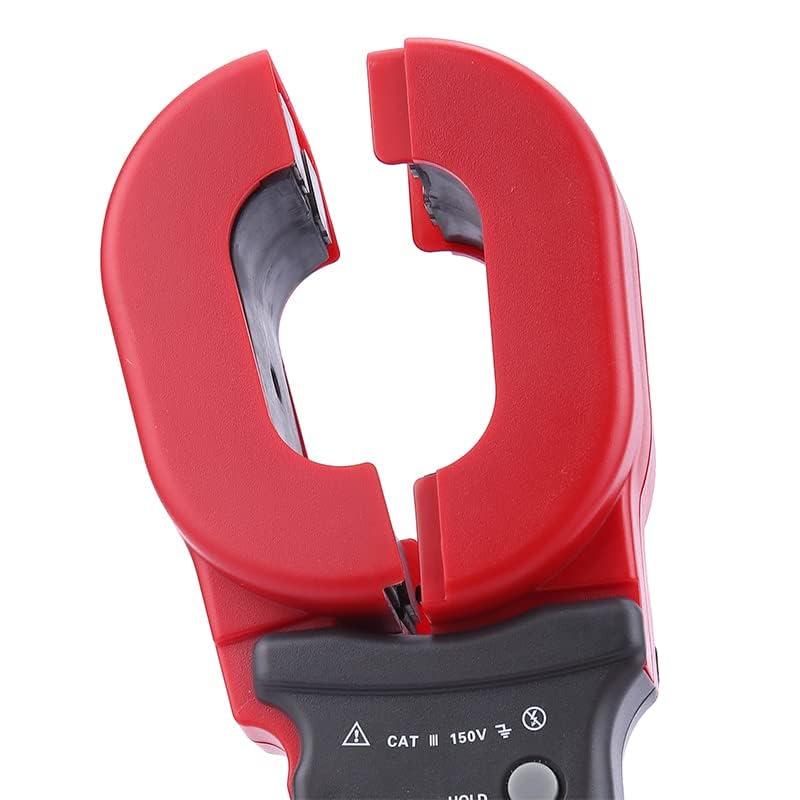

• This is a large caliber, large range of grounding resistance clamp meter, jaw specifications 65 × 32mm, resistance range 0.01-1200, can meet the daily large range of resistance measurement, resolution 0.001Ω, accuracy ± (1% + 0.01Ω), fully automatic range, while meeting the small range of high-precision environmental use, the instrument also has a data retention and preservation, as well as the alarm setup function.
