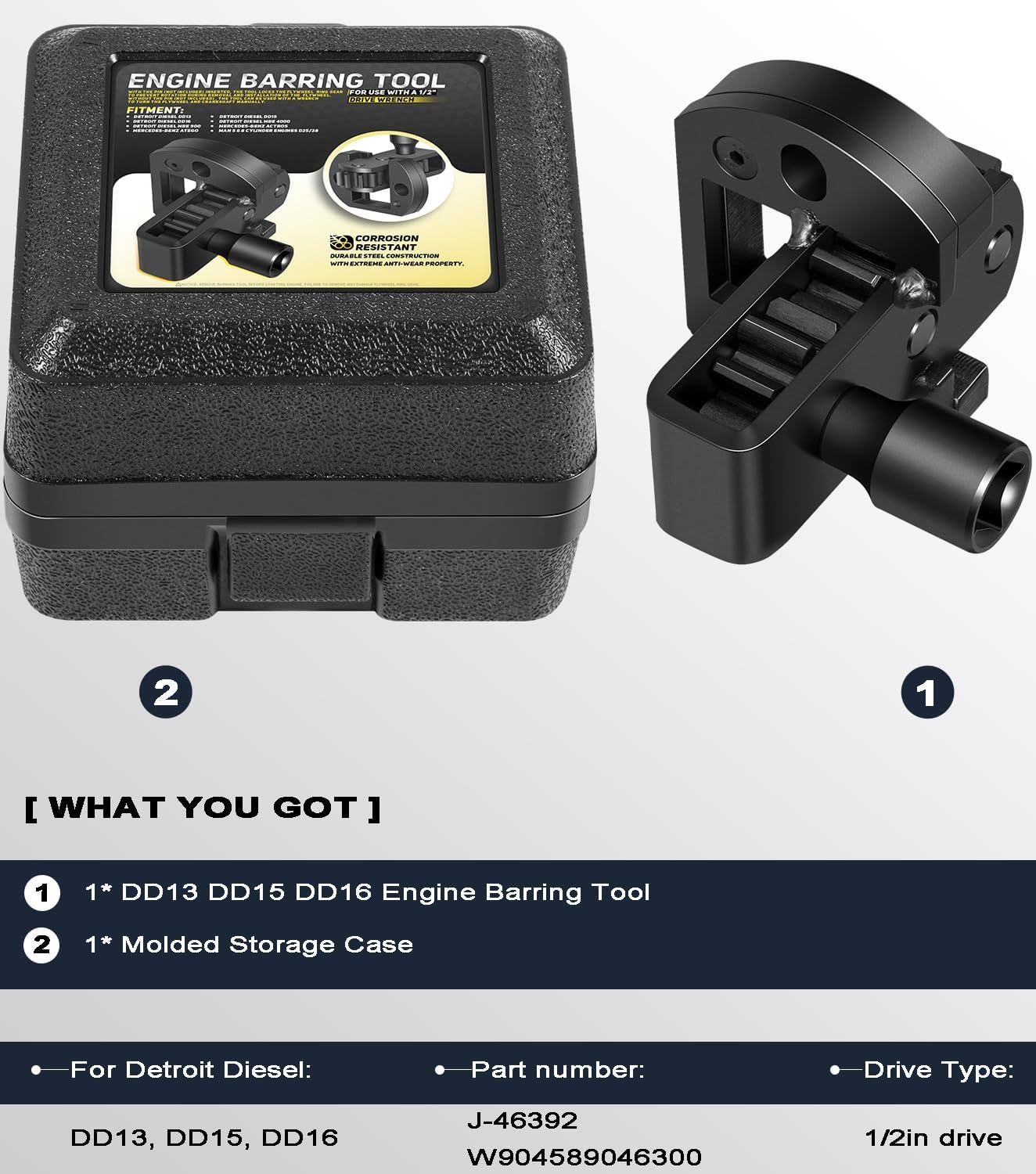

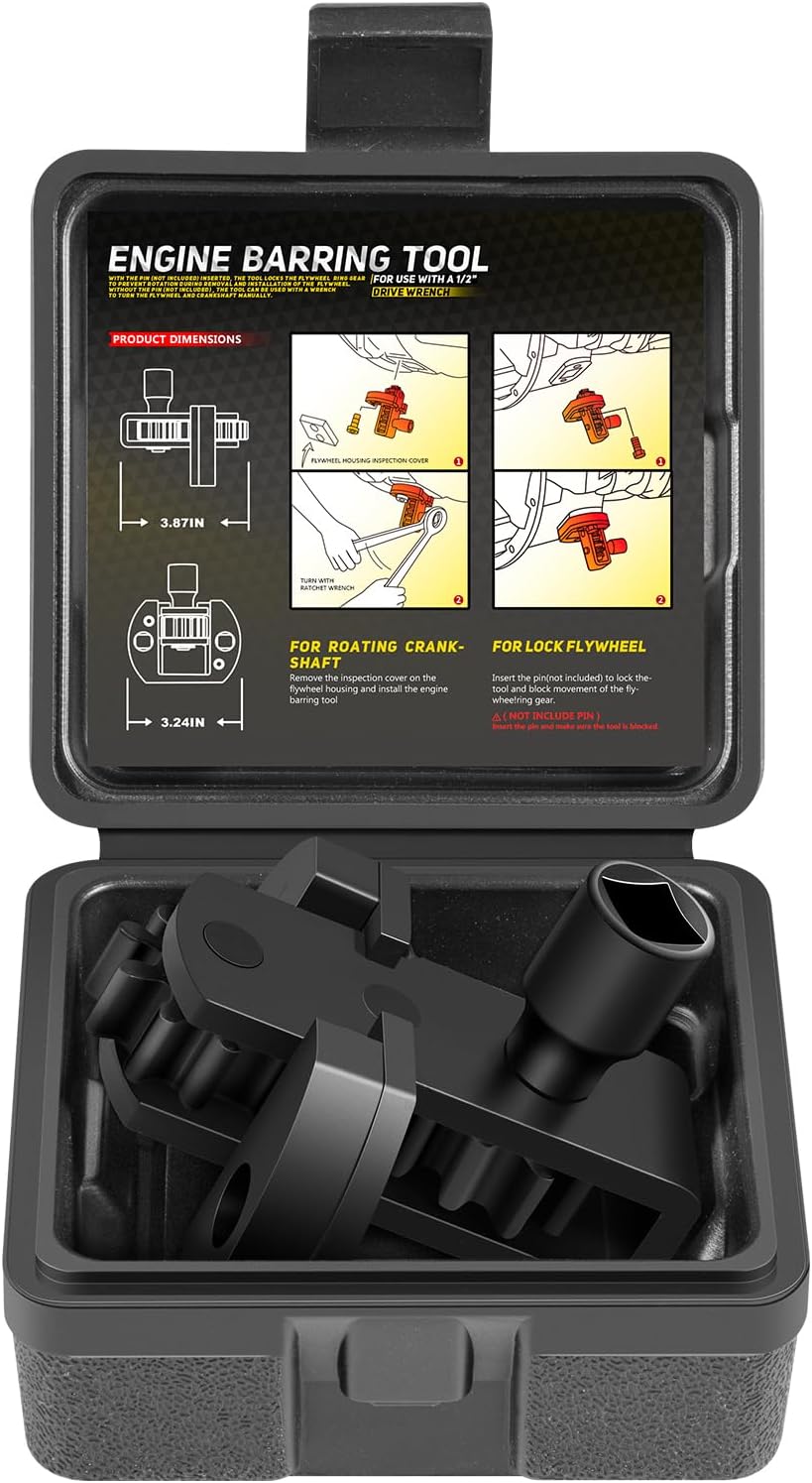

Camoo J-46392 Engine Barring Tool, Engine Turning Tool with Storage Box for Detroit Diesel DD13, DD15, DD16, MBE4000, MBE900 Alternative to J-46392 W904589046300 Flywheel Cranking Turning Tool

FEATURES1. This tool is used to allow precise positioning of the crankshaft for timing purposes. 2. Used to bar the engine over for service procedures3. Installs to engage the flywheel teeth and rotate the engine using standard square drive hand tools.Engine Barring Tool Installation1. Remove the two bolts holding the inspection cover to the flywheel housing.2. Remove the pin (not included) from the engine barring tool (J–46392) .3. Install the tool in the flywheel housing and secure with two bolts of sufficient length.Note: The inspection cover bolts are not long enough to install the engine barring tool. Longer ones will be needed.4. As needed, insert the pin (not included) to lock the tool and block movement of the flywheel ring gear.Remove the engine barring tool (J–46392) as follows:‪NOTICE: The engine barring tool must be removed from the timing case before starting the engine. Failure to do so could damage the flywheel ring gear.‪1. Remove the two bolts and the barring tool from the flywheel housing. It is not necessary to remove the pin (not included) .2. Install the inspection cover on the flywheel housing with the two bolts. Tighten the bolts 25 N·m (18 lb·ft)-MBE 4000 for example.Package Included: 1 J-46392 Engine Barring Tool Alt. We committed to providing you a more wonderful service concept. Thanks for your click!Go Click the BUY NOW Button and Get This Awesome Tool now!

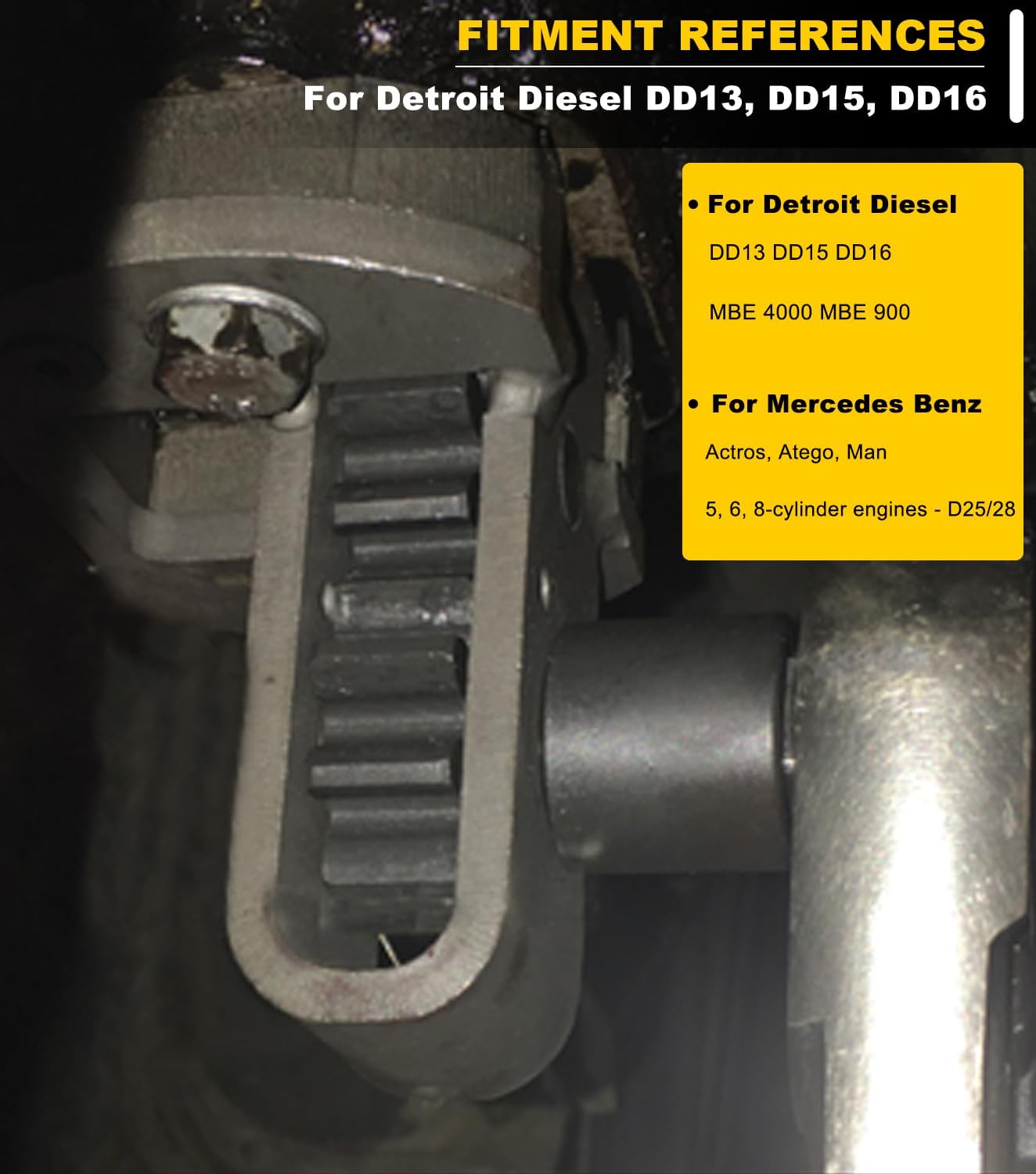

• APPLICATION -- Used with 1/2" drive wrench. For Detroit Diesel DD13 DD15 DD16 MBE 4000 MBE 900, for Mercedes Benz Actros, Atego, Man 5, 6, 8-cylinder engines - D25/28.
• OEM QUALITY -- Comparable to the J-46392, W904589046300, W470589046300 Engine Barring Tool.
• FUNCTION -- Designed to used with a 1/2" drive wrench to turn the flywheel and crankshaft manually.
• MATERIAL -- Corrosion-resistant & Durable Steel construction with extreme anti-wear property.
• SATISFACTION GUARANTEE -- If you are not satisfied with Camoo products, simply return it for a full-refund in 30 days. Guarantee with 12 months warranty. No worry about buying!
