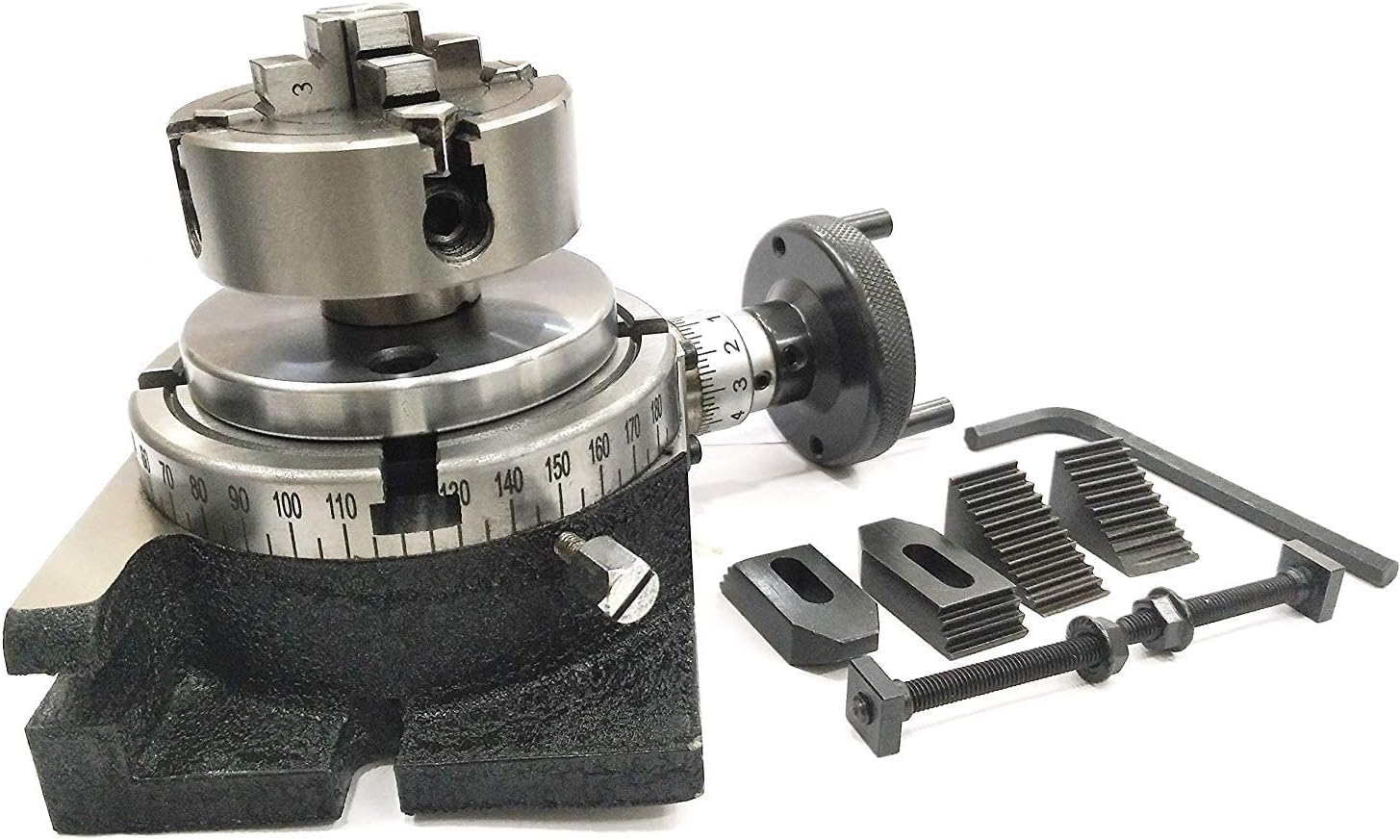

Buyohlic 4"/ 100 mm Regular Rotary Milling Table With Small Chucks and M6 Clamp Kit (with 65 mm 3 Jaws Self Centering Chuck & Clamp Kit)

Use of product- A rotary table is used to rotate a workpiece precisely during machining, allowing for accurate creation of circular features, angles, and indexing tasks. A chuck is used to securely hold and grip a workpiece on a machine tool, ensuring it remains stable and aligned during operations like turning, drilling, or milling. 4"/ 100 mm Rotary Table Very High Quality 4" /100 mm Regular Rotary Table designed for smaller milling machines Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Center Height in vertical position: 2-1/16" (50 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in Horizontal & vertical position. Chuck 65 mm 3 Jaw Self Centering Precision 65mm 3-Jaw Self-Centering Lathe Chuck Compatible with M14 x 1 mm threading Chuck 70 mm 4 Jaw Independent Precision 70 mm 4-Jaw Independent Lathe Chuck Compatible with M14 x 1 mm threading M6 Clamp Kit This M6 clamp kit is designed for use with 3" or 4" rotary tables. Includes a set of clamps, bolts, nuts, and T-slot nuts. Compatible with rotary tables featuring M6 T-slots or mounting holes. Allows for secure fastening of workpieces onto the rotary table during machining operations. Made of tool steel for durability and reliability. Provides essential holding power to maintain precision and accuracy.

• A rotary table is used to rotate a workpiece precisely during machining, allowing for accurate creation of circular features, angles, and indexing tasks. A chuck is used to securely hold and grip a workpiece on a machine tool, ensuring it remains stable and aligned during operations like turning, drilling, or milling.
• 4"/ 100 mm Rotary Table Very High Quality 4" /100 mm Regular Rotary Table designed for smaller milling machines Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Center Height in vertical position: 2-1/16" (50 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in Horizontal & vertical position.
• Chuck 65 mm 3 Jaw Self Centering Precision 65mm 3-Jaw Self-Centering Lathe Chuck Compatible with M14 x 1 mm threading
• M6 Clamp Kit- This M6 clamp kit is designed for use with 3" or 4" rotary tables. Includes a set of clamps, bolts, nuts, and T-slot nuts. Compatible with rotary tables featuring M6 T-slots or mounting holes. Allows for secure fastening of workpieces onto the rotary table during machining operations. Made of tool steel for durability and reliability. Provides essential holding power to maintain precision and accuracy.
