Auxbeam 12 Gang Switch Panel Bluetooth RGB AC-1200 with APP&Remote Control Toggle Momentary Pulsed Switch Pod Off Backlight for Truck Offroad 12-24V Waterproof 3 Years Warranty (Patent Registering)
Product details
| Management number | 210093246 | Release Date | 2026/04/02 | List Price | $108.80 | Model Number | 210093246 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- The AC-1200 12-Gang Switch Panel, a recipient of the SEMA Show Global Media Awards, offers enhanced control for your vehicle. Its distinct appearance is protected by a registered U.S. design patent.
- 【App Bluetooth Control】Control your car accessories not only through the switch panel but also via the Bluetooth app. Customize panel colors, adjust brightness, set icons (200 default icons/photo album DIY), and control 2 or more lights simultaneously by setting groups - just set it up on the app.
- 【Wireless Remote Control】AC-1200 12 gang switch panel includes a remote control, allowing you to access the accessories whether you are inside or outside the car. The remote control easily adheres to metal surfaces for quick access. It comes with pre-installed batteries for instant operation.
- 【Backlight Off&Automatic Dimmable】Bluetooth automotive switch panel has a mode button to easily turn the backlight on or off. If the backlight seems too harsh in dark environments, simply turn it off for a more comfortable visual experience. Adjust the backlight brightness manually via the app or rely on the panel's built-in light sensor for automatic adjustment.
- 【3 Modes & RGB Color】Multifunctional switch pod can be programmed to 3 lighting modes. TOGGLE mode provides constant lighting, MOMENTARY mode only works when a switch pod is pressed ,and PULSED mode offers a strobe effect. Auxiliary switch panel offers unlimited options for RGB backlight colors to match your vehicle's ambiance.

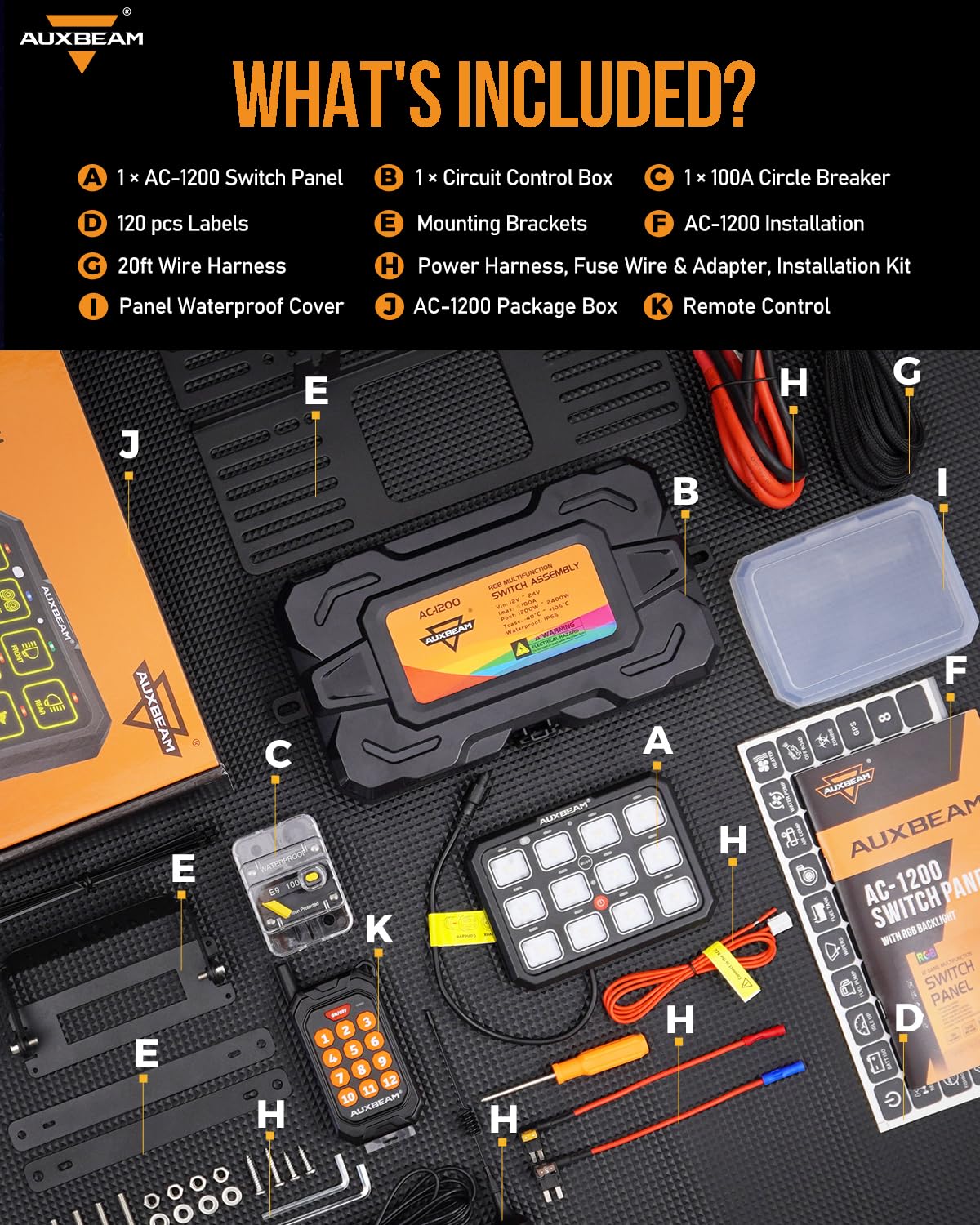

- 【Upgraded Accessories】AC-1200 switch controller can manage up to 12 gang automotive DC12-24V accessories. Even if you don't require all 12 channels right away, but have extra channels available for future expansion. The upgraded accessories include a circuit box with a built-in solid-state relay, a 100A circuit breaker, fuses, waterproof covers, 120pcs stickers, mounting brackets, and a 20ft wiring harness. Max power:1200~2400W.Temperature range:-40~221°F. 3 years warranty by Auxbeam.
| Color | RGB Switch Panel |
|---|---|
| Model | AC-1200 |
| Wattage | 2400 watts |
| Terminal | Screw |
| Brand Name | Auxbeam |
| Unit Count | 1.0 Count |
| Switch Type | Multifunctional |
| Circuit Type | 12-way |
| Contact Type | Panel Control/App Control/Remote Control |
| Manufacturer | Auxbeam |
| Actuator Type | Toggle |
| Material Type | Aluminum |
| Mounting Type | Panel Mount |
| Connector Type | Panel Control/App Control/Remote Control |
| Control Method | App, Push Button, Remote |
| Current Rating | 100 Amps |
| Operation Mode | ON-OFF |
| Controller Type | MULTIFUNCTIONAL RGB CONTROLLER |
| Item Dimensions | 5.5 x 4 x 0.55 inches |
| Number of Items | 1 |
| Contact Material | Aluminum |
| Operating Voltage | 24 Volts (DC) |
| Specification Met | FCC |
| Included Components | switch panel,circuit control box,breaker,waterproof cover,label,mounting bracket |
| Number of Positions | 1 |
| Warranty Description | 3 years warranty by Auxbeam. |
| Connectivity Protocol | Bluetooth |
| Upper Temperature Rating | 221 Degrees Fahrenheit |
| International Protection Rating | IP65 |
