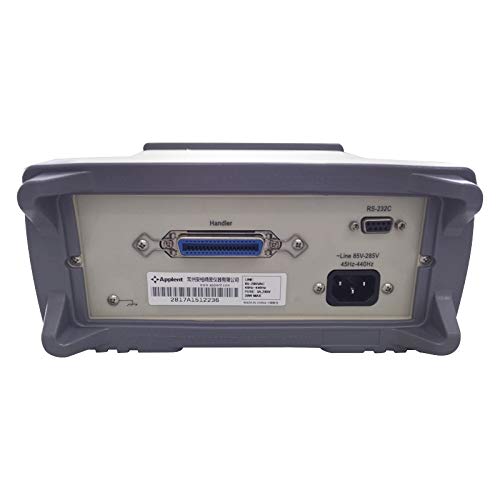

AT2817A High Performance Digital LCR Meter 50Hz-100kHz with 16 Frequency Points

AT2817A improved Handler interface which can meet more requirements of different sorting machine. The update version adopts big font display. Economic 100K digital LCR meter, the newest design, easy to operate. AT2817A Digital LCR Meter PROMOTION AT817D Digital LCR Meter ParametersCs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,G-B,R-X,Z-θrad,Z-θdegL-Q, C-D, R-Q, Z-Q, Monitor ParametersZ, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ% Accuracy0.05% ±5 dgt0.1% Frequency AT2817A: 50Hz-100kHz（16 points） 50Hz-100kHz (10 points) Display RangeL:0.00001H-999999H C:0.00001pF-999999F R,Z: 0.00001-99.9999M D,0.00001–9.99999 Q:0.00001–99999.9%:-999999%-999999% (deg):-179.999 -179.999 (rad): -3.14159–3.14159 L: 0.0001μH - 99999H C: 0.0001pF - 99999μF R,Z: 0.0001Ω - 99.999MΩ Q: 0.00001 - 99999 Δ%: -99999% - 99999% D: 0.0001 ～ 9.9999 Source Resistance30Ω, 50Ω, 100Ω Range9 ranges Automatic, Manual, Nominal Display Maxprinciple parameter: 999999; sub parameter: 999999principle parameter: 99999; sub parameter: 99999 Signal Level0.01V - 2.00V (10mV Step)0.1V, 0.3V, 1.0V Speed30 t/s, 10 t/s, 6 t/s, 3 t/s 1~256 times average3 t/s Comparator14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG1 group to save, 5-bin sorting AdjustmentOpen/Short sweep frequency correction, 3 point frequency and load correction Files10 group files to save users' setting, 1 group system data save real-time1 group to save system data real-time InterfaceRS232C, ExHandler Interface, with standard USB disc interface (article 10000 data)None OthersLCR automatic selection, TFT true color LCD displayVFD display GENERAL FEATURES Power SupplyVoltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Power: Max 20VAVoltage: 198V AC - 250V AC Frequency: 50Hz Power: Max 15VA Size264mm(Width)x107mm(Height)x350mm (Depth); 4kg ORDERING INFORMATION AccessoriesATL501A: Kelvin Test clip ATL601: Test fixture ATL600: Short-ci

• ESR tester, bench type LCR meter, capacitance meter, resistance meter, inductance meter
