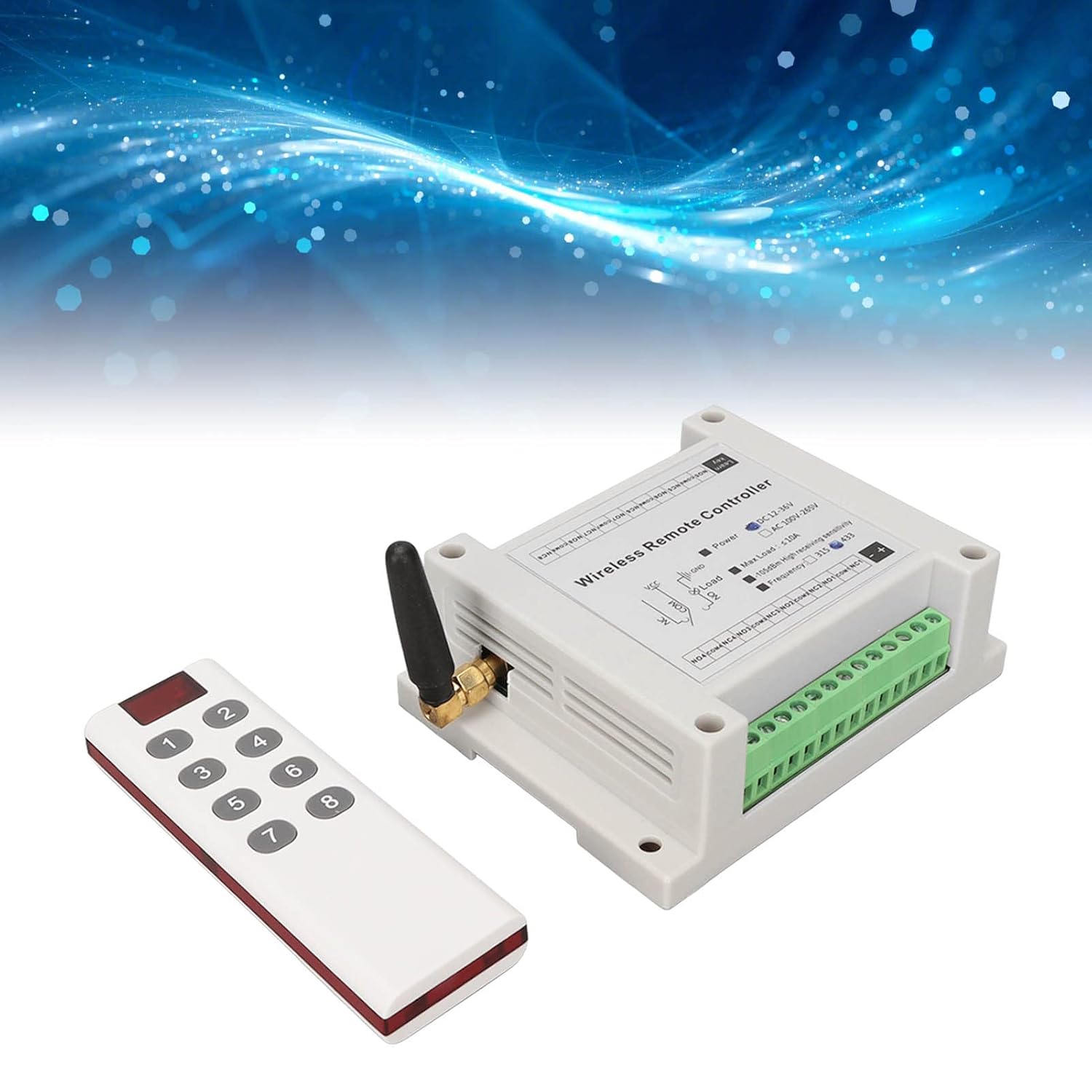

8 Channel Remote Control Relay, DC12V/36V Remote Control Switch Module 10A Relay Board for Industrial Automation, Farms, Ranches, Vehicles

Specification: Item Type: 8 Channel Relay Material: ABS Working Voltage: DC12V-36V Current: Standby Less Than 10mA Working Temperature: -40℃, 80℃ Receiver Frequency: 433MHZ Receiving Sensitivity: -105dBm Communication Distance: Approx. 100-150m / 328.1-492.1ft Maximum Load: 10A Relay, Resistive Load Less Than 8A, Inductive Load Less Than 3A Remote Control Battery: 1 x 23A Battery (Not Included) Package List: 1 x 8 Channel Relay 1 x Remote Control Note: 1. Learning mode and steps 1. Press the learning of the receiver, the buzzer keeps beeping to indicate the learning state. 2. Press the Relative of the transmitter to learn the relative output mode, when the buzzer beeps Be Be Be 3 times to indicate successful learning, then press the transmitter to hear the sound of relay action. If you do not have any within 32 seconds, the receiver will automatically exit the learning state. 2. Delete the memory information (the code must be cleared before learning different buttons) Press and hold the learning of the receiver, the buzzer will beep and emit Be Be Be Be (please don't wait for Be Be 6 sounds) and then release the to indicate the success of deleting the memory information.

• SCOPE OF APPLICATION: 8 channel relay can be used for industrial automation, agricultural automation and home automation, such as factories, houses, farms, ranches, vehicles, ships, marine operations, flying machines, live calls, etc.
• REMOTE CONTROL: 8 channel relay module can remotely control various devices such as remote control lights, sirens, locks, motors, fans, linear actuators, solenoid valves, security alarms, commercial signs, etc. For equipment on land and water.
• EASY INSTALLATION: 8 channel relay board is control and easy to install. RF can pass through wall, floors, doors or window. You can use two or more units in the same place, satisfy your various needs.
• STABLE PERFORMANCE: 8CH 10A relay features high confidentiality, stable performance, low power consumption, and can be jumpered or dipswitch coded. One or more transmitters can control one or more receivers at the same time.
• REMOTE CONTROL ON OR OFF: You can use the transmitter (remote control) to turn the receiver on or off from anywhere within a distance. The receiver only works with transmitters that use the same code.
