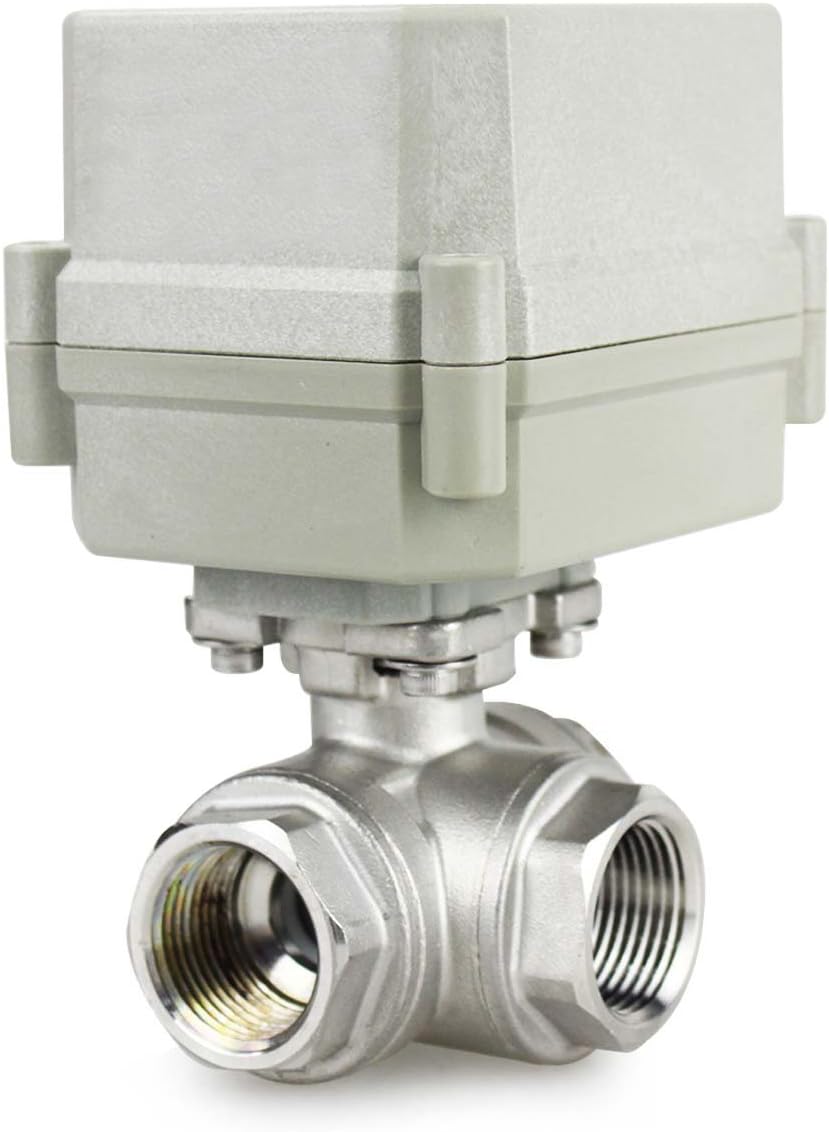

3 Way 1/2" 110-230VAC L Type CF8(Stainless) Electrical On/Off Motorized Ball Valve (CR4-01)

Actuator Design is Capacitor Return, Will Require Connect Power Time No Less Than 2min For Charge Capacitor Each Cycle Time; Technical Parameter: ◎Model: T15-S3-C; ◎Voltage:110-230 VAC Both 50 and 60Hz; ◎Body Material: CF8(Stainless 304,Lead Free); ◎Open/Closed Time: Less Than 15 sec.; ◎Suitable Media: Air, Water, Oil; ◎Power: Max 2 Watts; ◎Working Current: Max 500Ma When Action; ◎Inlet/Outlet Ports: 1/2" Female NPT Threads; ◎Max. Torque Force: 10 N.M; ◎Cables Length: 0.5 Meters; ◎Max Working Pressure: 218PSI; ◎Liquid Temperature: -5°~120° in Celsius; ◎Manual Override: No ◎Indicator: Yes Application:◎HVAC;◎Water Treatment;◎Chemical Process;◎Small Industrial Equipment For Automatic Control;◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably;◎Automatic Control Systems;◎Efficient Water-Saving, Water Equipment;◎Solar Hot Water Project;◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air Compressor.Features: ◎Smart Shape, Perform Reliably, Large Output Torque, As Long As 50000-100000 Times , Convenience For All Kinds Of Requirements;◎Float Ball design, No Leak, Large Flow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for Heavy Dirt and Long Time No Action;◎The Conditions That Solenoid Valve Can Not Be Worked;◎High Protection Class, Can Be Worked In Most Conditions;◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The Reliability of The Gear;◎Electrical and Mechanical Limit Integrated Design, Accurate Localization ,High consistency , Put an End to Swing of Valve.

• ◎Wide Range Working Voltage Design, Will Working At Voltage From 110-240Volt AC, Including 115V/120V/220V/240VAC;
• ◎Limit Switches Built-In, Auto Cut Off Current When Arrived At Place(0Ma When Fully Open or Fully Closed),Saving And Long Life;
• ◎Four Wires Control, Power to Open And Power To Closed Base on Requirement,It Will Remain in The Current Position When Power Off/Failed.
• ◎2 Way 1/2" NPT Reduce Bore 12mm(0.59in),218PSI Maximum Working Pressure Stainless Steel Lead Free Valve Body, Suitable For Portable Water;
