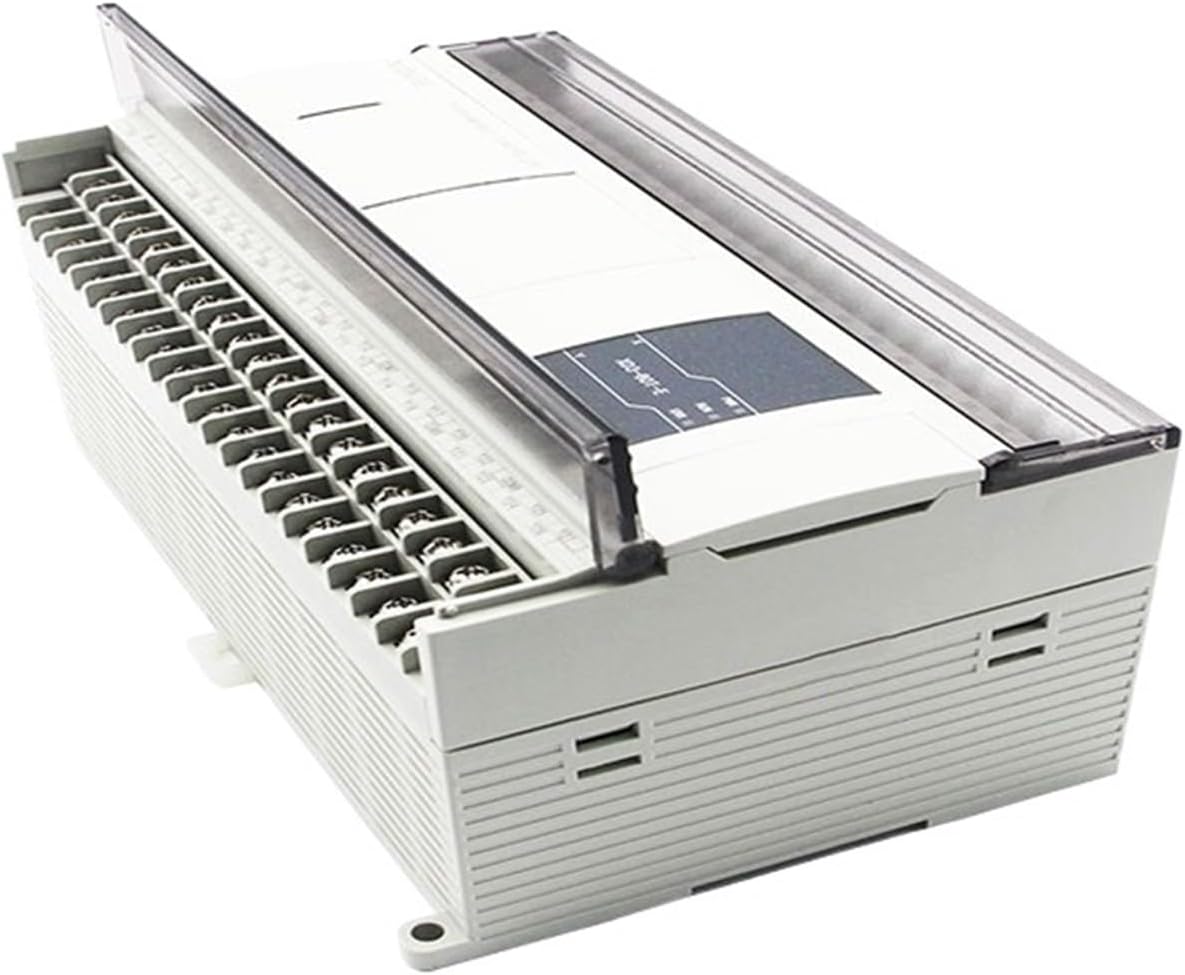

1Pcs XD3-16R-E XC-E8X XC-E8YR XC XD Series Industrial USB RS232 RS485 Programmable Logic Controller for(XD3-16R-E)

Process ControllersProduct Name : XD3-16R-E XD3-24R-E XD3-32R-E XD3-48R-E XD3-60-E Programmable Logic Controller If you need transistor output.Features(1) XD3 series standard , including 16, 24, 32, 48 and 60 points models.(2) It has complete functions and can meet the needs of most users.(3) The speed and capacity are greatly improved compared with XC series(4) Input type: NPN(5) Power specification: AC220V(6) Support X-NET fieldbus function(7) Support high-speed counting (up to 80kHz), pulse output (up to 100kHz), frequency measurement and other special functions(8)Standard USB port for programming download(9) Support 1 ~ 10 expansion modules, 1 expansion ed and 1 ~ 2 expansion BD (Note : XD3-16R-E are not supported)Note: The XC series has been discontinued, and XD is an upgraded version of XC(1) XD communication is more convenient than XC(2) Faster download speed(3) Fast running speed(4) USB direct insertion(5) HD/HM does not require memory to maintain power failure(6) Timer doesn't need to remember either(7) Oscilloscope function(8) When programming, annotations can be made using shortcut keys, C language, etc...Dowload :XD/XL series basic units can work with many kinds of peripheral devices.In the programming software, it can write or upload programs to , monitor the operation of in real time, configure and other functions. After the programming software " programming tool software" is installed on the personal PC, the connection between and programming software can be realized by using USB download cable or programming cable through the USB port, COM0, COM1 port or RJ45 port of the basic unit. Please use the special download cable for provided by Company, or you can make your own cable. Program Interface
