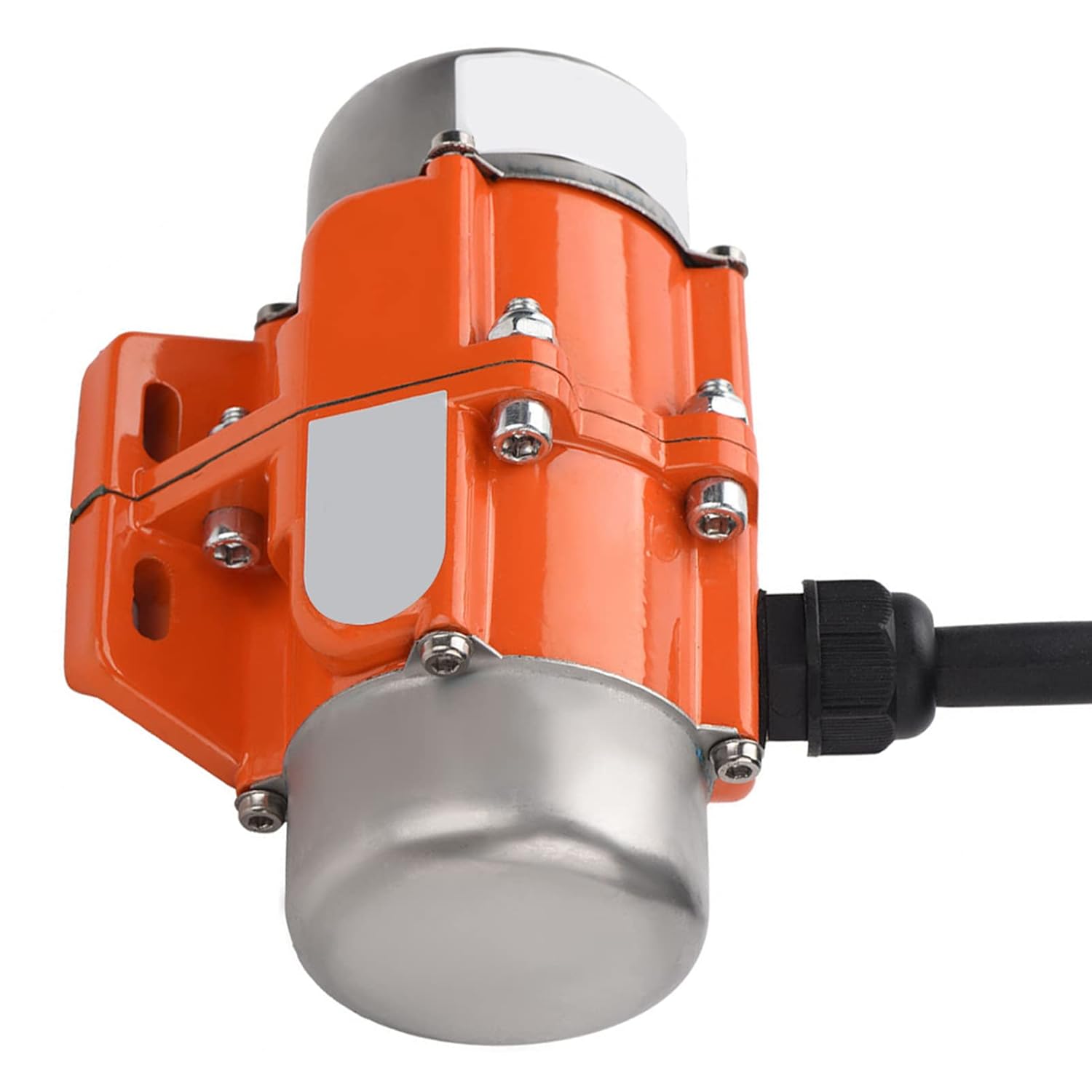

1PCS 1/3 Phase Vibrator Motor, vibrationsmotor 230v Vibration Motor 220V/380V 3000 RPM Asynchronous Adjustable Eccentricity Block Aluminum Alloy Shell(Single Phase 30W)(Single Phase 30W)
Product details
| Management number | 210006824 | Release Date | 2026/04/02 | List Price | $26.12 | Model Number | 210006824 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Name: Vibrator Motor Rated speed: 3000 RPM Rated voltage: single-phase 220V, three-phase 380V Type: 1 phase 30W, 3 phase30W, 1 phase 40W, 3 phase 40W, 1 phase 50W, 3 phase50W, 1 phase 60W, 3 phase 60W, 1 phase 70W, 3 phase 70W, 1 phase 80W, 3 phase 80W, 1 phase 90W, 3 phase 90W, 1 phase 100W, 3 phase 100W(Optional) Size: 30w-40w: 15 x 11cm / 5.91 x 4.33in, 50w-100w: 17.7 x 11cm / 6.97 x 4.33in Weight: approx. 1792-2400g Wiring method: 1 phase: Green and yellow wire: ground wire, the other two wire: one connect neutral live, one connect live wire (arbitrarily) 3 phase: three wire can be connected to ground /neutral / live wire at random Package included: 1 x Vibrator Motor
- Adjustable eccentricity block: adjust the Angle of eccentricity block, can stepless adjust the excitation force , meet all kinds of requirements
- The junction box is sealed with resin adhesive, with good waterproof and insulation performance.
- Adopt of imported bearings, low noise, smooth operation, long service life
- High temperature pure copper enameled wire, all copper winding, stator vacuum dip paint, guarantee insulation grade
- Aluminum alloy shell, light quality, fast heat dissipation, fast temperature rise
| Speed | 3000 RPM |
|---|---|
| Voltage | 380 Volts |
| Brand Name | Odorkle |
| Manufacturer | Odorkle |
| Material Type | Aluminum |
