16S 5A 12S 14S Active Equalizer 13S 15S Whole Group Balancer Lifepo4 Lipo Lto Lithium Active Battery Energy Transfer Equalization Capacitor
Product details
| Management number | 209121336 | Release Date | 2026/03/29 | List Price | $20.00 | Model Number | 209121336 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

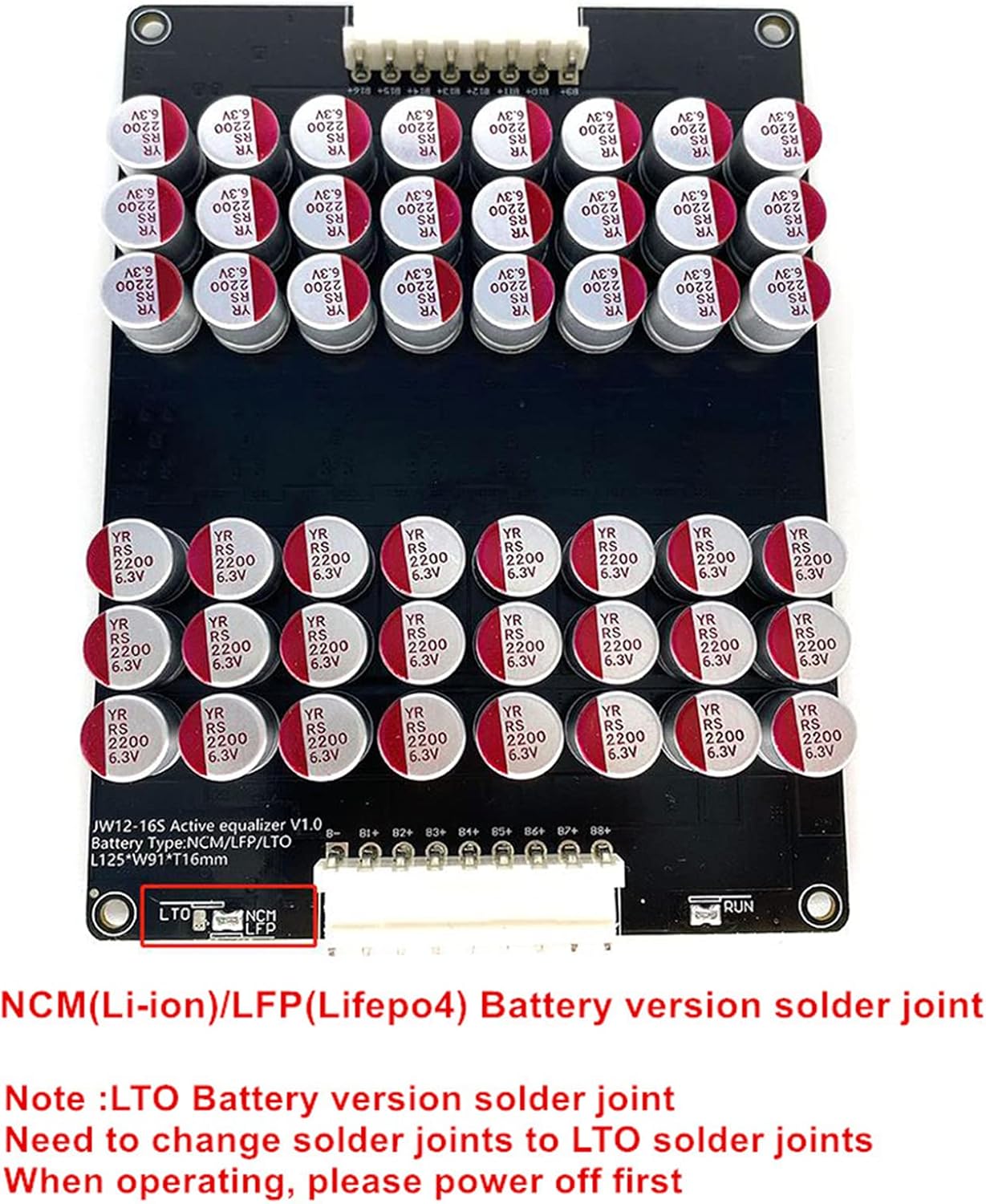

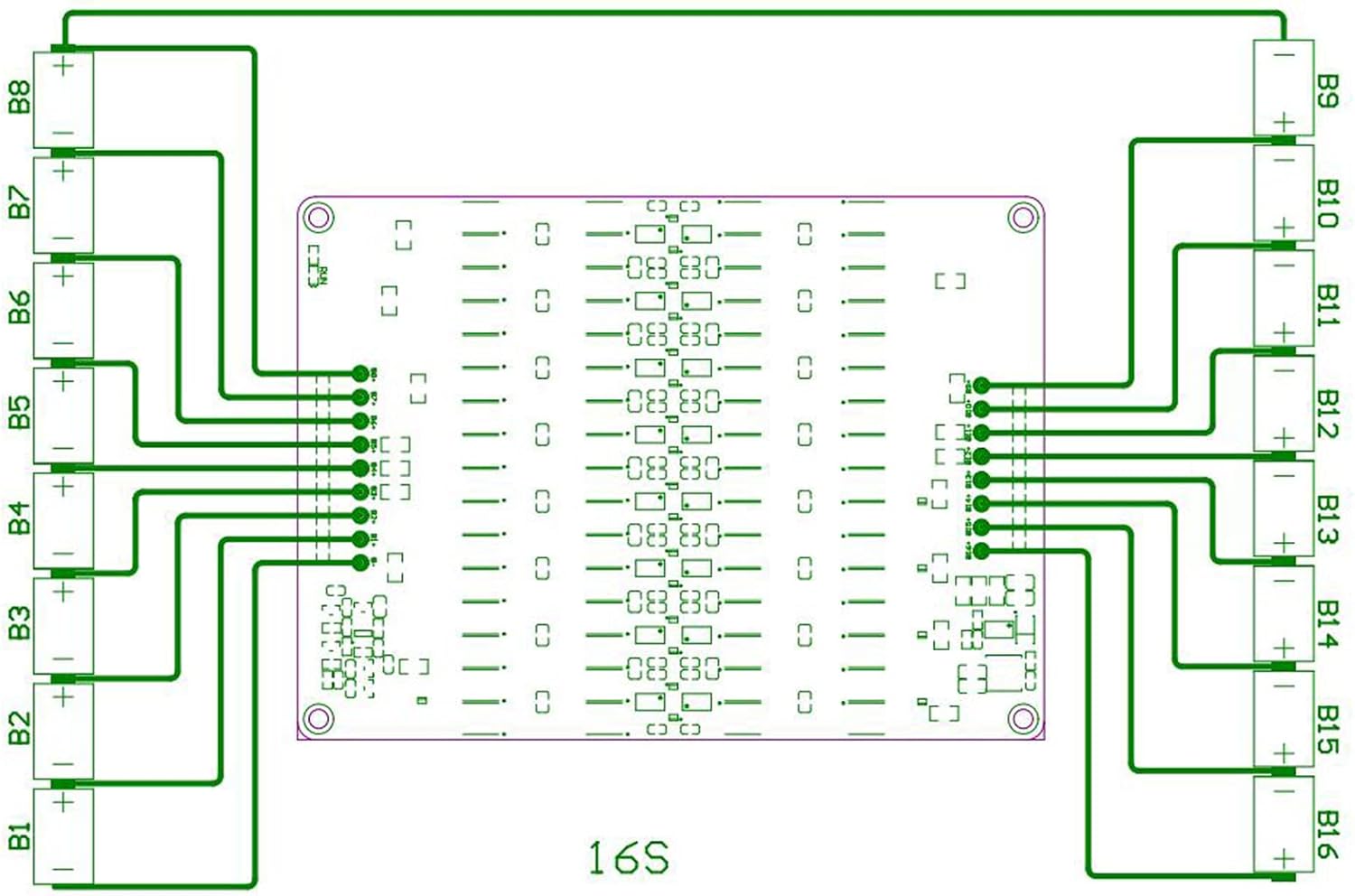

- [Product Information]: Before connecting the equalization board, check whether each piece of wiring is correct, insulation between the bottom board and the battery connection terminals is required to prevent burnout.Model:12S-16S Suitable : Lithium Iron Phosphate, NCM Ternary Polymer,Lithium Titanate, Voltage is 1.8 V-4.5V,Suggest Battery Capacity: 60-300AH.
- [Capacitance Principle]: No external power supply is required,The working principle is Capacitor fit transfers the charge transporter, use the internal energy transfer of the battery to transfer and balance the entire battery pack.the equalization board can be connected to the battery to start the equalization work.
- [Protection switch]: With sleep protection, when the voltage is lower than 3V, it will automatically stop and enter the sleep state to reduce the damage to the battery.
- [Original Design]:using the original ultra-low internal resistance MOS, 2OZ copper thickness PCB, equalizing current 0-5.5A, The more balanced the battery, the lower the current.
- [Satisfactory Service]: We Provide 24-hour online service,If you encounter any problems, Please email SELLER SUPPORT (Not Amazon support), we will give you a perfect solution.
