10A 220V Module 50 60HZ Automatic Power Transfer Switch for Household Appliances Refrigerator Fish Tank Air Conditioner (1 PCS 110V 220V 30A)

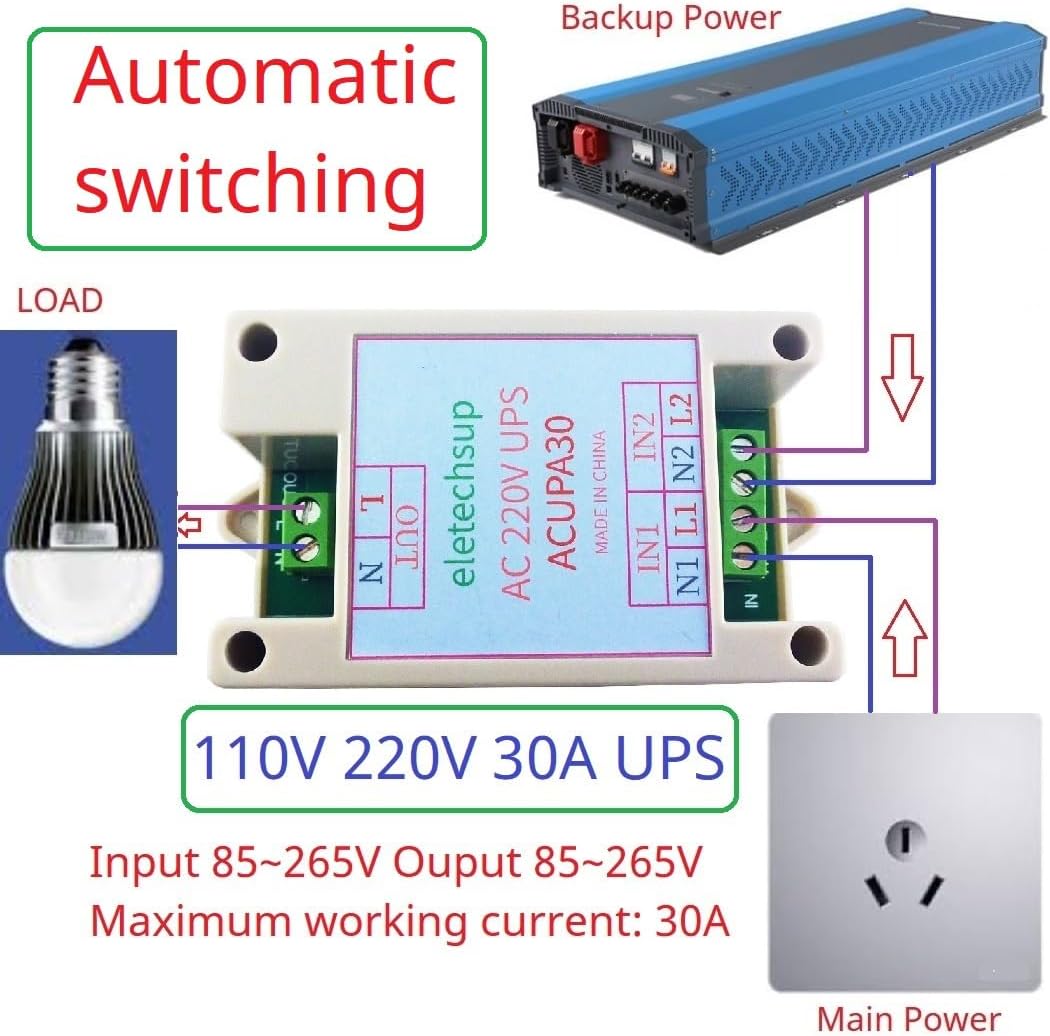

Product Name : 30A AC 110V 120 220V UPS Module 50 60HZ Automatic Switching Backup Power Supply Board Power Failure Automatic Transfer SwitchPacking list: 1PCS / 5PCSACUPS22/ACUPA30 220V 10A/30A UPS Module(Specific according to the version and quantity you choose)Description:ACUPS22 220V 10A UPS :Input voltage : AC 180-265V /50-60HZOutput voltage : Equal to the input voltageMaximum load current : 10APower off switching time: 200-300MSOperating ambient temperature : -40° to +85°Storage temperature : -65° to +125°Size: 50*34*22MMWeight :31gACUPA30 110V 220V 30A UPS :Input voltage : AC 85-265V /50-60HZOutput voltage : Equal to the input voltageMaximum load current : 30APower off switching time: 200-300MSOperating ambient temperature : -40° to +85°Storage temperature : -65° to +125°Size: 80*50*31MMWeight :84gPin Description:N1: Main Power Neutral WireL1: Main Uower Live WireN2: Backup Power Neutral WireL2: Backup Power Live WireN: Output Power Neutral WireL: Output Power Live WireWorking Principle:When the main power supply is powered on, the main power supply supplies power to the load;When the main power supply fails, the backup power supply supplies power to the load.Applications:WIFI router network equipment uninterrupted power supplyUninterrupted power supply for industrial equipment such as PLC/HMI/industrial control hostSolar battery DiyRV Backup Power Supply DiyComputer router room backup power supply equipmentRural orchard backup power equipment

• When the main power supply is powered on, the main power supply supplies power to the load;
• When the main power supply fails, the backup power supply supplies power to the load.
• WIFI router network equipment uninterrupted power supply
• Uninterrupted power supply for industrial equipment such as PLC/HMI/industrial control host
